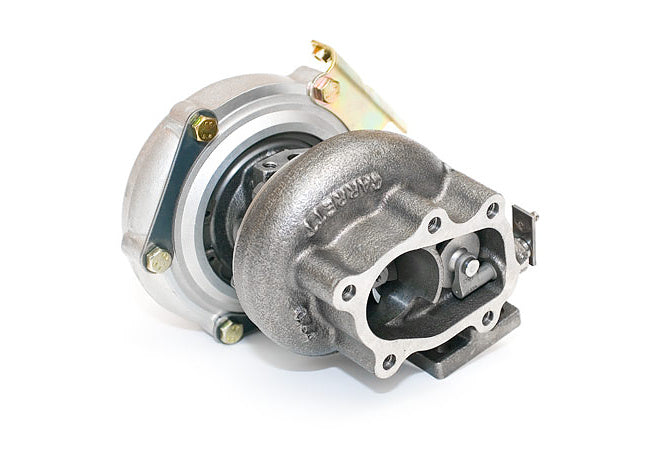

GARRETT 836026-5011S Turbocharger GT2860R 0.64 TRIM 76 w/o Actuator Photo-0

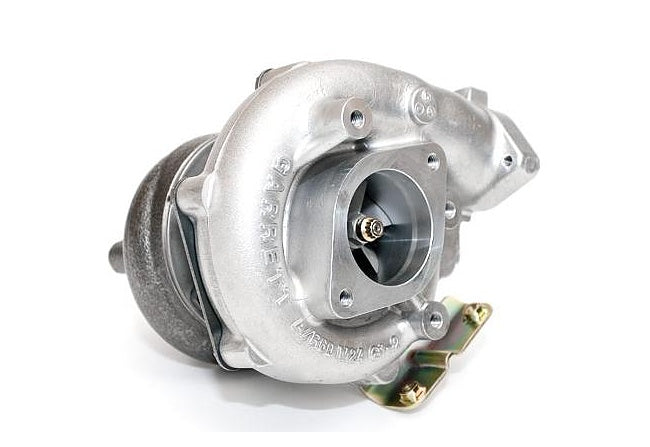

GARRETT 836026-5011S Turbocharger GT2860R 0.64 TRIM 76 w/o Actuator Photo-1

GARRETT 836026-5011S Turbocharger GT2860R 0.64 TRIM 76 w/o Actuator

€1.270,92

VAT included. Shipping calculated at checkout

GARRETT P/N: 836026-5011S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 836026-5011S Turbocharger GT2860R 0.64 TRIM 76 w/o Actuator

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995



Ball bearing.
Oil & Water cooled bearign system.
Direct replacement upgrade turbocharger for GT2560R - 466541-0001 & GT2560R - 466541-0004 used on Nissan SR20DET engine
Upgrade turbocharger for GT2860RS - 739548-0001; turbine stage outline interchangeable.
Provide better boost response than GT2871R - 743347-0001 & GT2871R - 743347-0002 turbochargers.
T25 turbine inlet flange.
Great size for applications with packing constrains.
Ideal for smaller displacement engines making up to 460 Hp.
Turbine housing option available.
Actuator not include.
HORSEPOWER 280HP - 460HP
DISPLACEMENT 1.8L - 2.7L

Turbo Part Number Model Turbine side Compressor side
New Part Old Part O.D.mm I.D.mm TRIM A/R O.D.mm I.D.mm TRIM A/R
836026-5011S 472560-5015S GT2871R 53.8 47.0 76 .64 71.0 51.2 52 .60




C.H.R.A. Part Number
New Part CHRA Old Part CHRA
835998-5009S 446179-5067S

Applicable Garrett P/N's:
TBO -  472560-0015
            472560-15
CHRA - 446179-0067
