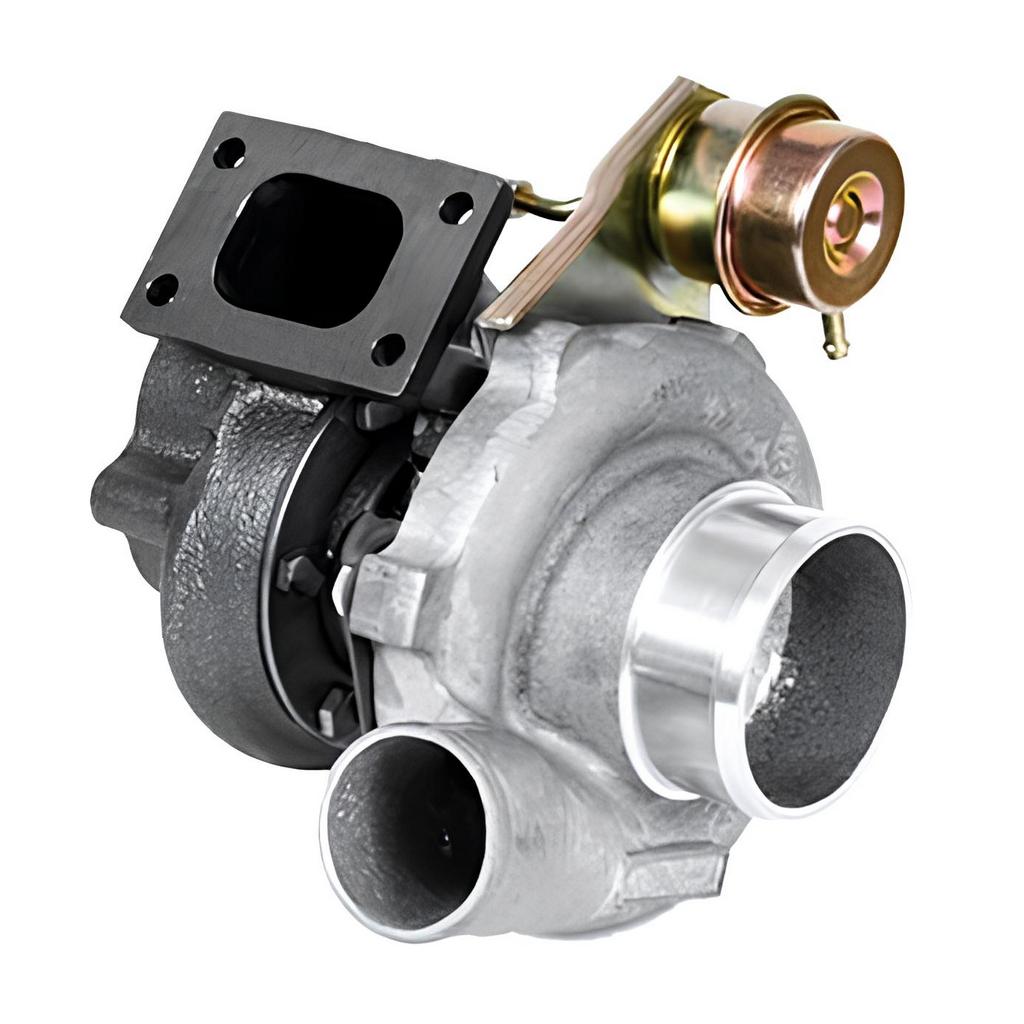

GARRETT 836026-5013S Turbocharger GT2860RS 0.86 A/R, T25 / 5-bolt, Internal Wastegate Photo-0

GARRETT 836026-5013S Turbocharger GT2860RS 0.86 A/R, T25 / 5-bolt, Internal Wastegate

€1.084,09

VAT included. Shipping calculated at checkout

GARRETT P/N: 836026-5013S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 836026-5013S Turbocharger GT2860RS 0.86 A/R, T25 / 5-bolt, Internal Wastegate

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description GARRETT 836026-5013S Turbocharger GT2860RS 0.86 A/R, T25 / 5-bolt, Internal Wastegate

The Garrett GT2860RS turbocharger is designed for performance street and motorsport applications that need responsive boost delivery and proven GT-Series hardware.

It suits balanced street and track setups that need proven GT-Series flow with stable internal wastegate control. This version uses a 0.86 A/R turbine housing with an internal wastegate, and it combines ball bearing support with a water-cooled chra for dependable operation.

  • Model: GT2860RS
  • Part Number: 836026-5013S
  • Turbo Type: Turbocharger
  • Bearing Type: Ball Bearing
  • Horsepower Rating: 250-360 HP
  • Displacement Range: 1.8L-3.0L
  • Turbine Housing: 0.86 A/R
  • Turbine Inlet: T25
  • Outlet Flange: 5-Bolt
  • Wastegate: Internal
  • Compressor Wheel: 47mm inducer / 60mm exducer
  • Turbine Wheel: 54mm inducer / 47mm exducer
  • Cooling: Water-Cooled CHRA
