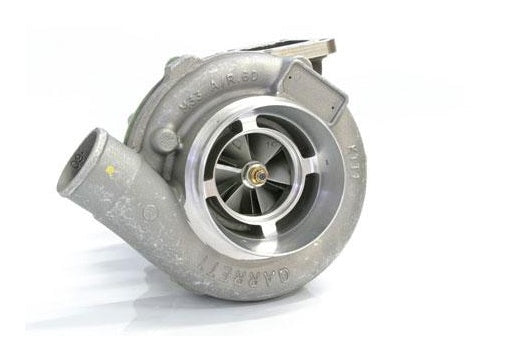

GARRETT 836026-5016S Turbocharger GT2860R (4 GARRETT 80009-6 High Boost Act) Photo-0

GARRETT 836026-5016S Turbocharger GT2860R (4 GARRETT 80009-6 High Boost Act)

€871,08

VAT included. Shipping calculated at checkout

GARRETT P/N: 836026-5016S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 836026-5016S Turbocharger GT2860R (4 GARRETT 80009-6 High Boost Act)

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995
Ball bearing.
Oil & Water cooled bearign system.
Direct replacement upgrade turbocharger for GT2554R (471171-0003) and GT2560R (466541-0001); turbine housing flanges are outline interchangeable.
Uses 480009-0006 actuator.
Great size for applications w/packing constrains.
Ideal for smaller displacement engines making up to 360 Hp.
Turbine housing option available.
Note: The 739548-0010 GT2860R is a customizable Garrett ball bearing GT turbo that is packaged without the turbine housing. (It includes a CHRA and compressor housing.)

Turbo Part Number Model Turbine side Compressor side
New Part Old Part O.D.mm I.D.mm TRIM A/R O.D.mm I.D.mm TRIM A/R
836026-5016S 739548-5010S GT2860R 53.8 47.0 76 w/t 60.0 47.2 62 .60

Applicable Garrett P/N's:
TBO -  739548-0010
CHRA - 446179-0066

C.H.R.A. Part Number
New Part CHRA Old Part CHRA
835998-5007S 446179-5066S
