GARRETT 836026-5020S Turbocharger GT2871R 8mm BB Upgrade 0.86 A/R Photo-0

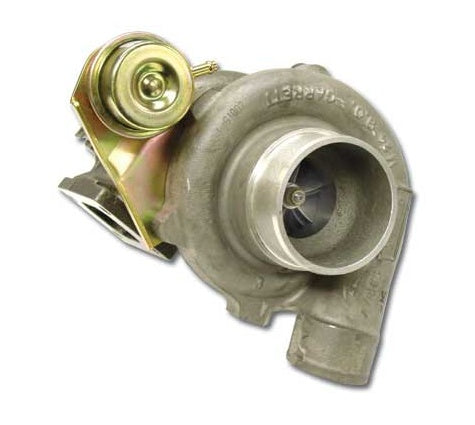

GARRETT 836026-5020S Turbocharger GT2871R 8mm BB Upgrade 0.86 A/R

€1.322,09

VAT included. Shipping calculated at checkout

GARRETT P/N: 836026-5020S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 836026-5020S Turbocharger GT2871R 8mm BB Upgrade 0.86 A/R

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995
Ball bearing.
Oil & Water cooled bearign system.
Direct replacement upgrade turbocharger for GT2860RS (739548-0001)
Comes as a kit; end housings are not assembled onto CHRA.
T25 turbine inlet flange.
Great size for applications w/packing constrains.
Ideal for smaller displacement engines making up to 400 Hp.
Turbine housing option available.
HORSEPOWER 280HP - 475HP
DISPLACEMENT 1.8L - 3.0L

Turbo Part Number Model Turbine side Compressor side
New Part Old Part O.D.mm I.D.mm TRIM A/R O.D.mm I.D.mm TRIM A/R
836026-5020S 743347-5002S GT2871R 53.8 47.0 76 .86 71.0 53.1 56 .60




C.H.R.A. Part Number
New Part CHRA Old Part CHRA
835998-5010S 446179-5032S

Applicable Garrett P/N's:
TBO -  743347-0002
CHRA - 446179-0032

743347-5001S
743347-5002S
743347-5003S
743347-5004S
743347-5001
743347-5002
743347-5003
743347-5004
743347-1
743347-2
743347-3
743347-4
