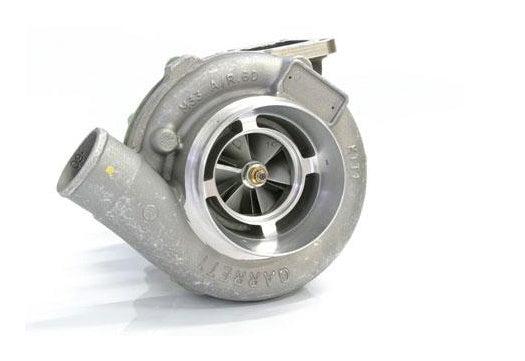

GARRETT 836028-5001S Turbocharger GT3071R w/o Housing Kit
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 836028-5001S Turbocharger GT3071R w/o Housing Kit
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
| Turbo Part Number | Model | Turbine side | Compressor side | |||||||
| New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R | |
| 836028-5001S | GT3071R | 60.0 | 55.0 | 84 | w/t | 71.0 | 53.1 | 56 | .50 | |
| C.H.R.A. Part Number | |
| New Part CHRA | Old Part CHRA |
| 836000-5002S | |
| TURBINE HOUSING OPTIONS (O/V T3 / 4-Bolted ) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0003 | 0.63 | Free Float |
| 740902-0002 | 0.82 | Free Float |
| 740902-0001 | 1.06 | Free Float |
| TURBINE HOUSING OPTIONS (O/V T3 / V-Band) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0009 | 0.63 | Free Float |
| 740902-0008 | 0.82 | Free Float |
| 740902-0007 | 1.06 | Free Float |
| TURBINE HOUSING OPTIONS Hi Sil (O/V T4 / V-Band ) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0015 | 0.63 | Free Float |
| 740902-0014 | 0.82 | Free Float |
| 740902-0013 | 1.06 | Free Float |
| TURBINE HOUSING OPTIONS Ni-Resist ( Div V-Band / V-Band) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0024 | 0.61 | Free Float |
| 740902-0023 | 0.83 | Free Float |
| 740902-0022 | 1.01 | Free Float |
| TURBINE HOUSING OPTIONS Ni-Resist ( Div T3 / V-Band ) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0030 | 0.61 | Free Float |
| 740902-0029 | 0.83 | Free Float |
| 740902-0028 | 1.01 | Free Float |
| TURBINE HOUSING OPTIONS Ni-Resist ( V-Band / V-Band) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0036 | 0.61 | Free Float |
| 740902-0035 | 0.83 | Free Float |
| 740902-0034 | 1.01 | Free Float |
| TURBINE HOUSING OPTIONS (T3 - 5-BOLTS) | ||
| PART NUMBER | A/R | TYPE |
| 771300-0005 | 0.82 | Wastegated |
