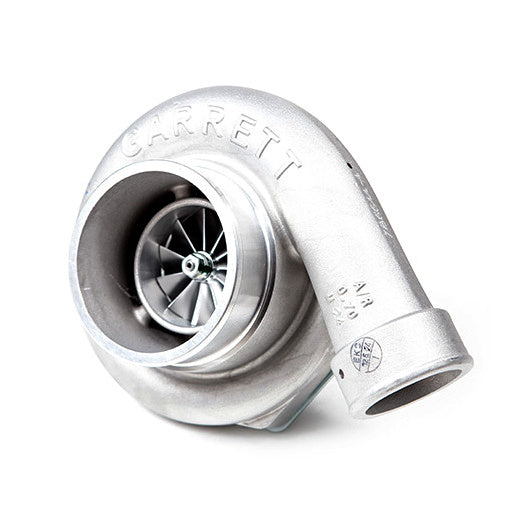

GARRETT 836033-5002S Turbocharger GT3582R w/o Housing Kit
Available for order at Partners Worldwide
Usually ready in 1-2 weeks
updated 19.10.2025
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Pickup available at Kelberg Warehouse
Usually ready in 24 hours
GARRETT 836033-5002S Turbocharger GT3582R w/o Housing Kit
Kelberg Warehouse
Pickup available, usually ready in 24 hours
Auf der Struth 4
53539 Kelberg
Germany
Choose options
Available for order at Partners Worldwide
Usually ready in 1-2 weeks
updated 19.10.2025
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Available for order at Partners Worldwide
Usually ready in 1-2 weeks
updated 19.10.2025
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Ball bearing.
Oil & Water cooled bearign system.
Upgrade turbocharger for GT3071R non-wastegated ball-bearing turbocharger; turbine housing flanges are outline interchangeable
Ideal for medium displacement engines making up to 600 HP
Turbine housing option available.

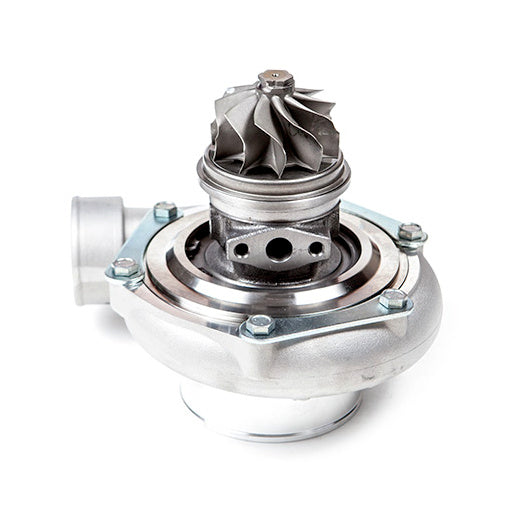

Note: The 836033-5002S GT3582R is a customizable Garrett ball bearing GT turbo that is packaged without the turbine housing. (It includes a CHRA and compressor housing.)
| Turbo Part Number | Model | Turbine side | Compressor side | |||||||
| New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R | |
| 836033-5002S | 815113-5002S | GT3582R | 68.0 | 62.0 | 84 | w/t | 82.0 | 61.4 | 56 | .70 |
HORSEPOWER 400HP - 600HP
DISPLACEMENT 2.0L - 4.5L
| C.H.R.A. Part Number | |
| New Part CHRA | Old Part CHRA |
| 836005-5003S | 706451-5005S |
Applicable Garrett P/N's:
TBO - 815113-0002
CHRA - 706451-0005
| GT35 TURBINE HOUSING OPTIONS | ||
| PART NUMBER | A/R | TYPE |
| 740902-0006 | 0.63 | Free Float |
| 740902-0005 | 0.82 | Free Float |
| 740902-0004 | 1,06 | Free Float |
| TURBINE HOUSING OPTIONS (OUTLET WITH V CLAMP) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0012 | 0.63 | Free Float |
| 740902-0011 | 0.82 | Free Float |
| 740902-0010 | 1,06 | Free Float |
| TURBINE HOUSING OPTIONS - STAINLESS STEEL (V CLAMP) | ||
| PART NUMBER | A/R | TYPE |
| 740902-0021 | 0.61 | Free Float |
| 740902-0020 | 0.83 | Free Float |
| 740902-0019 | 1,01 | Free Float |
| TURBINE HOUSING OPTIONS - HI SIL (T4 - V CLAMP) | ||
| PART NUMBER | A/R | TYPE |
| 774301-0012 | 0.63 | Free Float |
| 774301-0011 | 0.82 | Free Float |
| 774301-0010 | 1,06 | Free Float |
| TURBINE HOUSING OPTIONS (T3 - 5-BOLTS) | ||
| PART NUMBER | A/R | TYPE |
| 771300-0003 | 0.63 | Wastegated |
| 771300-0002 | 0.82 | Wastegated |
