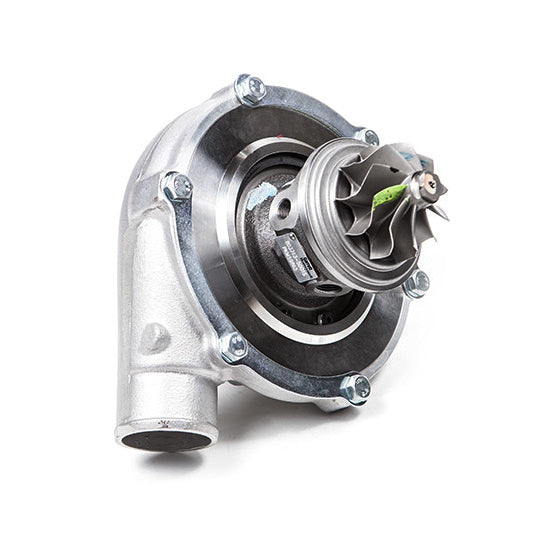

GARRETT 836042-5003S Turbocharger GTX3076R w/o Housing Kit Photo-0

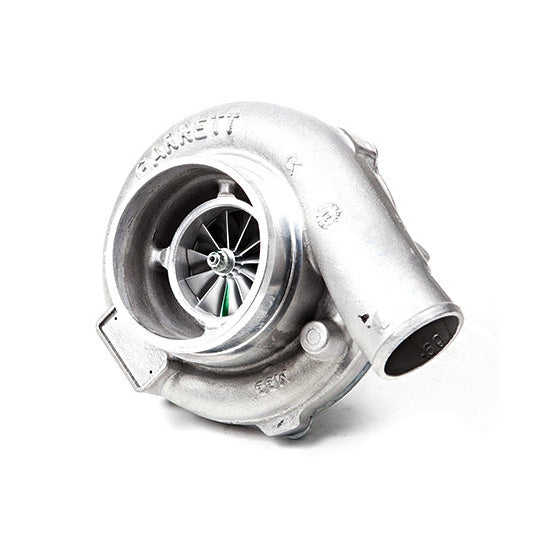

GARRETT 836042-5003S Turbocharger GTX3076R w/o Housing Kit Photo-1

GARRETT 836042-5003S Turbocharger GTX3076R w/o Housing Kit

Sale price€1.893,29

VAT included. Shipping calculated at checkout

GARRETTP/N: 836042-5003S

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Garrett's ball bearing cartridge has proven its worth in the highest level of motorsports where it has been the bearing system of choice in CART FEDEX ChampCar Series, 24 Hours of Le Mans, Pikes Peak International Hill Climb, World Rally Championship, and most recently Drag Racing. These premier racing customers demand no less than the best in durability, reliability, and power on demand. One key contributor to this performance lies in the ball bearing cartridge where it is, by design, surrounded by a thin film of oil. The oil film damps out destructive vibrations that would otherwise compromise turbo durability.

Garrett Turbo Part 836042-5003S
Garrett CHRA Part 836014-5003S
A/R 0.60
O.D. mm 60.0
I.D. mm 55.0
O.D. mm 76.6
I.D. mm 58.0

Horsepower: 360-640
Displacement: 1.8L - 3.0L

- Forged, fully-machined compressor wheel featuring next generation aerodynamics
- Dual ball bearing, oil & water-cooled CHRA
- Ported shroud compressor housing to increase surge resistance
- Oil line interchageable with GT3076R
- GTX3076R is sold without turbine housing, includes CHRA & compressor housing.
- Turbine housing kits are available

Stock Compressor housing is T04E Frame (same as GT3076R) and has 4" inlet and 2" outlet

Grrett info

Turbo Compressor Turbine
Turbo PN CHRA PN Ind Whl Dia(mm) Exd Whl Dia(mm) Trim A/R Whl Dia(mm) Trim A/R
803713-1 700177-42 58.00 76.60 58 0.60 60.00 84 0.00

Options Housing
771300-0004 = 1.06a/r GT30R
771300-0005 = .82a/r GT30R
771300-0006 = .63a/r GT30R

740902-0036    Turbine Hsg Kit O/V V-Band / V-Band 0.61 A/R (Ni-Resist)
740902-0003    Turbine Hsg Kit O/V T3 / Bolted 0.63 A/R
740902-0023    Turbine Hsg Kit Div V-Band / V-Band 0.83 A/R (Ni-Resist)


Applicable Garrett P/N's:

Turbo Part  CHRA Part
803713-5001S 700177-5042S
803713-1 700177-0042
