GARRETT 841691-5001S Turbocharger GTW3476R w/o Housing Kit Photo-0
GARRETT 841691-5001S Turbocharger GTW3476R w/o Housing Kit Photo-1

GARRETT 841691-5001S Turbocharger GTW3476R w/o Housing Kit

€1.261,40

VAT included. Shipping calculated at checkout

GARRETT P/N: 841691-5001S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 841691-5001S Turbocharger GTW3476R w/o Housing Kit

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

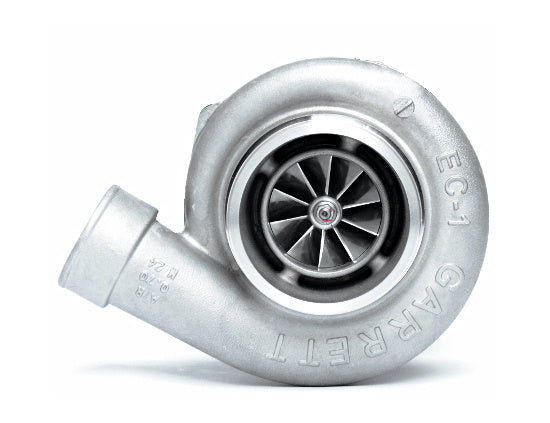

GTW Series - Garrett's performance solution for the popular size turbos. Great performance at competitive prices!

Garrett GTW Features:
Advanced aerodynamic compressor wheel
Forged aluminum compressor wheel
Available in ball bearing or journal bearing CHRA
T3 and T4 turbine housing options
GTW turbo models from 700 to 950+HP!


Turbine side Compressor side
Part  Model C.H.R.A. O.D.mm I.D.mm TRIM O.D.mm I.D.mm TRIM A/R
841691-5001S GTW3476R 757197-5009S 65.0   76 76.4 58.3 58 .70


APPLICATION NOTES:
 NOT a direct drop-in replacement to the small frame Garrett GT or GTX Series turbochargers.
 External dimensions of the GTW Series bearing housing (CHRA) is physically larger (bulkier) than the Garrett GT and GTX series.
 GTW Series Ball Bearing CHRA DOES NOT use the same oil return fittings as the small frame Garrett GT or GTX Series turbochargers.
