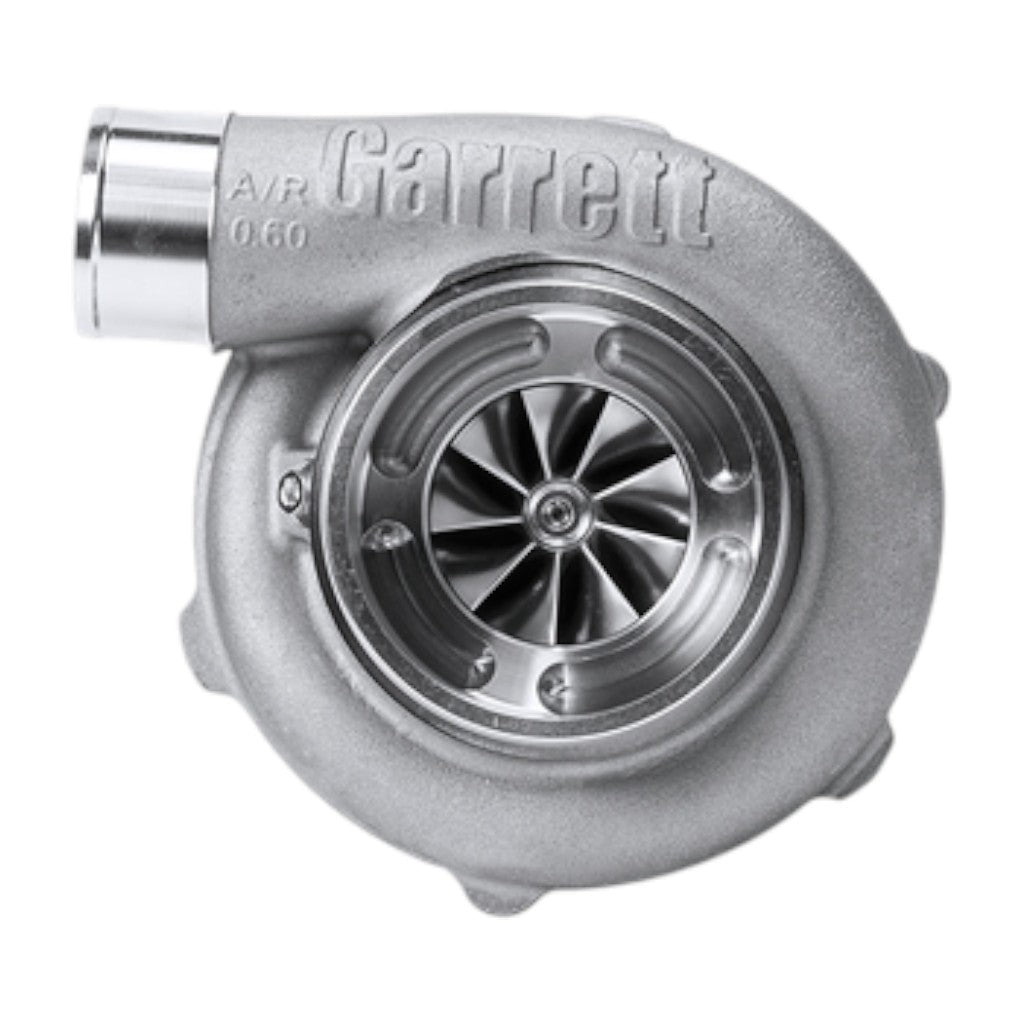

GARRETT 856803-5002S Turbocharger Assembly Kit Gen II 0.83 A/R V-Band / V-Band Reverse Rotation for GARRETT GTX3576R

Description GARRETT 856803-5002S Turbocharger Assembly Kit Gen II 0.83 A/R V-Band / V-Band Reverse Rotation for GARRETT GTX3576R

The GARRETT 856803-5002S GTX3576R Gen II turbocharger assembly kit features a 0.83 A/R V-Band inlet and outlet in a reverse rotation configuration. As part of the GTX Gen II series, it incorporates a redesigned compressor wheel with next-generation aerodynamics, capable of producing up to 20% more horsepower than its predecessor. Developed using Garrett Motion CFD analysis and proprietary simulation technology, the compressor design maximizes efficiency and mass airflow. The 8 mm dual ceramic ball bearing cartridge enhances response, durability, and reliability by reducing shaft motion. A high-flow compressor housing with fully machined inlet, outlet, and ported shroud ensures precision, while an integrated speed sensor port enables advanced data-driven tuning. This unit is outline interchangeable with GT and GTX Gen I products and remains compatible with all existing turbine housing kits.

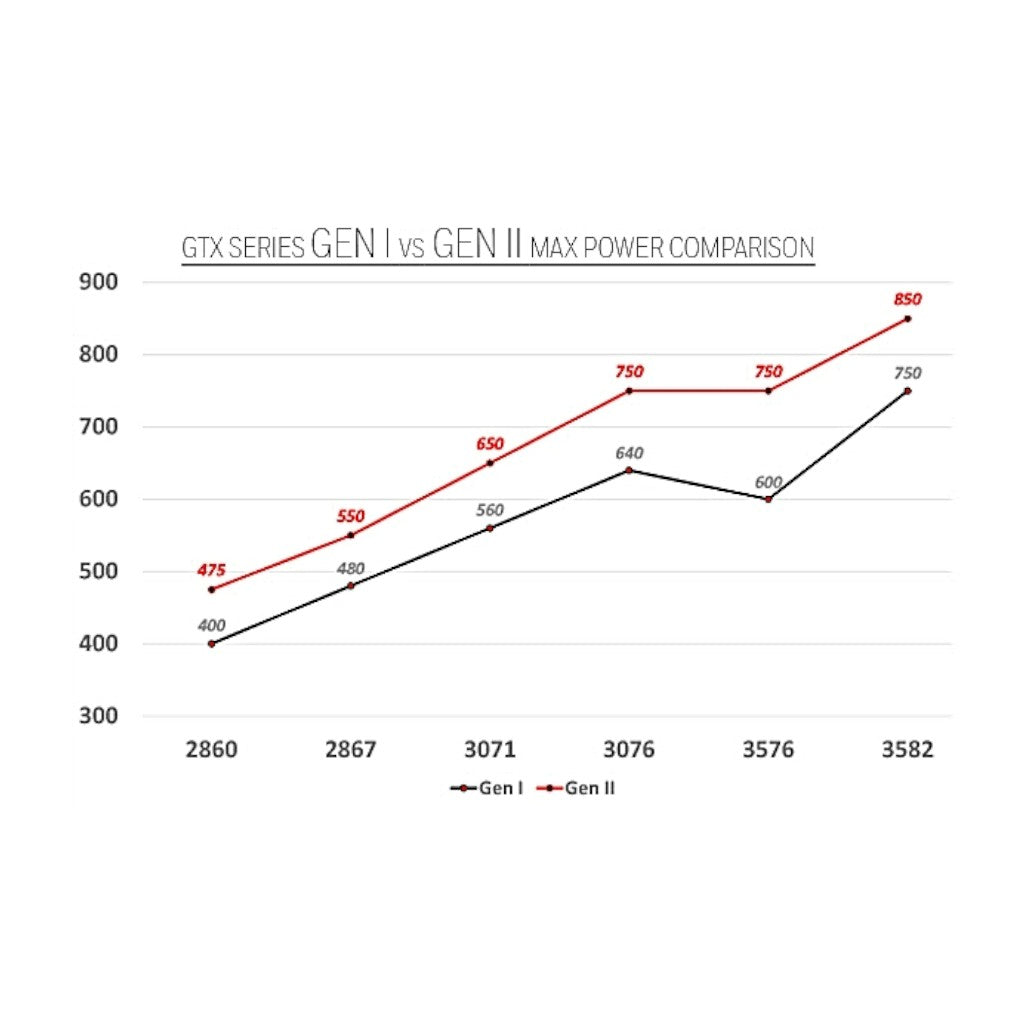

• Gen II compressor wheel with up to 20% more power potential
• 0.83 A/R reverse rotation design with V-Band inlet and outlet
• Dual ceramic ball bearing cartridge for improved reliability
• Fully machined compressor inlet, outlet, and ported shroud
• New high-flow compressor housing with integrated speed sensor port
• Outline interchangeable with GT and GTX Gen I turbos
• Compatible with all GT and GTX turbine housings

Specifications:

• Horsepower Range: 400 – 750
• Displacement Range: 2.0 L – 4.5 L
• Model: GTX3576R Gen II
• Garrett Part Number: 856803-5002S
• A/R: 0.83
• Rotation: Reverse
• Inlet/Outlet: V-Band / V-Band
