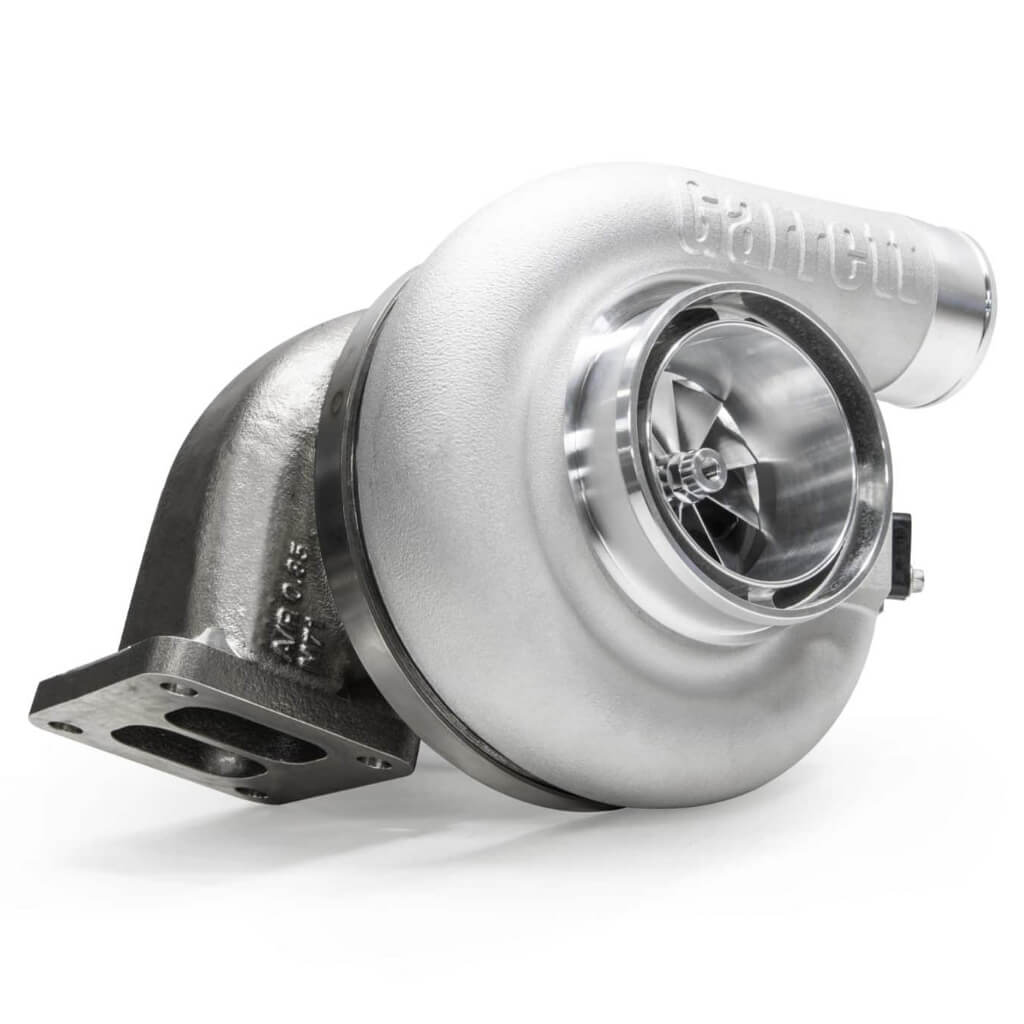

GARRETT 860777-5002S Turbocharger Super Core G40-1150 (w/o Housing Kit)
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 860777-5002S Turbocharger Super Core G40-1150 (w/o Housing Kit)
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Garrett G-series turbochargers feature the latest innovations in turbocharger technology. Compressors and turbines have the highest capacity and aerodynamics available today. Countless engineering hours have been spent to create the perfect blend of efficiency and performance in a compact package.
Features
- G-Series compresser aero increases flow up to 35% (compared to GTX4088R)
- High-Flow compressor housing with integrated easy plug speed sensor port
- Rotation: Standard (Clockwise)
- Dual ceramic ball bearing cartridges
- Includes -4AN oil restrictor fitting with 1mm orifice
- Lightweight aluminium backplate
- Four large water jacket ports
- Twin piston rings at compressor and turbine site
- Inconel turbine wheel with 77m inducer flows up to 43 lbs/min
- G-Series turbine aero increases flow 16% (compared to GTX4088R)
- Water- and Oil cooled
- Compressor side: Inducer 71mm / Exducer 88mm
- Turbine side: Inducer 77mm / Exducer 70mm
