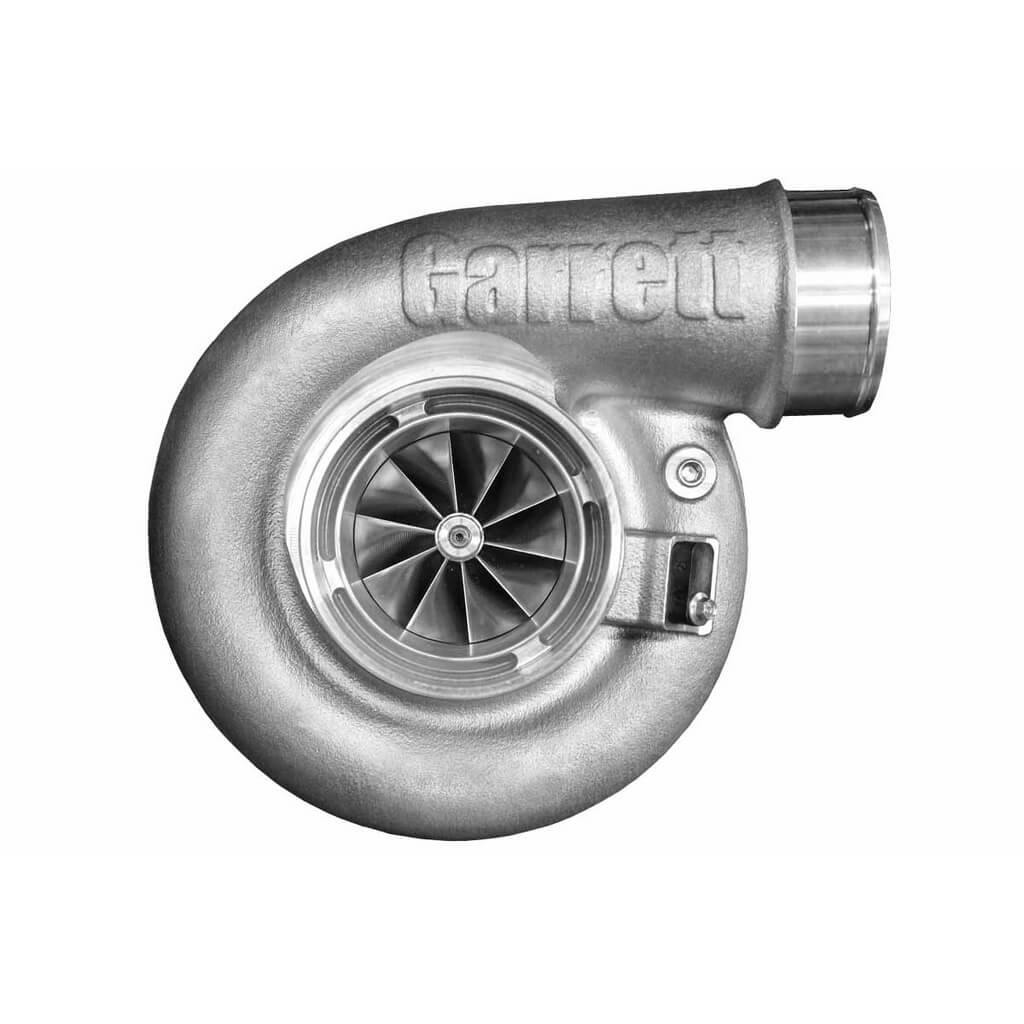

GARRETT 860778-5002S Supercore G42-1200 Compact CHS, Standard Rotation Photo-0

GARRETT 860778-5002S Supercore G42-1200 Compact CHS, Standard Rotation

€2.005,80 €2.359,77

VAT included. Shipping calculated at checkout

GARRETT P/N: 860778-5002S
Only 1 unit left
Quantity:
Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 860778-5002S Supercore G42-1200 Compact CHS, Standard Rotation

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup currently unavailable

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

Description GARRETT 860778-5002S Supercore G42-1200 Compact CHS, Standard Rotation

This compact turbocharger is engineered for high-performance output with minimal space requirements. Featuring premium materials, CFD-optimized aerodynamics, and external wastegate compatibility, it’s ideal for custom and motorsport applications.

Key features

  • CFD-optimized, forged milled compressor wheel
  • High-flow compressor housing with sensor-ready port
  • Standard (clockwise) rotation
  • Dual ceramic ball bearing cartridges
  • Inconel turbine wheel rated to 950C
  • 950C stainless steel turbine housing
  • Four large water jacket ports
  • Twin piston rings on compressor and turbine sides
  • Water- and oil-cooled for thermal efficiency
  • External wastegate configuration
  • Compressor: 73mm inducer / 91mm exducer
  • Turbine: 82mm inducer / 75mm exducer
