GARRETT 860778-5004S Supercore Series G42-1200

€2.469,25

VAT included. Shipping calculated at checkout

GARRETT P/N: 860778-5004S
Available for order at Partners Worldwide Usually ready in 1-2 weeks updated 01.07.2025
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 860778-5004S Supercore Series G42-1200

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

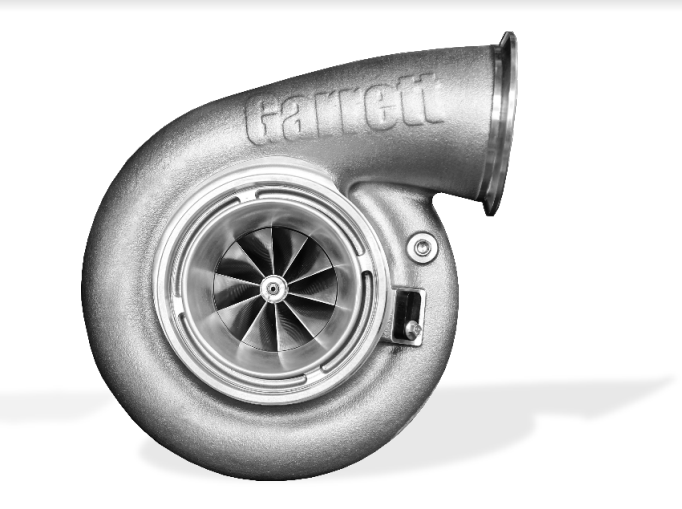

Garrett® G42-1200
Horsepower: 475-1200
Displacement: 2.0L-7.0L

  •  G Series compressor aero (10 blade)
  •  109 Lbs/Min compressor flow
  •  0.85 A/R comp housing
  •  V-band comp outlet 4.2 inch / 107mm (Same as GTX42)
  •  5 inch / 127mm compressor inlet (Same as GTX42)
  •  Water fittings included (-6an fittings *same as G25)
  •  Stainless steel turbine housings rated up to 950 deg C



Technology and Features
Compressor Housing

 Garrett® G42-1200 available with compact housing and standard housing
 Garrett® G42-1450 available only with standard housing

  •  (A) Fully machined ported shroud to help reduce compressor surge.
  •  (B) A fully machined speed sensor port provides racers the option to add a speed sensor. Comparing shaft speed and boost levels on a compressor map will help determine ideal operating conditions to ensure peak power over a wider operating range.
  •  (C ) The fully machined pressure port.




 * Sold separately, the Garrett ® G Series speed sensor kits have new part numbers and are not compatible with GT/GTX kits. Easier to install and will not need to be adjusted for length like previous sensors. Simply remove bolt that secures the plug, insert the speed sensor and re-tighten the bolt.

WARNING: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits.  Please pay attention that maximum allowable turbocharger speed is 165krpm ( G series ) . The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers  781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART MODULE ( Module | Harness | Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void  warranty on product.
