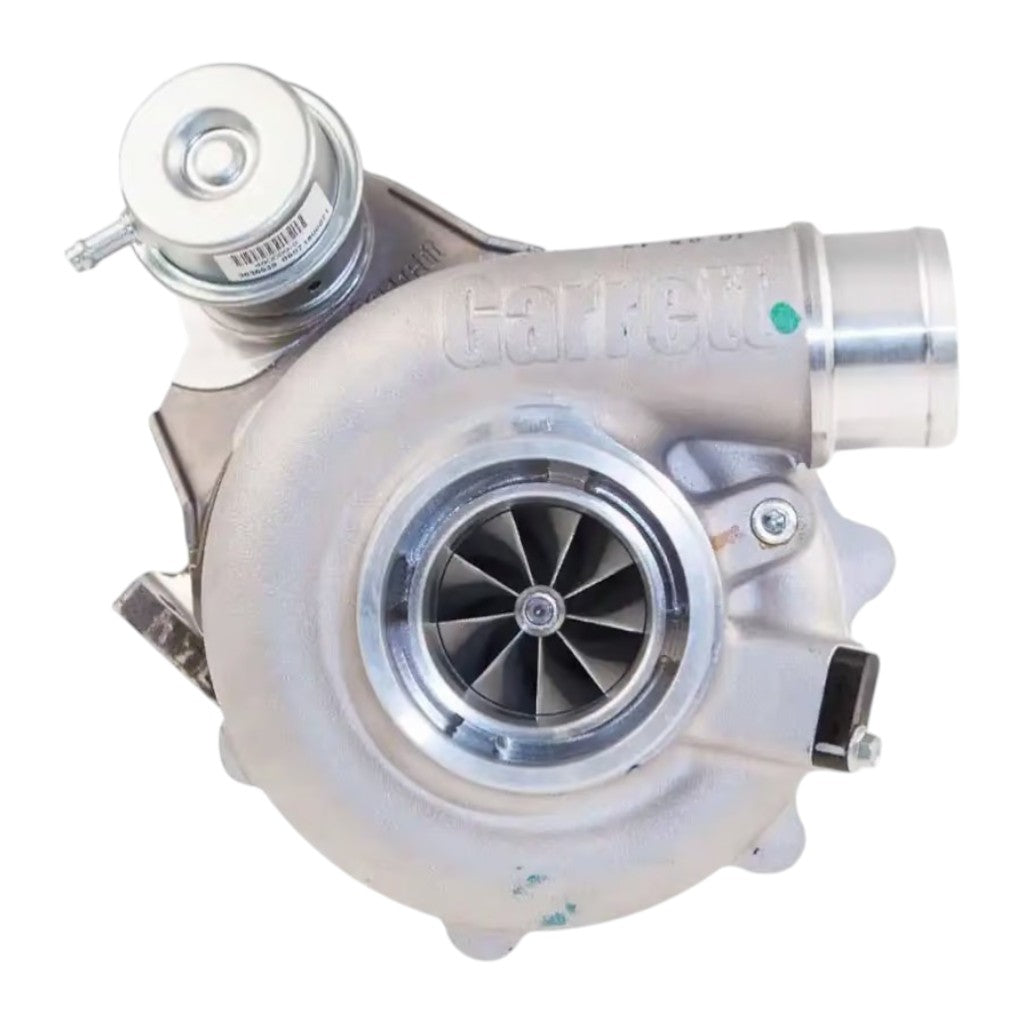

GARRETT 877895-5002S Turbocharger G25-660 0.49 A/R, T25 / V-Band, Internal Wastegate Photo-0

GARRETT 877895-5002S Turbocharger G25-660 0.49 A/R, T25 / V-Band, Internal Wastegate

€2.180,08

VAT included. Shipping calculated at checkout

GARRETT P/N: 877895-5002S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 877895-5002S Turbocharger G25-660 0.49 A/R, T25 / V-Band, Internal Wastegate

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description GARRETT 877895-5002S Turbocharger G25-660 0.49 A/R, T25 / V-Band, Internal Wastegate

The Garrett G25-660 turbocharger is a fully assembled G-Series performance unit designed for fast response, strong flow, and reliable high-boost operation.

This configuration uses an internally wastegated turbine housing and is assembled and calibrated with a 0.5 bar actuator for straightforward installation.

Features

  • Model: G25-660
  • Part Number: 877895-5002S
  • Series: Garrett G-Series
  • Horsepower Rating: Up to 660 HP
  • Displacement Range: 1.4L - 3.0L
  • Comp Inducer: 54mm
  • Comp Exducer: 67mm
  • Turbine Inducer: 54mm
  • Turbine Exducer: 49mm
  • Bearing System: Dual ball bearing
  • Turbine Housing A/R: 0.49
  • Inlet: T25
  • Outlet: V-Band
  • Wastegate: Internal Wastegate
  • Rotation: Standard Rotation
  • Actuator Calibration: 0.5 bar

Warning: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits. Please pay attention that maximum allowable turbocharger speed is 165krpm (G series). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers 781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART Module ( Module | Harness | Flange Speed Sensor G-Series ) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void warranty on product.
