GARRETT 880693-5001S Super Core Turbocharger without Turbine Housing for GARRETT G30-660
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 880693-5001S Super Core Turbocharger without Turbine Housing for GARRETT G30-660
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
Choose options
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
Description GARRETT 880693-5001S Super Core Turbocharger without Turbine Housing for GARRETT G30-660

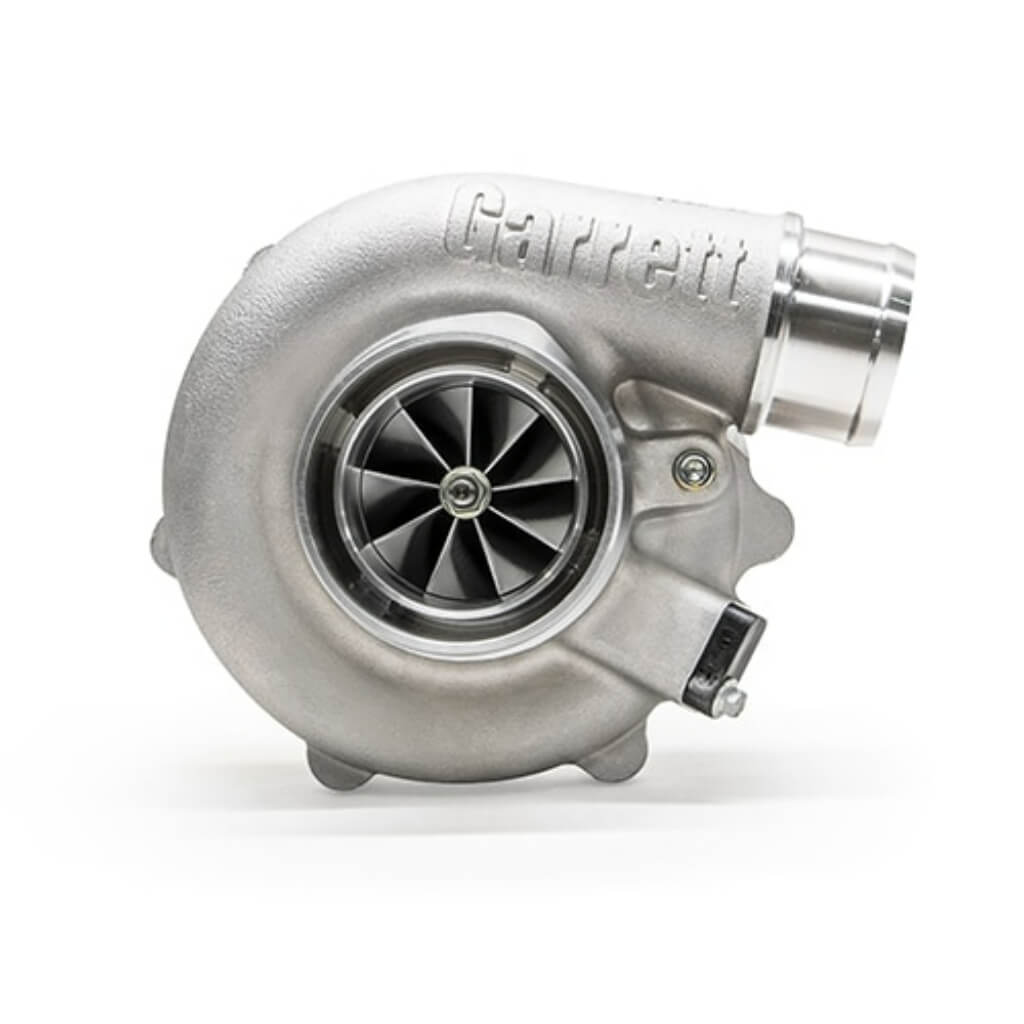

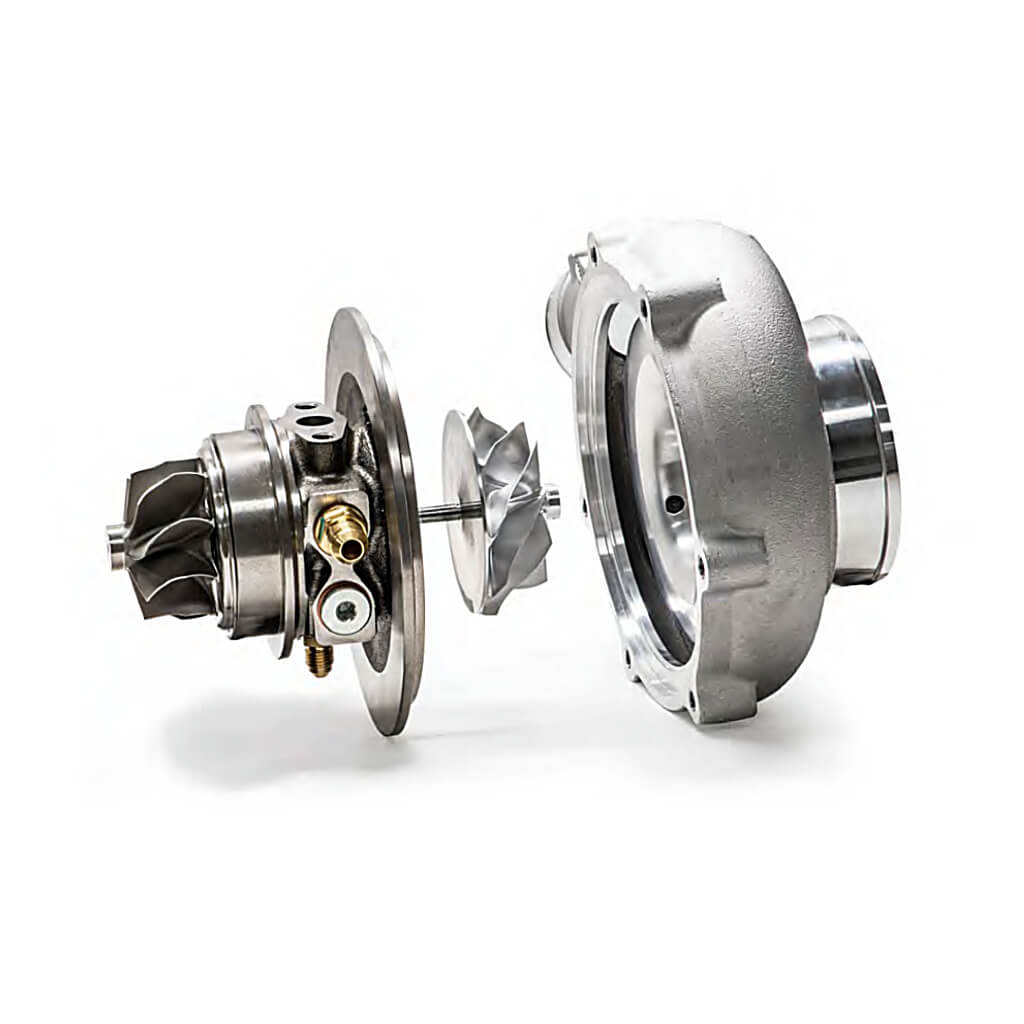

The GARRETT 880693-5001S Super Core is a G30-660 turbocharger core unit supplied without a turbine housing. Built with the latest Garrett G-Series innovations, it combines cutting-edge aerodynamics and high-performance materials in a compact design. The forged milled compressor wheel is CFD-optimized for maximum efficiency, while the high-flow compressor housing integrates a speed sensor port for precise monitoring. Dual ceramic ball bearings ensure rapid spool and durability, with additional support from water and oil cooling. The MAR-M 1050 C turbine wheel offers exceptional thermal resistance, making this turbo ideal for motorsport and high-performance applications.
- CFD-optimized, forged milled compressor wheel
- High-flow compressor housing with integrated speed sensor port
- Standard (clockwise) rotation
- Dual ceramic ball bearing cartridges
- Includes -4AN oil restrictor fitting with 1 mm orifice
- Four large water jacket ports for enhanced cooling
- Twin piston rings on compressor and turbine sides
- MAR-M 1050 C turbine wheel for high-temperature durability
- Water- and oil-cooled bearing housing
Specifications:
- Compressor Inducer: 54 mm
- Compressor Exducer: 67 mm
- Turbine Inducer: 60 mm
- Turbine Exducer: 55 mm
