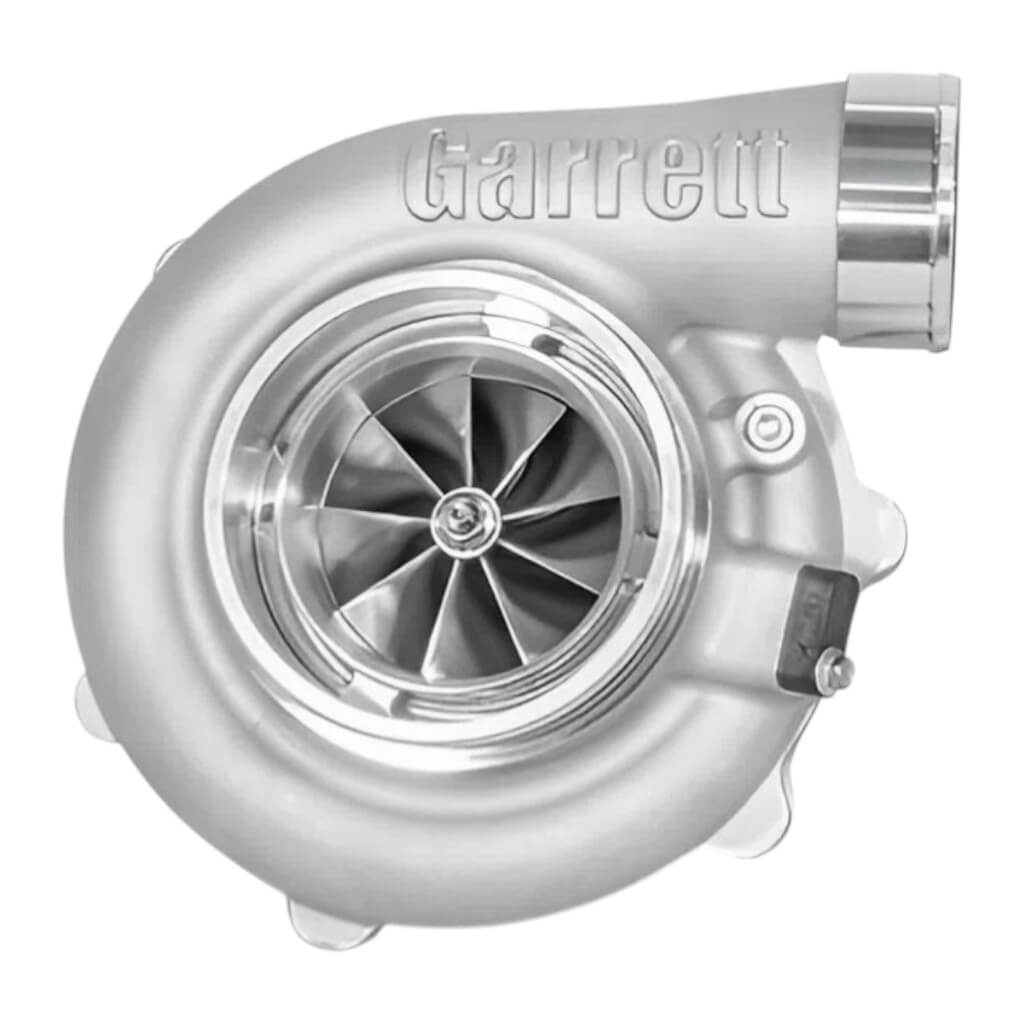

GARRETT 880707-5003S Turbocharger G35-900 1.01 A/R, V-Band / V-Band, Internal Wastegate Photo-0

GARRETT 880707-5003S Turbocharger G35-900 1.01 A/R, V-Band / V-Band, Internal Wastegate

€2.488,29

VAT included. Shipping calculated at checkout

GARRETT P/N: 880707-5003S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 880707-5003S Turbocharger G35-900 1.01 A/R, V-Band / V-Band, Internal Wastegate

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description GARRETT 880707-5006S Turbocharger G35-1050 1.01 A/R, V-Band / V-Band, Internal Wastegate

The Garrett G-Series G35-1050 turbochargers deliver more power and durability in a smaller frame than ever before.

Product Specifications

  • Power range from 550 to 900 HP for performance applications
  • CFD-optimized forged milled compressor wheel for enhanced airflow
  • Dual ceramic ball bearing cartridges for improved response and longevity
  • High-flow compressor housing with integrated speed sensor port
  • MAR-M turbine wheel rated up to 1050°C for thermal resistance
  • Water- and oil-cooled system with multiple water jacket ports
  • Internal wastegate for integrated boost control
  • Engine Displacement: 2.0 - 5.5 L
  • Turbine Housing A/R: 1.01
  • Configuration: Single Scroll, Internal Wastegate
  • Rotation: Standard (Clockwise)
  • Cooling: Water and Oil
  • Compressor Inducer Diameter: 62 mm
  • Compressor Exducer Diameter: 76 mm
  • Turbine Inducer Diameter: 68 mm
  • Turbine Exducer Diameter: 62 mm
  • Turbine Housing: V-Band Inlet / V-Band Outlet

Warning: Dear customer - G series turbochargers are highly efficient units that don't require a high boost for reaching its limits. Please pay attention that maximum allowable turbocharger speed is 165krpm (G series). The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating a speed sensor, part numbers 781328-0004 (single speed sensor that should be connected) or GARRETT G-SMART Module (Module | Harness | Flange Speed Sensor G-Series) must be fitted and monitored during fine and tune as well as with use of the unit. Missing of the sensors or RPM data will void  warranty on product.
