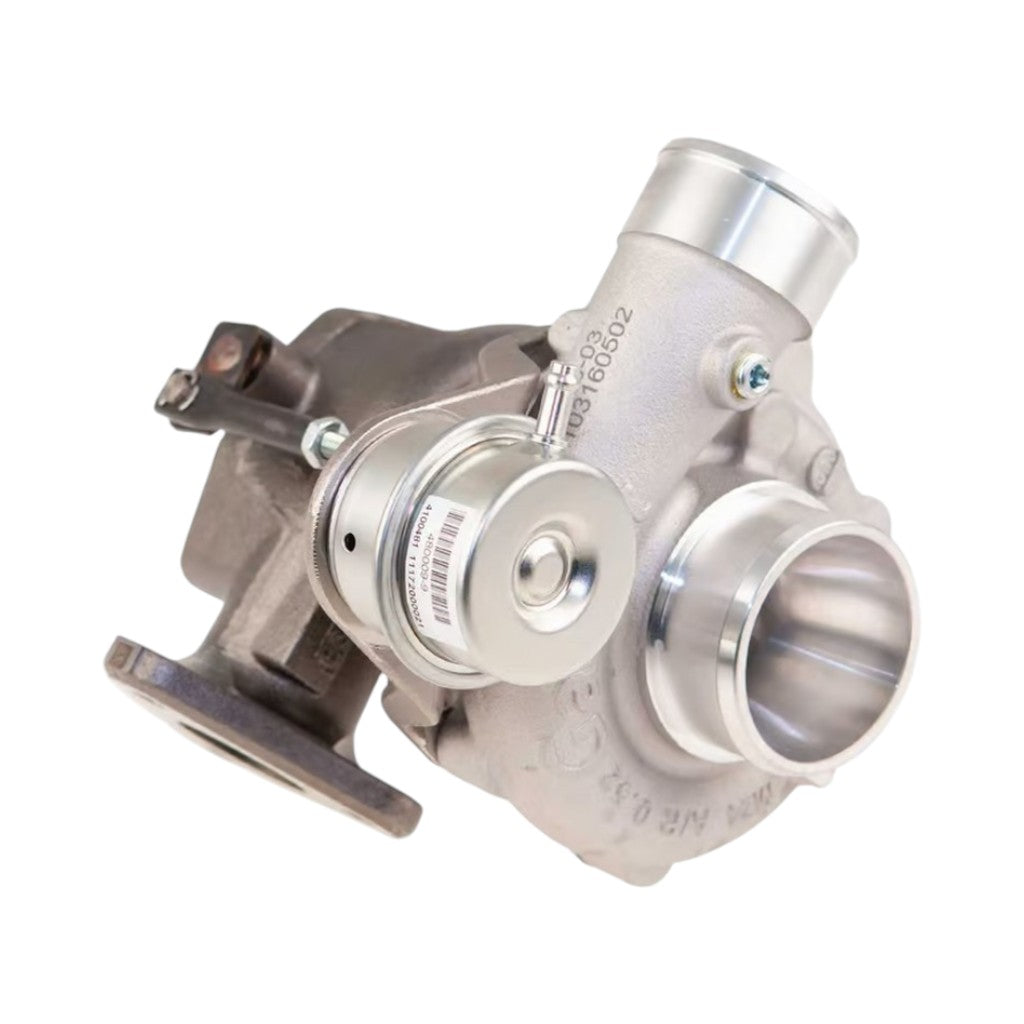

GARRETT 896053-5003S Turbocharger GBC20-300 0.55 A/R, T25 / 5-bolt, Internal Wastegate Photo-0

GARRETT 896053-5003S Turbocharger GBC20-300 0.55 A/R, T25 / 5-bolt, Internal Wastegate

€773,50

VAT included. Shipping calculated at checkout

GARRETT P/N: 896053-5003S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 896053-5003S Turbocharger GBC20-300 0.55 A/R, T25 / 5-bolt, Internal Wastegate

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description GARRETT 896053-5003S Turbocharger GBC20-300 0.55 A/R, T25 / 5-bolt, Internal Wastegate

The Garrett GBC-Series turbocharger range is developed for small to medium displacement engines, delivering efficient performance in compact configurations.

Specifications

  • Turbo Series: GBC-Series
  • Compressor Inducer: 39 mm
  • Compressor Exducer: 52 mm
  • Turbine Inducer: 47 mm
  • Turbine Exducer: 42 mm
  • A/R 0.55
  • Supports 170 - 300 HP applications
  • CFD-optimized forged and machined compressor wheel
  • Journal bearing system with 360 degree thrust bearing
  • Ductile iron (SiMo+) turbine housing for durability
  • Inconel turbine wheel for high-temperature resistance
  • Integrated internal wastegate with 0.5 bar actuator
  • Oil-cooled center housing (CHRA)
  • T25 turbine inlet and 5-bolt outlet configuration
  • V-band mounting interface for CHRA
