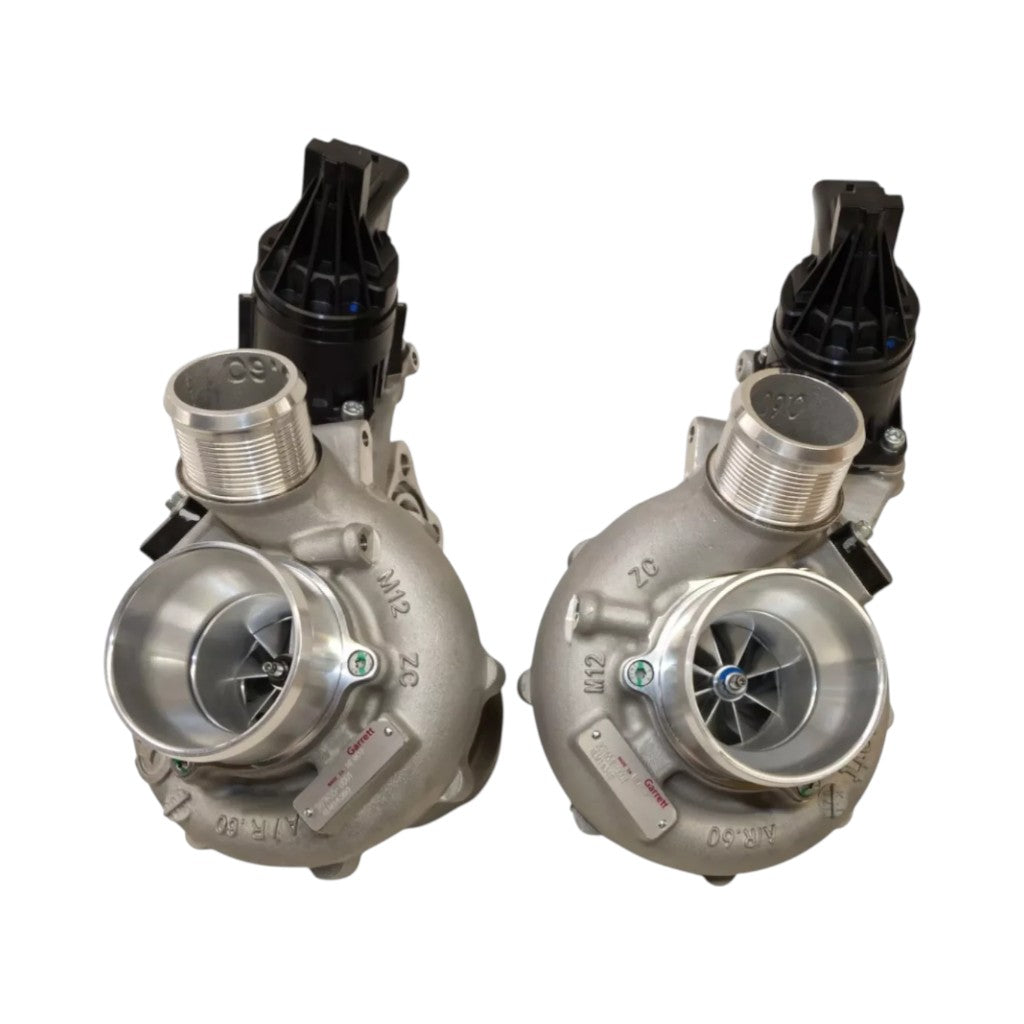

GARRETT 911984-5003S Turbocharger Kit GT2260S PowerMax Stage 2 for FORD 3.5L EcoBoost 2017-2020

Description GARRETT PowerMax Stage 2 Turbocharger Upgrade for Ford F-150 / F-150 Raptor (2017–2020)

The Garrett PowerMax Stage 2 turbocharger upgrade is engineered for the 2017–2020 Ford F-150 and F-150 Raptor platforms, delivering significant performance gains while maintaining OEM installation compatibility. This direct drop-in system increases airflow by 54% compared to the factory turbochargers and supports power levels exceeding 700 BHP.

Specifications

• Application: Ford F-150 / F-150 Raptor (2017–2020)
• Maximum Turbo Speed: 176 krpm
• CARB EO: D-871-1 (LH 901654-5001W / RH 901655-5001W)
• Speed Sensor Compatibility: 781328-0003 / 781328-0004
• Direct-fit Stage 2 upgrade (LH and RH turbochargers)
• Supports 700+ BHP
• 54% increased compressor flow with billet 60 mm compressor wheel
• 52% increased turbine flow with 50 mm Inconel turbine wheel
• GT2260S turbocharger model
• 0.45 A/R turbine housing for increased flow capacity
• Enlarged 2.75” compressor inlet with optimized surge port
• Adapter included for stock inlet tube compatibility
• Complete assembly with calibrated electronic actuators
• Tuned ported shroud for optimized surge and choke performance
• Integrated speed sensor port (sensors sold separately)
• CARB certified (EO D-871-1) for emissions compliance
• Journal-bearing rotating group

Warning: The maximum allowable turbocharger speed is 176krpm. The use of this product above 176krpm is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), and 781328-0004 (includes speed sensor). Speed sensors sold separately.
