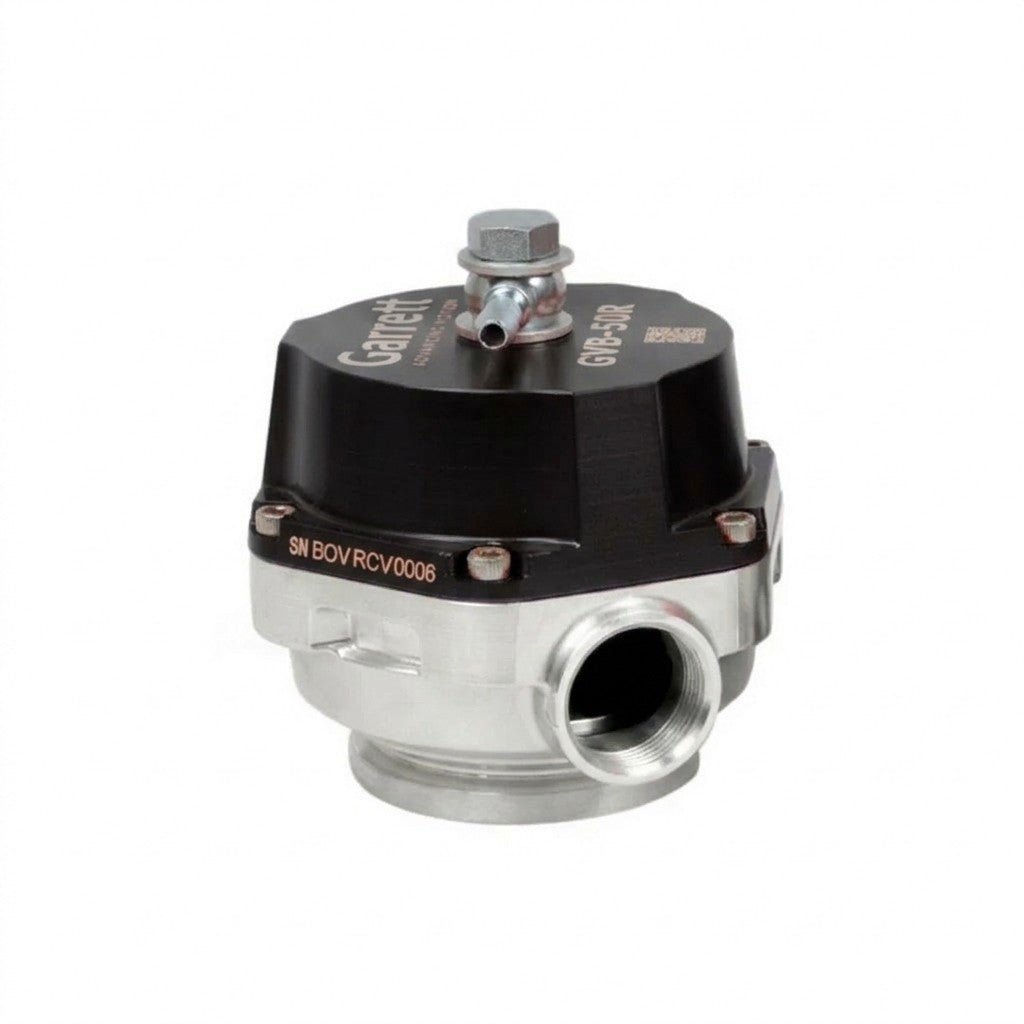

GARRETT 914959-0003 Blow-Off Valve RCV GVB-50R, 50mm, Black Photo-0

GARRETT 914959-0003 Blow-Off Valve RCV GVB-50R, 50mm, Black

€280,84

VAT included. Shipping calculated at checkout

GARRETT P/N: 914959-0003
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 914959-0003 Blow-Off Valve RCV GVB-50R, 50mm, Black

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description GARRETT 914959-0003 Blow-Off Valve RCV GVB-50R, 50mm, Black

The GARRETT RCV GVB-50R is a high-performance blow-off valve. Engineered for maximum flow and efficiency, this recirculating valve ensures precise boost management and superior durability. The robust construction with replaceable components allows extended service life, while the anodized aluminum actuator cover and billet housing provide strength and reduced weight. Each kit comes complete with all required fasteners, springs, fittings, V-bands, clamps, and flanges for easy installation.

  • Recirculating and Vent to atmosphere housing options
  • CFD tested for maximum flow and thermal efficiency
  • Replaceable components to increase service life
  • Robust design for easy diaphragm replacement
  • 6061 Anodized aluminum actuator cover and fully-machined billet housing
  • Maximum flow 350 CFM / .21kg/s for GVB-50R (Recirculating)
  • Four outlet adapters for the recirculating valve. Adapters sold separately
  • Four Colors: Red / Blue / Black / Silver
  • Spring pressure 0.7 Bar/10 PSI (blue and white spring installed)
  • Springs | Fittings | Flanges | V-Bands included
  • Configurable springs settings include rates from 0.2 Bar/3 PSI – 0.9 Bar/13 PSI
  • Wrought Aluminum Alloy Weld Flange
  • 17/7 PH Stainless Steel Springs (2 installed, 3 additional)
  • Plated stem and bushing for lowered friction and wear resistance
  • High temp nomex reinforced diaphragm
  • Stainless steel fittings and fasteners
