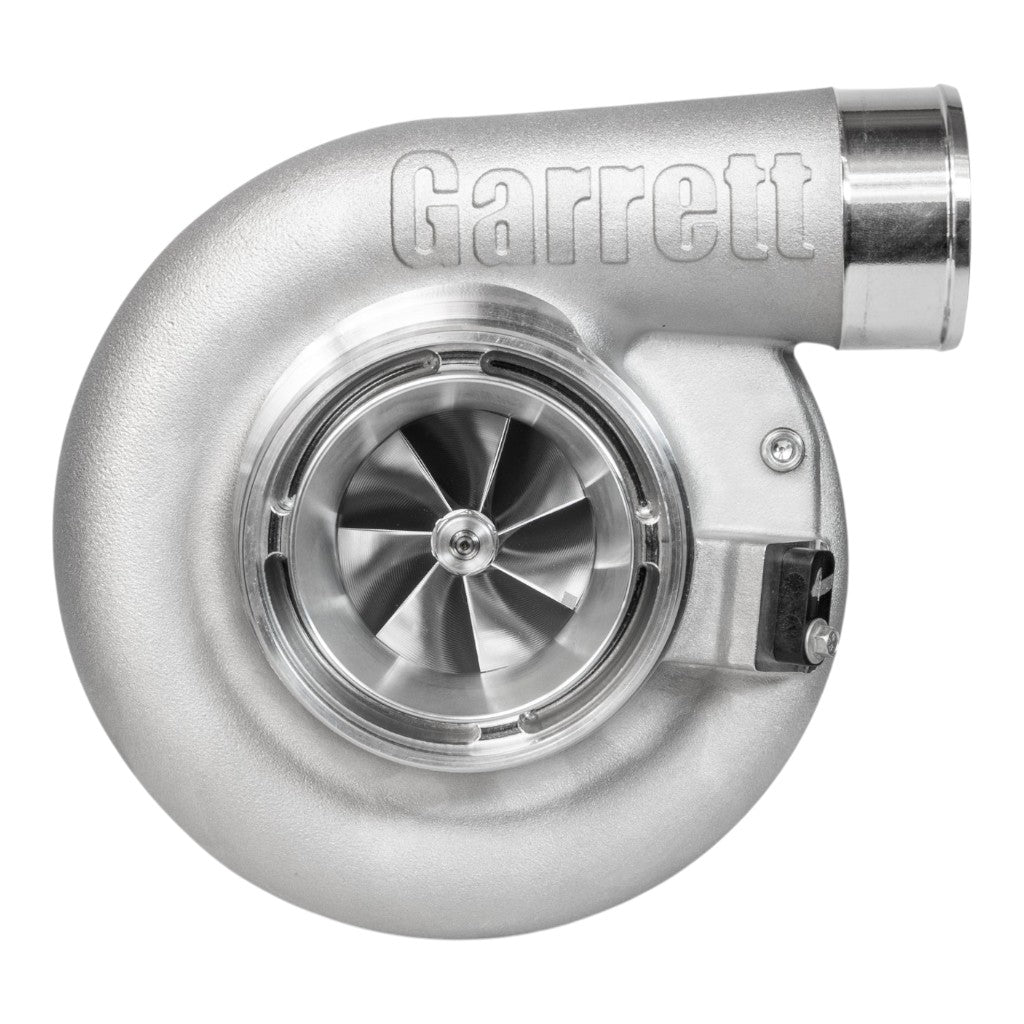

GARRETT 934173-5009S Turbocharger Supercore G-XRace GXR38-64 64mm CH Hose

Description GARRETT 934173-5009S Turbocharger Supercore G-XRace GXR38-64 64mm CH Hose

The GARRETT G-XRace GXR38-64 turbocharger is engineered for high-performance racing applications requiring a 64 mm compressor configuration. Its XBoost Technology provides improved pressure ratio capability, supporting increased boost levels and enhanced power output. High-flow compressor efficiency helps deliver cooler, denser intake air to support horsepower and engine performance.

The turbocharger is available with both V-Band and hose compressor outlet configurations, providing flexible installation options for a wide range of custom setups. A lightweight aluminum backplate helps reduce overall turbocharger weight, while the integrated fully machined sensor port enables precise turbo monitoring and tuning.

• XBoost Technology supports higher boost levels and increased power output
• Improved pressure ratio capability for enhanced boost performance
• High-flow efficiency helps deliver cooler and denser intake air
• Available with V-Band and hose compressor outlet configurations
• Lightweight aluminum backplate helps reduce turbocharger weight
• Integrated fully machined sensor port enables precise monitoring and tuning
• Designed for XWorld drag racing and classes with a 64.9 mm compressor inducer limit
• Direct upgrade path and outline interchangeable with GXR45-73 for XFWD class
• Compatible with G-Smart Module/App PN 923586-0003, Speed Sensor Kit 781328-0003, and Speed Sensor Kit 781328-0004

Specifications:

• Compressor Reference: G-XRace GXR38-64
• Compressor Size: 64 mm
• Compressor Outlet Configurations: V-Band, Hose
• Compressor Inducer Class Limit: 64.9 mm
• Compatible Monitoring Module: G-Smart Module/App PN 923586-0003
• Compatible Speed Sensor Kit: 781328-0003 Street Kit with Gauge
• Compatible Speed Sensor Kit: 781328-0004 Pro Kit without Gauge
