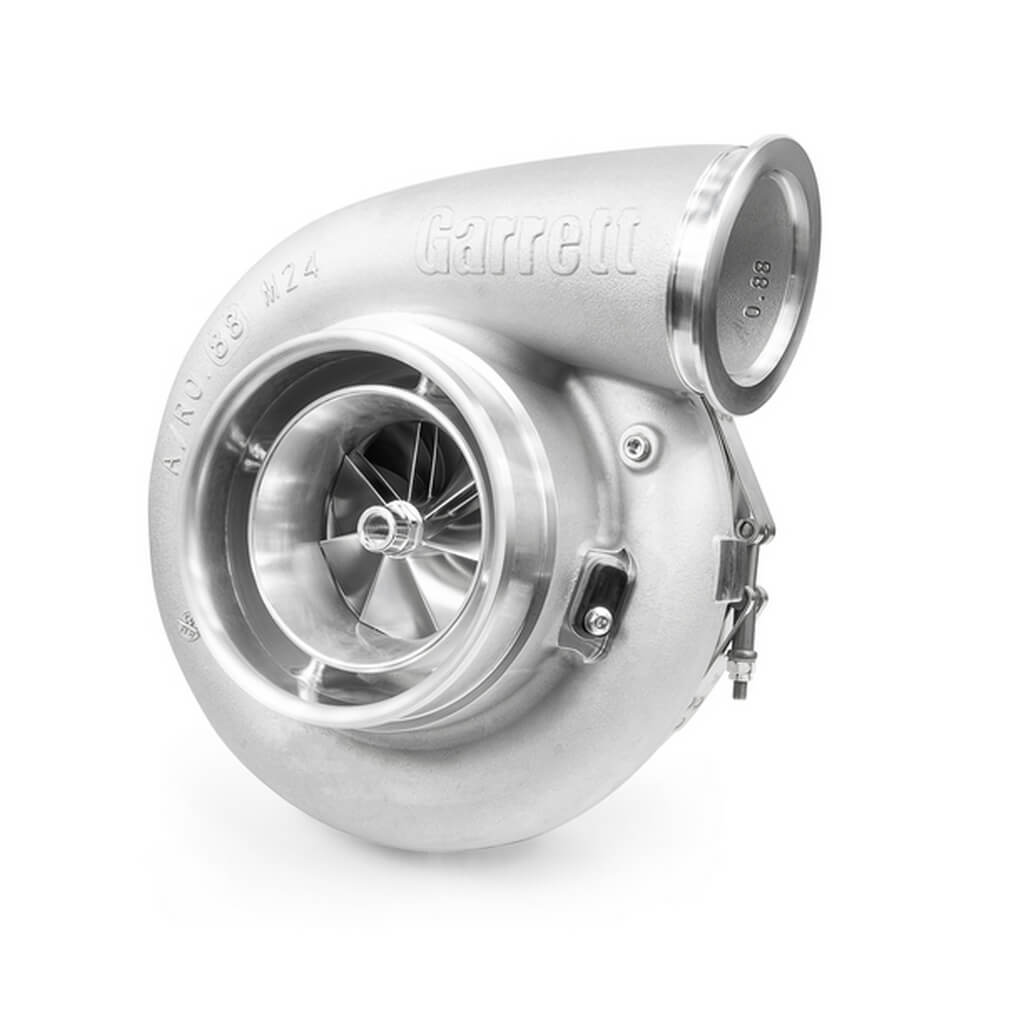

GARRETT 934174-5002S Turbocharger Supercore G-XRace GXR55-88 0.18" PS 106TW
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
GARRETT 934174-5002S Turbocharger Supercore G-XRace GXR55-88 0.18" PS 106TW
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
Winners aren’t born – they are built. Reputations are forged through skill, speed and consistency. Racers push their skills, their cars, and their turbos to extreme limits. When the stakes are high, only the best turbo will take you to the finish line. Garrett G-XRace is built for those who know that winning comes from being the quickest, pass after pass, race after race.
Product Features
- XBoost Technology increases power and performance
- +21% compressor flow (GXR55-88 compared to G55-1950)
- Enhanced pressure ratio capability and higher boost pressure
- Increased efficiency at high flow rates
- Lower intake temperature
- Lightweight aluminum backplate
- Fully machined flange-style speed sensor port for easy sensor installation and monitoring turbo speed
- For use in drag race classes LDR (Limited Drag Radial), X275, and classes with 88mm compressor inducer rule. Please verify class rules before purchasing
Technical specifications
- HP: 1000-235
- Disp: 3.0L-12.0L
- Turbine Inducer - 112mm
- Turbine Exducer - 106mm
- Turbine Trim - 90
- Compressor Inducer - 88.9mm
- Compressor Exducer - 133mm
- Compressor Trim - 44
- Compressor A/R 0.88
