GARRETT 938272-5002S Supercore G-Series II G40-1250 Photo-0

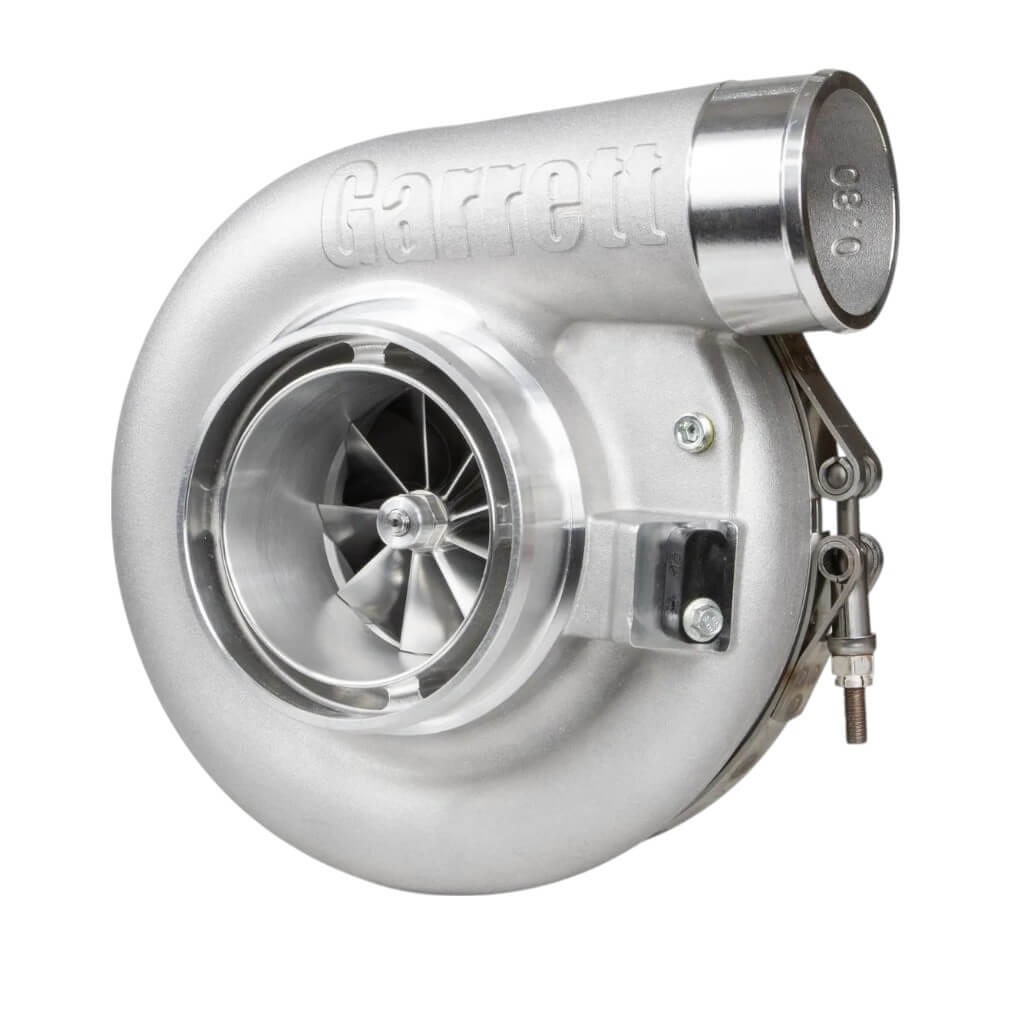

GARRETT 938272-5002S Supercore G-Series II G40-1250

Sale price€2.360,96

VAT included. Shipping calculated at checkout

GARRETT P/N: 938272-5002S
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

GARRETT 938272-5002S Supercore G-Series II G40-1250

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

Description GARRETT 938272-5002S Supercore G-Series II G40-1250

The Garrett G40-1250 Supercore from the G-Series II product line brings cutting-edge performance technology to motorsport and high-power applications. Featuring advanced compressor aerodynamics, this turbocharger delivers up to 10% greater compressor flow compared to G-Series Gen I at peak conditions. Compatible with Gen I compressor and turbine housings, the G40-1250 offers a straightforward upgrade path via a direct CHRA swap. Designed for engines ranging from 2.0L to 6.0L, it supports power outputs up to 1250 horsepower and features high-grade components including a forged compressor wheel, Inconel turbine, and ceramic dual ball bearing system for maximum durability and responsiveness.

Specifications

  • Compressor Inducer: 71 mm
  • Compressor Exducer: 88 mm
  • Compressor Wheel Material: Forged Fully Machined
  • Compressor A/R: 0.80
  • Turbine Inducer: 77 mm
  • Turbine Exducer: 70 mm
  • Turbine Trim: 84
  • Turbine Wheel Material: Inconel
  • Frame Size: 40
  • Rotation: Standard
  • Cooling: Oil & Water Cooled
  • Bearing: Ceramic Dual Ball Bearing
  • Minimum Horsepower: 500 HP
  • Maximum Horsepower: 1250 HP
  • Minimum Engine Displacement: 2.0 L
  • Maximum Engine Displacement: 6.0 L
  • Maximum Allowable Turbocharger Speed: 125,000 RPM
