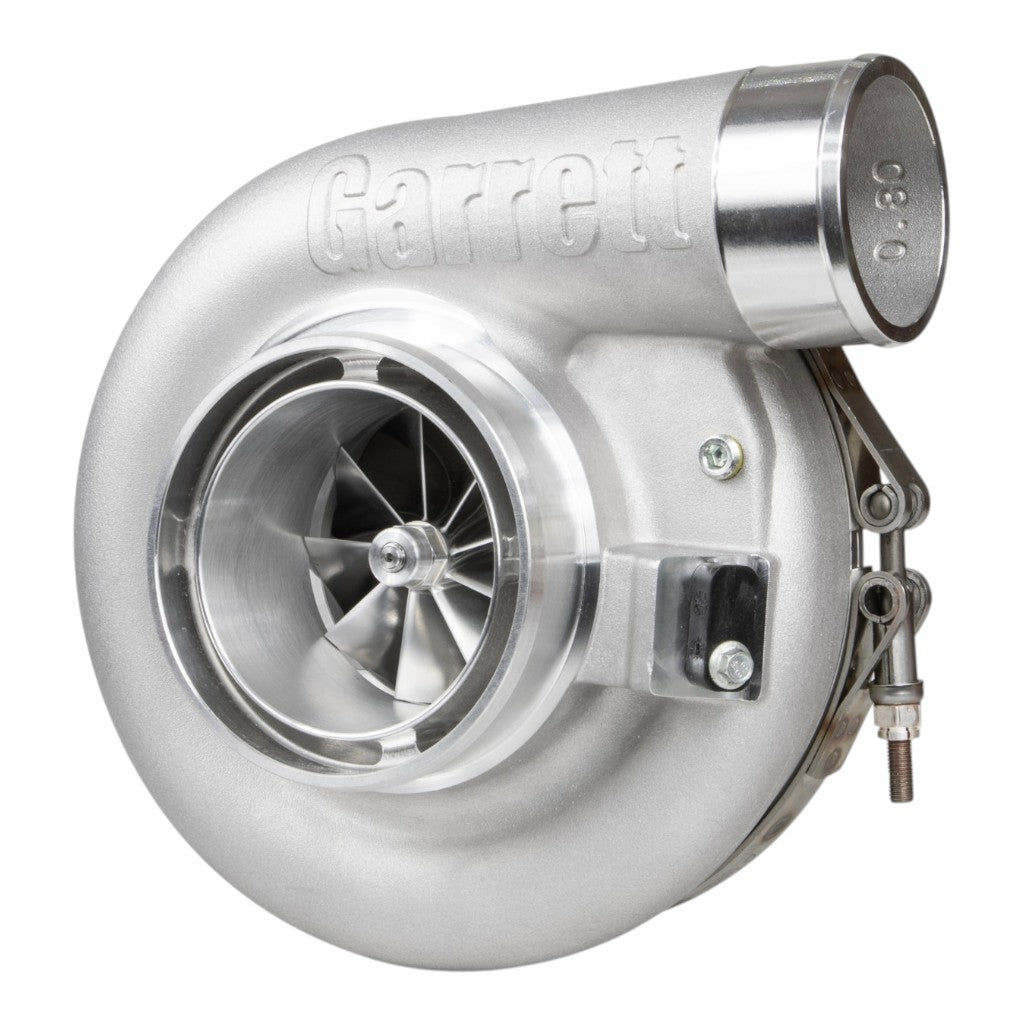

GARRETT 938272-5003S Turbocharger Supercore G-Series G38-1000 62mm

Description GARRETT 938272-5003S Turbocharger Supercore G-Series G38-1000 62mm

The GARRETT G-Series II G38-1000 turbocharger is developed for high-performance applications with engine displacements from 2.0L to 5.5L. The turbine section uses an Inconel turbine wheel and stainless steel turbine housings available in V-Band and T4 divided configurations. Multiple A/R options allow the turbocharger to be matched to different boost response and power requirements.

The G-Series II compressor aerodynamics provide improved pressure ratio capability, supporting increased boost levels and higher airflow efficiency. This helps deliver cooler, denser intake air for enhanced engine performance. The turbocharger is engineered to OEM-level standards for durability, reliability, and long-term operation.

• Supports 2.0L to 5.5L engine displacements
• Inconel turbine wheel for high-temperature durability
• Stainless steel turbine housings available in V-Band and T4 divided configurations
• Improved compressor pressure ratio capability for increased boost levels
• High-flow efficiency supports cooler and denser intake air
• Lightweight aluminum backplate helps reduce turbocharger weight
• Integrated fully machined sensor port enables precise turbo monitoring and tuning
• Compatible with G-Smart Module/App PN 923586-0003, Speed Sensor Kit 781328-0003, and Speed Sensor Kit 781328-0004

Specifications:

• Engine Displacement Range: 2.0L - 5.5L
• Turbine Wheel Material: Inconel
• Turbine Wheel Inducer: 74 mm
• Turbine Wheel Exducer: 66 mm
• Turbine Housing Material: Stainless Steel
• Turbine Housing Configurations: V-Band, T4 Divided
• A/R Options: 0.85, 0.95, 1.06
• Compressor Reference: G-Series II G38-1000 62 mm
• Compressor Outlet: Hose
• Related Compressor Reference: G-XRace GXR38-64 64 mm
• Related Compressor Outlet: Hose and V-Band
