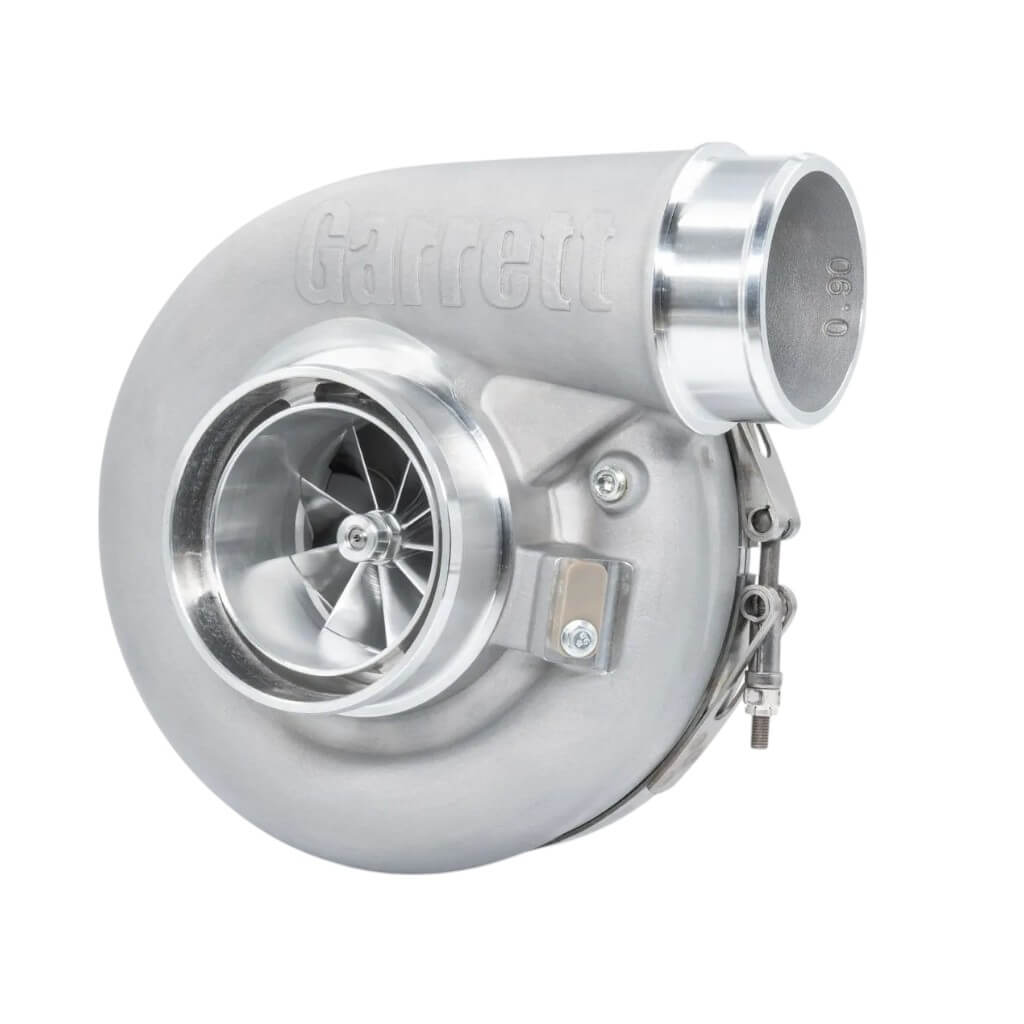

Description GARRETT 938339-5001S Supercore G-Series II G42-1325c
The Garrett G42-1325C G-Series II Compact Supercore turbocharger delivers advanced performance in a more compact format, specifically designed for motorsport and high-output applications. Engineered with the latest compressor aerodynamics, this turbo provides up to 10% more flow than Gen I models, while retaining compatibility with existing G-Series I housings. Ideal for builds requiring space-conscious solutions without compromising output, the G42-1325C supports a wide powerband from 475 to 1325 horsepower and is optimized for engines ranging from 2.0L to 7.0L displacement.
Specifications
- Compressor Inducer: 73 mm
- Compressor Exducer: 91 mm
- Compressor Wheel Material: Forged Fully Machined
- Compressor A/R: 0.88
- Turbine Inducer: 82 mm
- Turbine Exducer: 75 mm
- Turbine Trim: 84
- Turbine Wheel Material: Inconel
- Frame Size: 42
- Rotation: Standard
- Cooling: Oil & Water Cooled
- Minimum Horsepower: 475 HP
- Maximum Horsepower: 1325 HP
- Minimum Engine Displacement: 2.0 L
- Maximum Engine Displacement: 7.0 L
- Maximum Allowable Turbocharger Speed: 120,000 RPM
