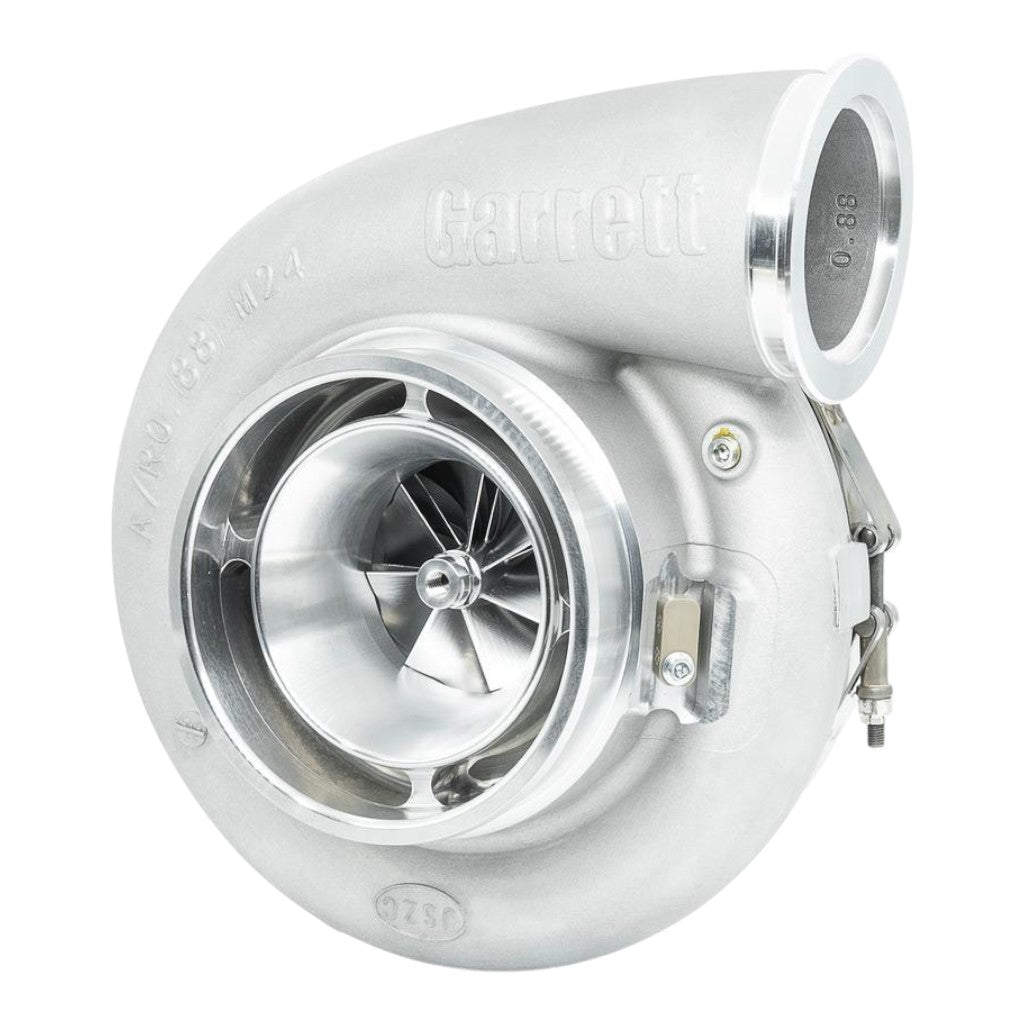

GARRETT 953234-5006S Turbocharger Supercore G-XRace GXR47-76, 76/120mm

Description GARRETT 953234-5006S Turbocharger Supercore G-XRace GXR47-76, 76/120mm

The GARRETT 953234-5006S G-XRace GXR47-76 Supercore is a high-performance motorsport turbocharger engineered for extreme racing applications. Developed within the G-XRace series, this unit is designed to deliver consistent performance under demanding conditions, supporting high power outputs and sustained high-load operation.

Featuring advanced XBoost technology, the turbocharger provides increased compressor flow, improved pressure ratio capability, and enhanced efficiency at high airflow rates. These characteristics result in cooler, denser intake air and improved overall engine performance. The lightweight aluminum backplate reduces overall turbo mass, while the integrated flange-style speed sensor port enables accurate monitoring of turbo shaft speed.

• G-XRace series motorsport turbocharger for high-performance applications
• XBoost technology for increased airflow and performance
• Improved pressure ratio capability for higher boost levels
• Enhanced efficiency at high flow rates for cooler intake air
• Lightweight aluminum backplate for reduced mass
• Integrated speed sensor port for turbo speed monitoring

Specifications:

• Turbocharger Reference: 7688
• Horsepower Rating: up to 1700 HP
• Compressor Inducer: 76.6 mm
• Compressor Exducer: 123 mm
• Turbine Inducer: 93 mm
• Turbine Exducer: 88 mm
• Rotation: Standard

WARNING.: The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), 781328-0004 (includes speed sensor), or G-Smart Bluetooth Module with sensor (PN 923586-0003). Sensor Kits sold separately.
