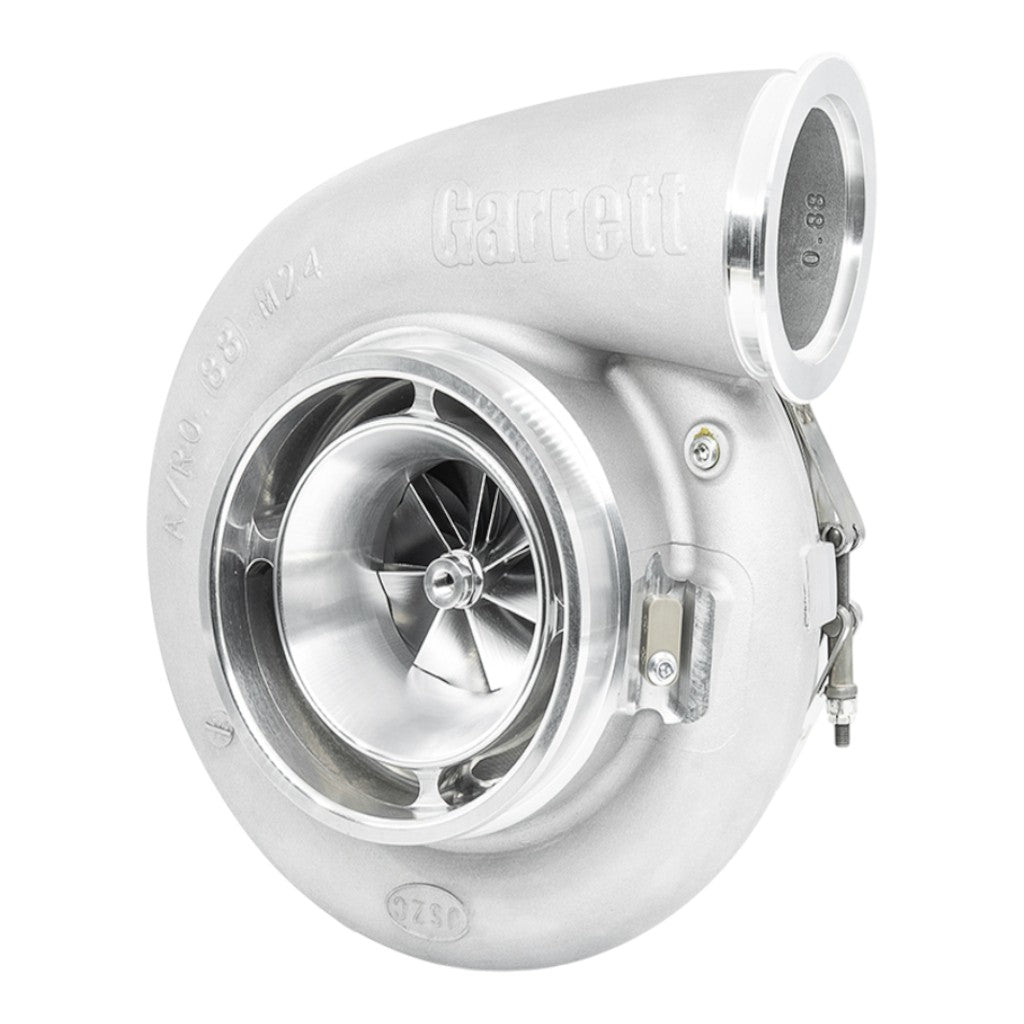

GARRETT 953234-5008S Turbocharger Supercore G-XRace GXR50-76, 76/120mm

Description GARRETT 953234-5008S Turbocharger Supercore G-XRace GXR50-76, 76/120mm

The GARRETT 953234-5008S G-XRace GXR50-76 Supercore is a motorsport-grade turbocharger engineered for high-performance racing applications. As part of the G-XRace series, it is designed to deliver consistent output under extreme operating conditions, supporting high horsepower builds and sustained high-load use.

Incorporating advanced XBoost technology, the turbocharger provides increased compressor flow, improved pressure ratio capability, and enhanced efficiency at elevated airflow levels. These characteristics contribute to cooler and denser intake air, improving overall engine performance. A lightweight aluminum backplate reduces mass, while the integrated flange-style speed sensor port allows accurate monitoring of turbo shaft speed.

• G-XRace series turbocharger for motorsport applications
• XBoost technology for increased airflow and performance
• Improved pressure ratio capability for higher boost levels
• Enhanced efficiency at high flow rates
• Lightweight aluminum backplate for reduced turbo mass
• Integrated speed sensor port for monitoring turbo speed

Specifications:

• Turbocharger Reference: 7694
• Horsepower Rating: up to 1750 HP
• Compressor Inducer: 76.6 mm
• Compressor Exducer: 123 mm
• Turbine Inducer: 99 mm
• Turbine Exducer: 94 mm
• Rotation: Standard

WARNING. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), 781328-0004 (includes speed sensor), or G-Smart Bluetooth Module with sensor (PN 923586-0003). Sensor Kits sold separately.
