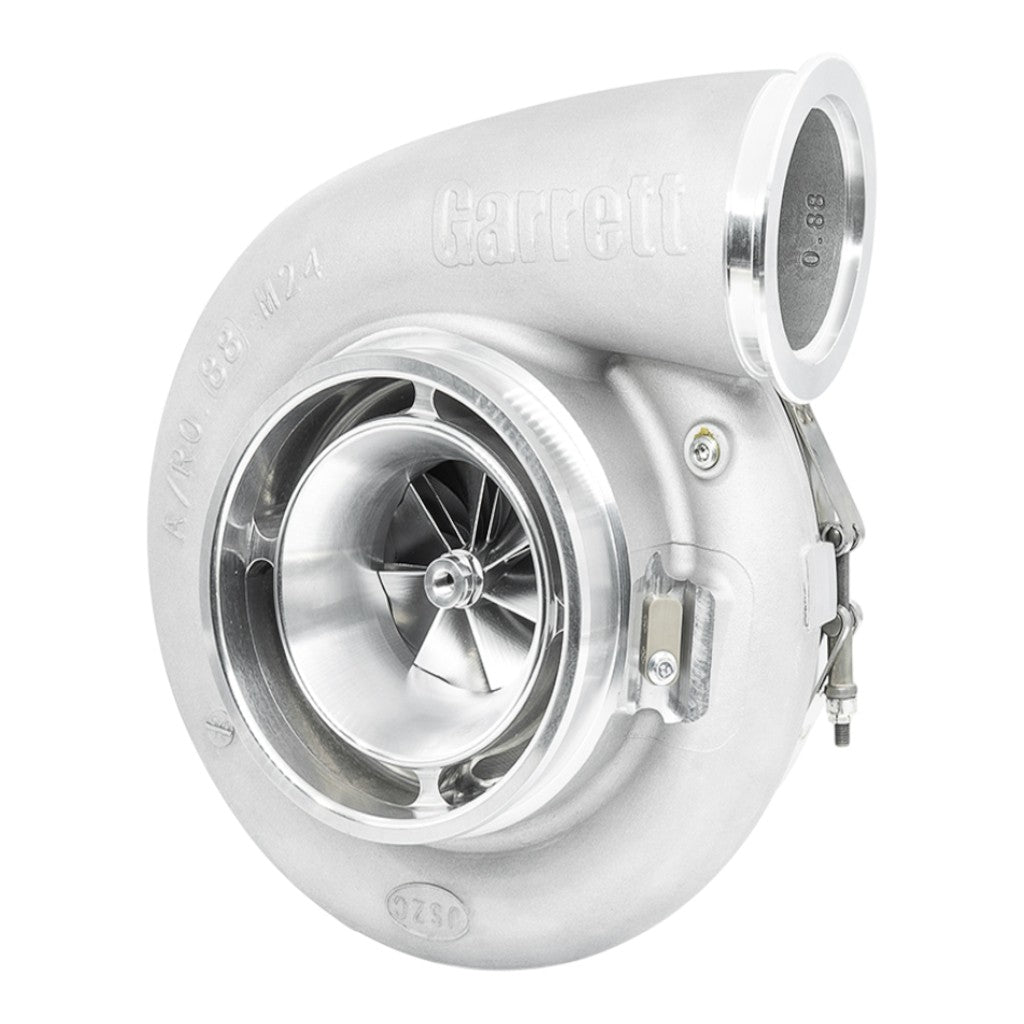

GARRETT 953234-5010S Turbocharger Supercore G-XRace GXR50-88, 88/120mm

Description GARRETT 953234-5010S Turbocharger Supercore G-XRace GXR50-88, 88/120mm

The GARRETT 953234-5010S G-XRace GXR50-88 Supercore is a high-performance motorsport turbocharger designed for extreme racing applications. As part of the G-XRace series, it is engineered to deliver consistent power output under high-load conditions and support high-horsepower engine configurations.

Featuring advanced XBoost technology, the turbocharger increases compressor flow, improves pressure ratio capability, and enhances efficiency at high airflow levels. These characteristics contribute to cooler, denser intake air and improved engine performance. A lightweight aluminum backplate reduces overall turbo mass, while the integrated flange-style speed sensor port enables accurate monitoring of turbo shaft speed.

• G-XRace series turbocharger for professional motorsport use
• XBoost technology for increased airflow and performance
• Improved pressure ratio capability for higher boost levels
• High efficiency at elevated flow rates
• Lightweight aluminum backplate for reduced turbo weight
• Integrated speed sensor port for turbo speed monitoring

Specifications:

• Turbocharger Reference: 8894
• Horsepower Rating: up to 2050 HP
• Compressor Inducer: 88.9 mm
• Compressor Exducer: 123 mm
• Turbine Inducer: 99 mm
• Turbine Exducer: 94 mm
• Rotation: Standard

WARNING. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0003 (includes sensor and gauge), 781328-0004 (includes speed sensor), or G-Smart Bluetooth Module with sensor (PN 923586-0003). Sensor Kits sold separately.
