GARRETT 953907-5001S Turbocharger PowerMax GTB2256V for TOYOTA Hilux 3.0L D 2002-2016

Description GARRETT 953907-5001S Turbocharger PowerMax GTB2256V for TOYOTA Hilux 3.0L D 2002-2016

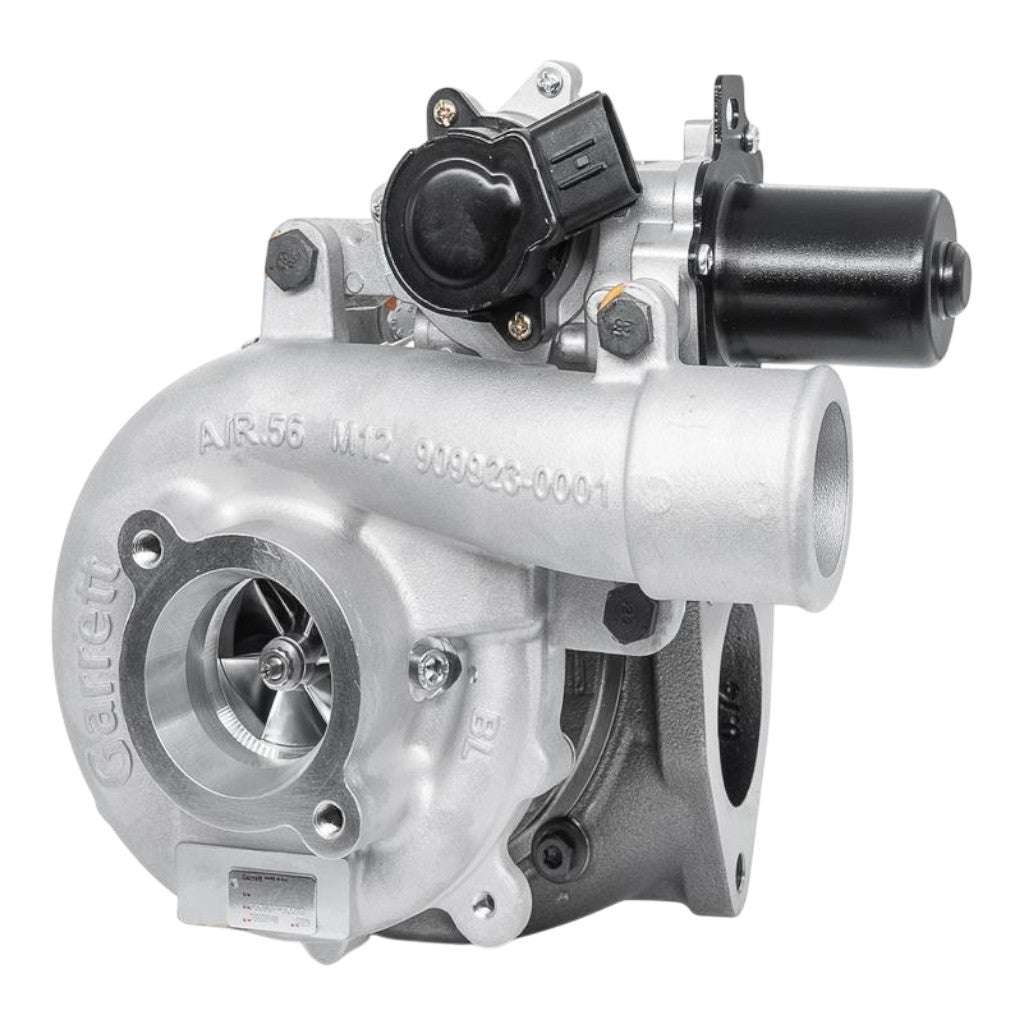

The GARRETT 953907-5001S PowerMax GTB2256V is a direct-fit performance turbocharger engineered for Toyota Hilux equipped with the 3.0L 1KD diesel engine (2002–2016). Designed as an upgrade over the OEM unit, this turbocharger delivers significant improvements in power and torque while maintaining compatibility with factory mounting points.

The unit is supplied as a complete assembly with a calibrated electric actuator and features an upgraded actuator design for improved durability. A fully machined speed sensor port is integrated into the compressor housing, allowing monitoring of turbo shaft speed using compatible GARRETT sensor kits or Bluetooth modules.

• Direct-fit upgrade turbocharger for Toyota 3.0L 1KD diesel engines
• Supports up to 265 BHP (198 kW)
• Up to 70% increase in torque (up to 550 Nm tested)
• Complete assembly with calibrated electric actuator
• Improved actuator design for enhanced durability
• Integrated speed sensor port for turbo speed monitoring

Specifications:

• Engine: 3.0L 1KD Diesel
• Power: 265 BHP / 198 kW
• Compressor Inducer: 42.4 mm
• Compressor Exducer: 61 mm
• Turbine Inducer: 50 mm
• Turbine Exducer: 45 mm

Warning.The use of this product above max turbocharger speed of 171,600 RPM is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from over speed when operating. A speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0001 (includes sensor and gauge),781328-0002 (includes speed sensor), or G-Smart Bluetooth Module with sensor (PN 923586-0002). Sensor Kits sold separately.
