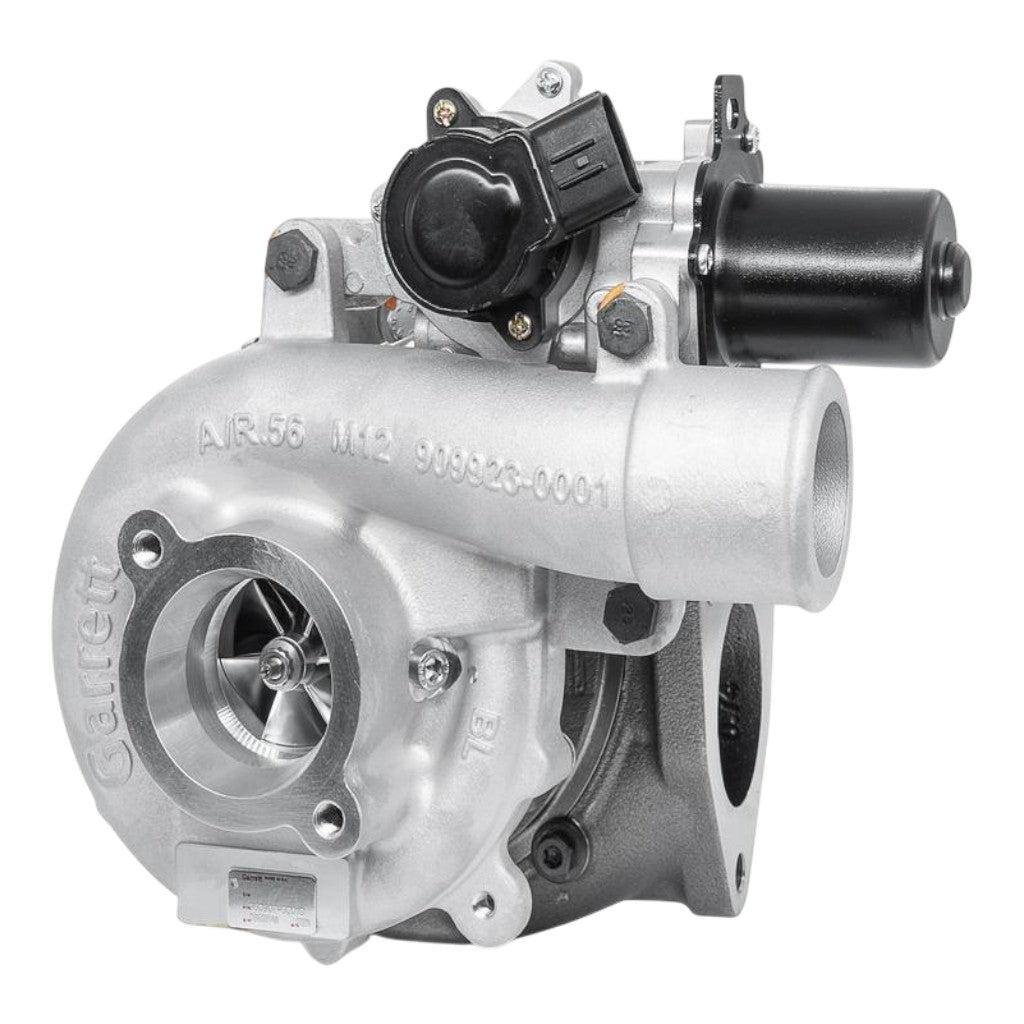

GARRETT 953907-5002S Turbocharger PowerMax GTB2256V for TOYOTA 120 Prado 3.0L D 2002-2016

Description GARRETT 953907-5002S Turbocharger PowerMax GTB2256V for TOYOTA 120 Prado 3.0L D 2002-2016

The GARRETT 953907-5002S PowerMax GTB2256V is a direct-fit performance turbocharger designed specifically for Toyota Prado 120 models equipped with the 3.0L 1KD diesel engine (2002–2016). Engineered as an upgrade over the OEM unit, it delivers increased power and torque while maintaining compatibility with factory mounting and systems.

This turbocharger is supplied as a complete assembly with a calibrated electric actuator and features an improved actuator design for enhanced durability. The compressor housing includes a fully machined port for installation of a turbo speed sensor, enabling accurate monitoring when used with compatible GARRETT sensor kits or Bluetooth modules.

• Direct-fit upgrade turbocharger for Toyota Prado 120 3.0L 1KD diesel
• Supports up to 265 BHP (198 kW)
• Up to 70% increase in torque (up to 550 Nm tested)
• Complete assembly with calibrated electric actuator
• Improved actuator design for increased durability
• Integrated port for turbo speed sensor monitoring

Specifications:

• Engine: 3.0L 1KD Diesel
• Power: 265 BHP / 198 kW
• Compressor Inducer: 42.4 mm
• Compressor Exducer: 61 mm
• Turbine Inducer: 50 mm
• Turbine Exducer: 45 mm

Warning.The use of this product above max turbocharger speed of 171,600 RPM is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from over speed when operating. A speed sensor port is machined into the compressor housing for the fitment of speed sensor part numbers 781328-0001 (includes sensor and gauge),781328-0002 (includes speed sensor), or G-Smart Bluetooth Module with sensor (PN 923586-0002). Sensor Kits sold separately.
