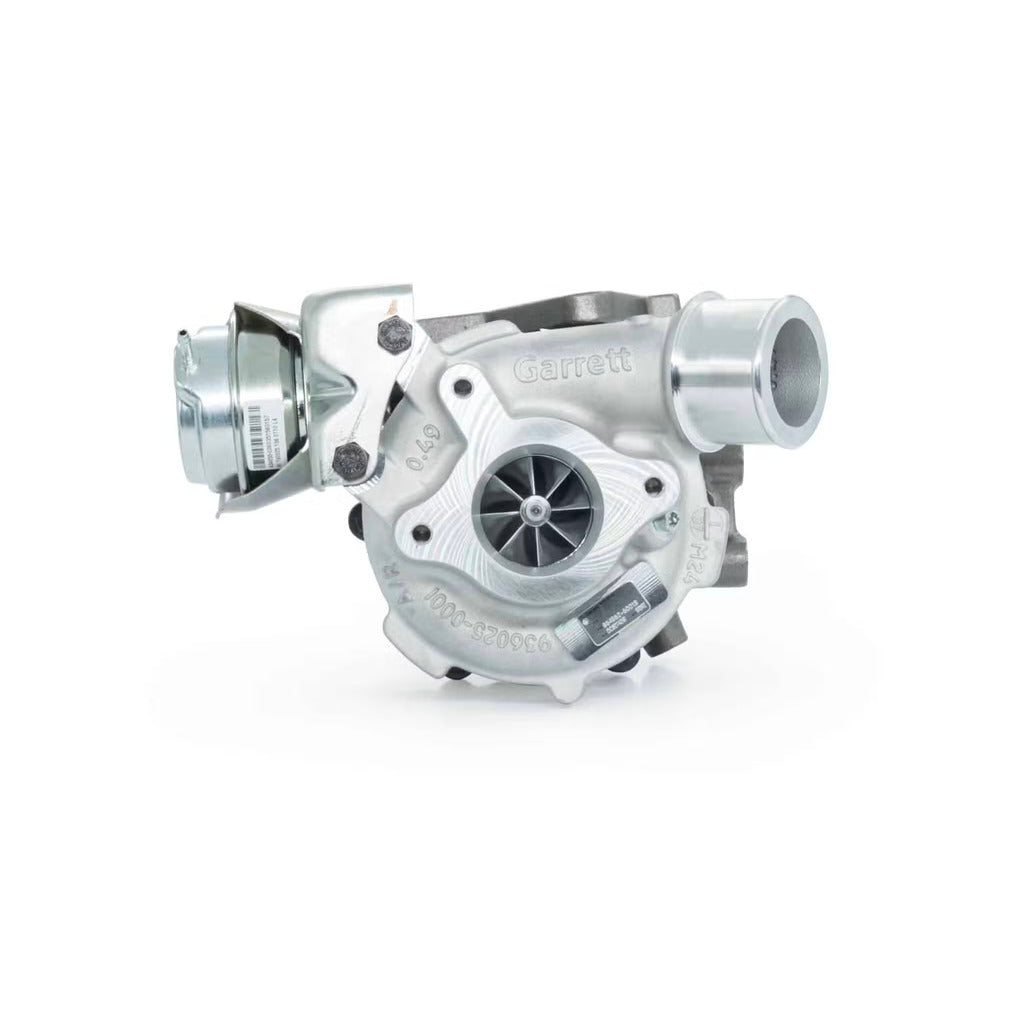

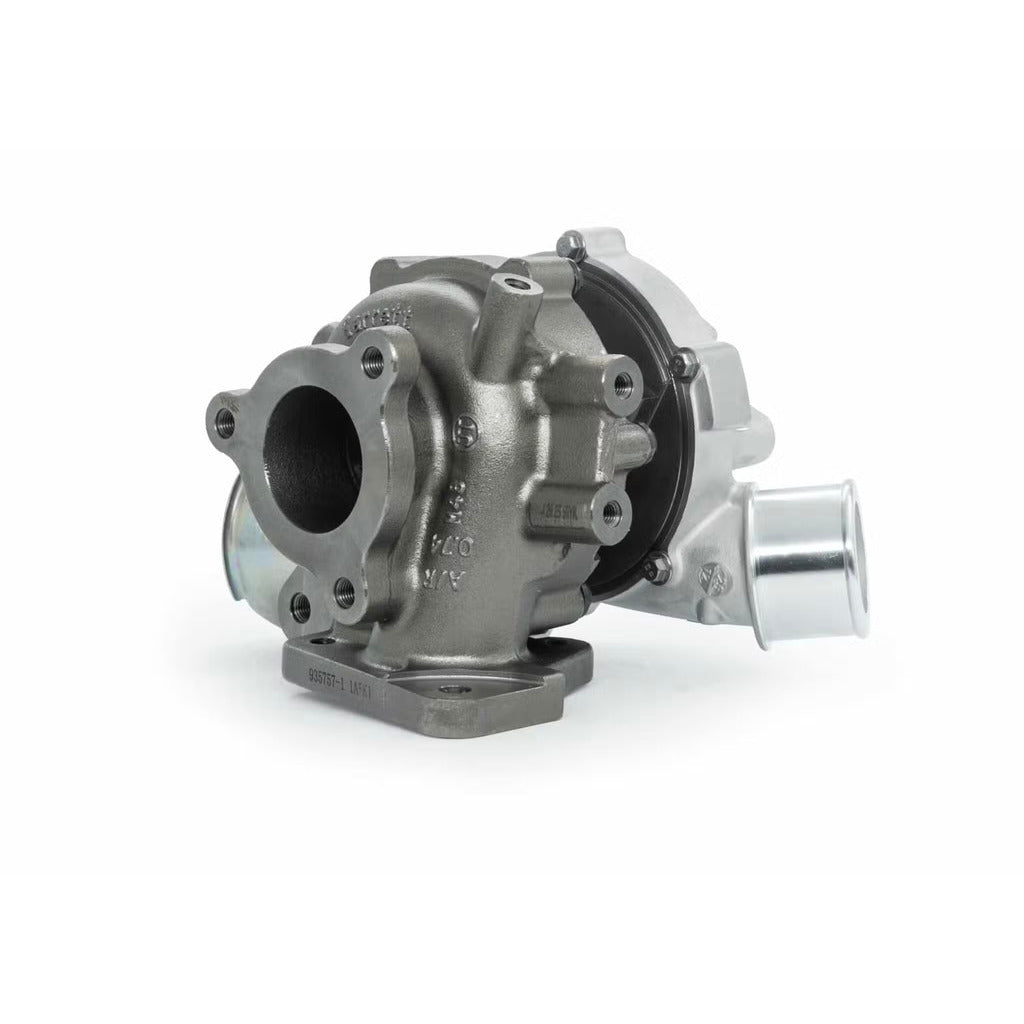

GARRETT 954952-5001S Turbocharger PowerMax GTD1749Z for MITSUBISHI Pajero Sport (QE / QF) 2016-2025 / Triton (MQ) 2016-2020

Description GARRETT 954952-5001S Turbocharger PowerMax GTD1749Z for MITSUBISHI Pajero Sport (QE / QF) 2016-2025 / Triton (MQ) 2016-2020

This performance turbocharger is designed as a direct-fit, bolt-on upgrade for Mitsubishi vehicles equipped with the 2.4L 4N15 diesel engine. Supplied with a calibrated actuator, it integrates with the factory installation while providing increased compressor flow compared with the OEM turbocharger. The unit delivers 22% more compressor flow and supports power output up to 194 kW | 260 BHP.

On-vehicle testing with ECU recalibration increased power from 86 kW to 131 kW, representing a 52% gain, while torque increased from 361 Nm to 445 Nm, representing a 23% gain. A fully machined speed sensor port enables turbocharger speed monitoring and supports tuning optimization using compatible monitoring equipment.

• Direct-fit, bolt-on installation with calibrated actuator
• 22% more compressor flow compared with the OEM turbocharger
• Supports power output up to 194 kW | 260 BHP
• Fully machined speed sensor port for turbocharger speed monitoring and tuning optimization
• Compatible with PN 923586-0002 G-Smart Bluetooth Module / App, Speed Sensor Kit 781328-0001 with gauge, or Speed Sensor Kit 781328-0002 without gauge
• Engineered to OEM standards for durability, reliability, and long-term performance

Specifications:

• Compressor Flow Increase vs. OEM: 22%
• Supported Power Output: Up to 194 kW | 260 BHP
• Tested Power with ECU Recalibration: 86 kW to 131 kW (+52%)
• Tested Torque with ECU Recalibration: 361 Nm to 445 Nm (+23%)

Applications:

• Mitsubishi Pajero Sport (QE, QF): 2016-2025, 2.4L 4N15 Diesel
• Mitsubishi Triton (MQ): 2016-2020
