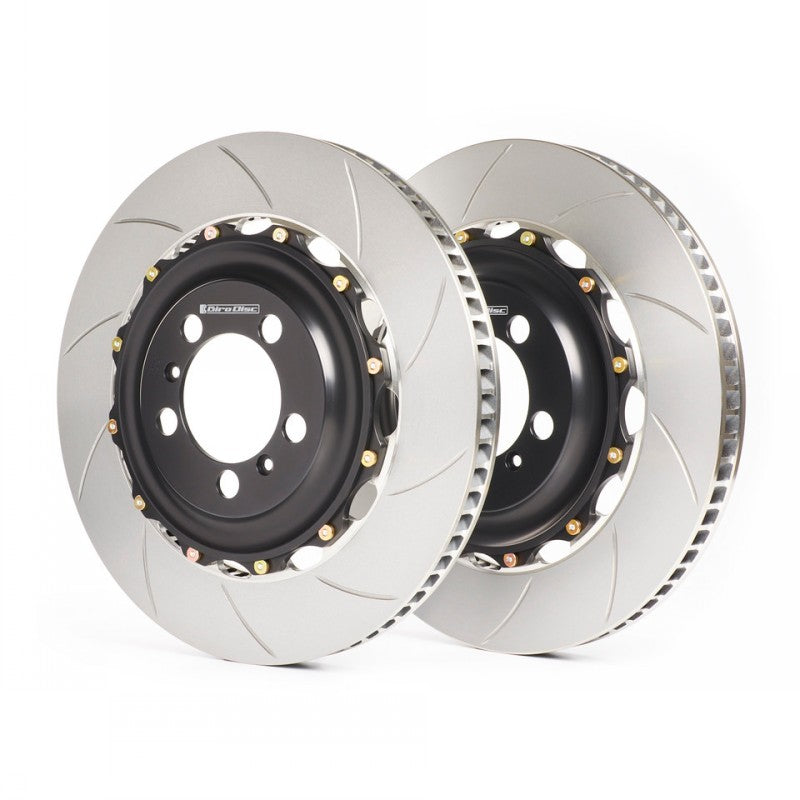

GIRODISC A2-266 Rear Brake Rotor Kit for PORSCHE Cayman GT4 Clubsport

The Girodisc system is a direct replacement for the OE cup car disc.  The disc will bolt directly to the car and work with OE calipers perfectly.

The central hat section of our rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum.  The disc is made from our own proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc.  The rotor utilizes a curved vane design, developed in racing to act as a centrifugal pump to force cooling air through the disc.

The rotor and hat have a floating mount system, which utilizes 12 high strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by class 12.9 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.

Once the Girodisc system is in place, simply replace the cast iron rotor when needed.

.

The rotor and hat have a floating mount system, which utilizes 10 high strength alloy steel drive pins, manufactured by Girodisc to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.

Once the Girodisc system is in place, simply replace the cast iron rotor when needed.

When used with performance pads and hi-temp fluid, you have what amounts to a truly amazing solution to overheating or warping rotors.

If your car same with OEM center lock wheels please select the center lock drive pin option.<

Specifications:

• Disc Finish: Curved Slotted
• Disc Vane Style: Curved Vane
• Material: Cast Iron
• Disc Type: Vented
• Disc Diameter (mm): 380
• Min Thickness (mm): 28,0
• Max Thickness (mm): 30,0
