Description HEL PERFORMANCE GRDIFF Rear Differential Oil Cooler Kit for TOYOTA GR Yaris (XP210) 2020-
Under aggressive driving conditions such as track days and some fast road scenarios, the differential on a GR Yaris can often experience excessive heat issues. To address this, this comprehensive kit was developed from scratch on a development vehicle. Testing indicates successful results.
This kit is confirmed to fit only pre-facelift Yaris GR models, as newer facelift models have an additional water tank in the boot where the oil pump is located, which may affect compatibility.

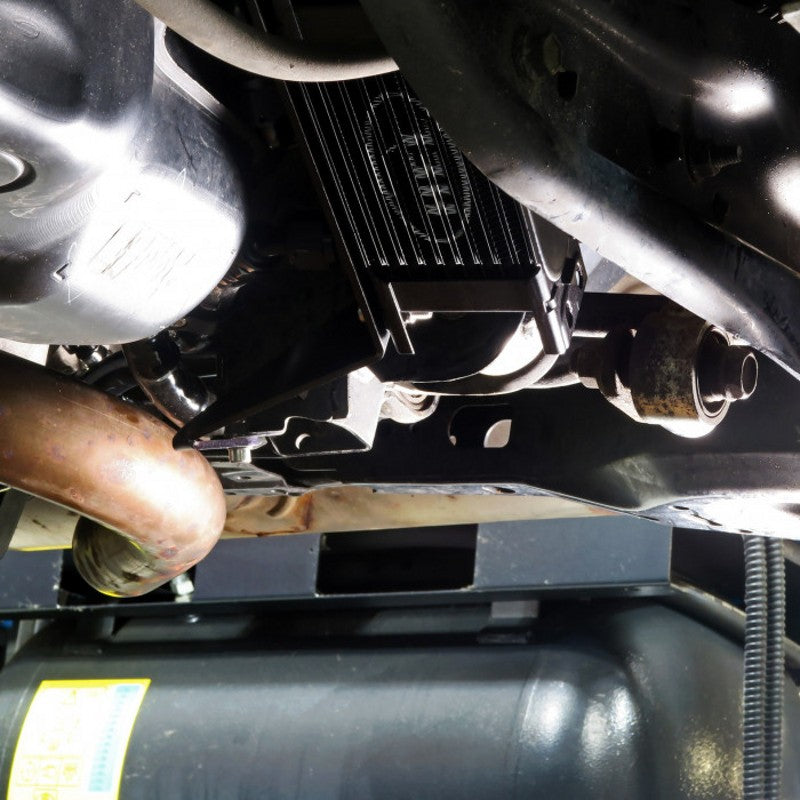

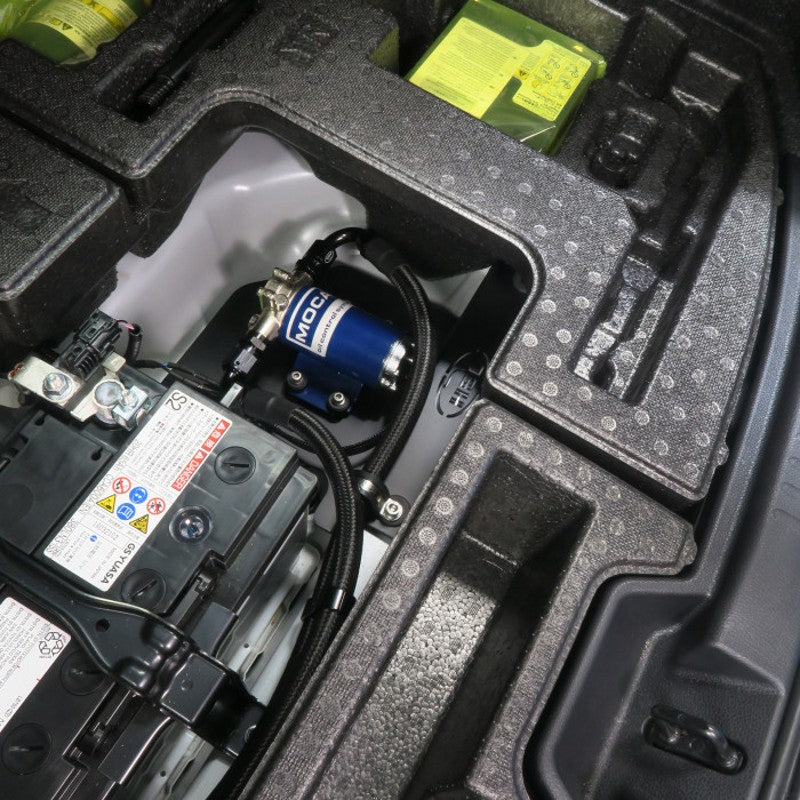

Once the differential oil reaches 82°C, the additional electric oil pump located in the boot activates, sending oil through the cooler positioned on the underside of the vehicle for maximum airflow. The race-proven Setrab oil cooler is used to lower the temperature of the differential oil to optimal levels, extending the lifespan of both the differential and the fluid. The kit also requires an additional 450ml of oil, which helps reduce the servicing period and aids in temperature management.
Recommendation: Installation by a specialist is recommended, as this kit has a 4.5/5 installation difficulty rating.
- Designed to address excessive differential heat during aggressive driving
- Activates oil cooling when differential oil reaches 82°C
- Uses a Setrab oil cooler for reliable temperature control
- Requires additional oil capacity for improved temperature management
Kit comes with:

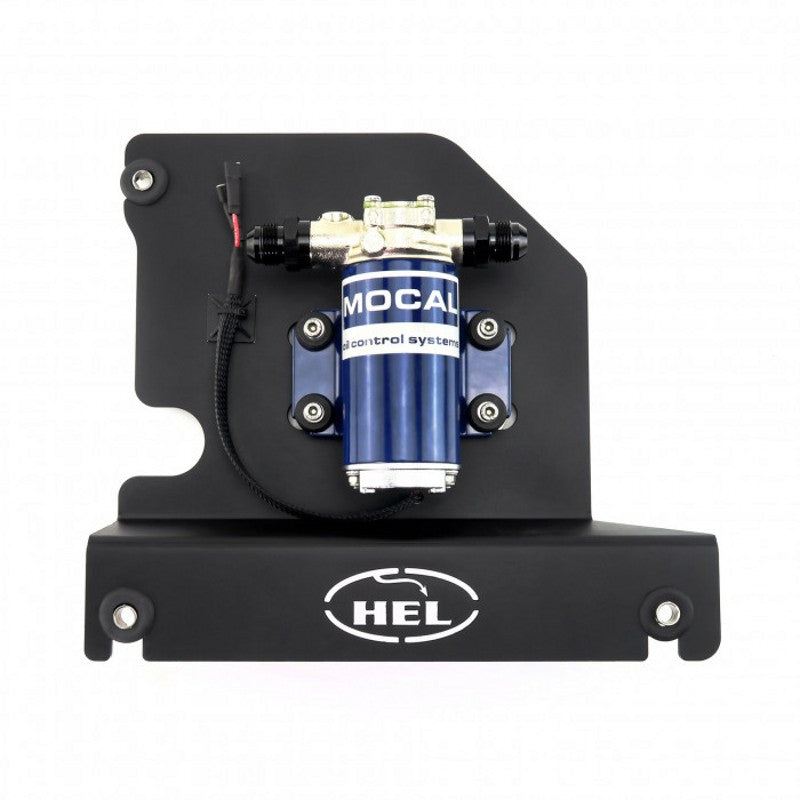

- Marco high-flow electric oil pump
- Custom HEL aluminium pump mounting bracket

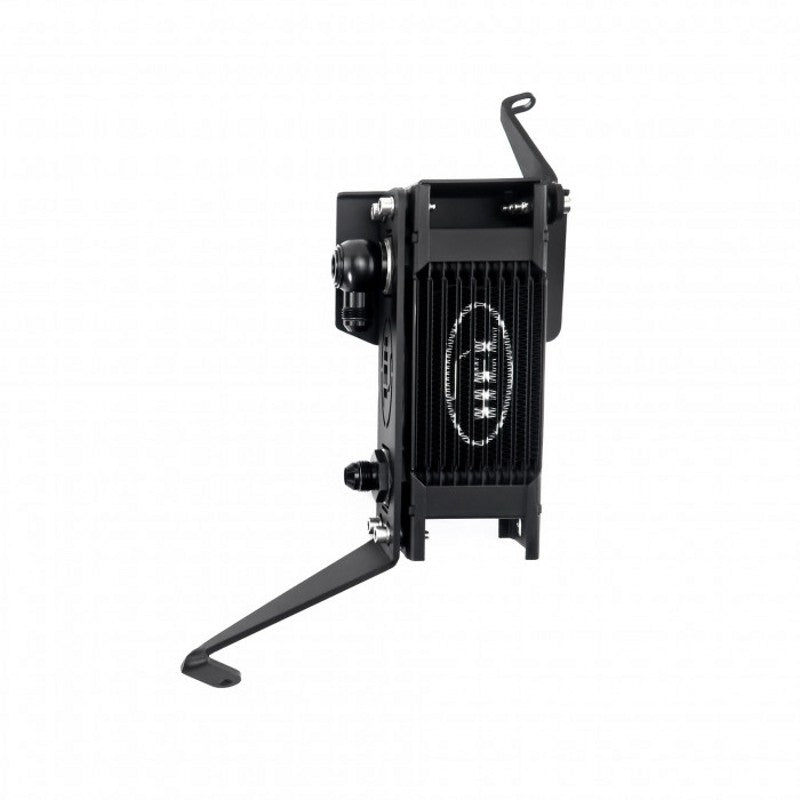

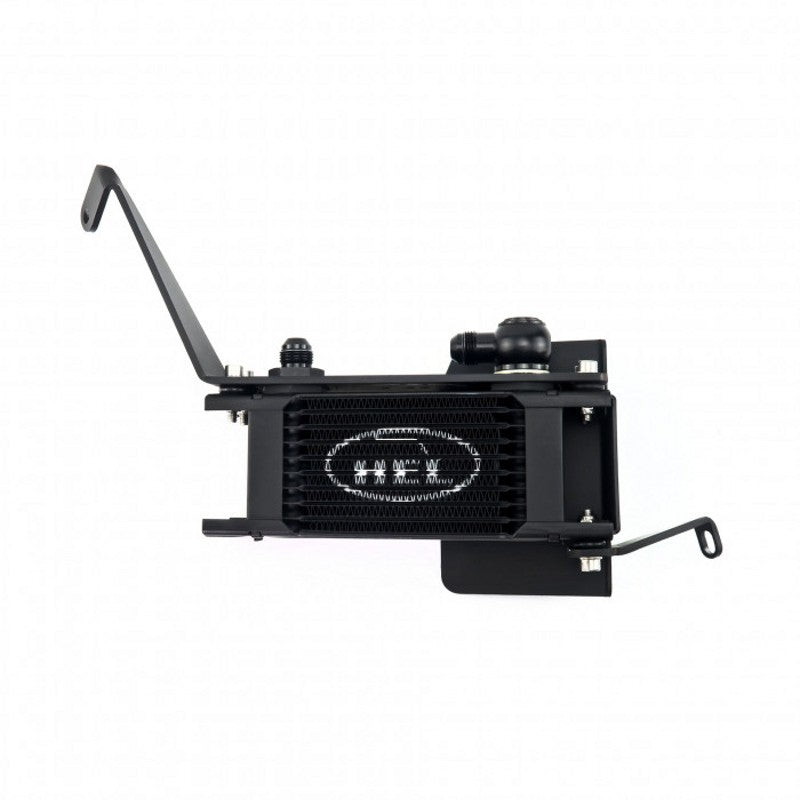

- Setrab Series 1 10 Row ProLine oil cooler
- Custom HEL aluminium oil cooler mounting bracket

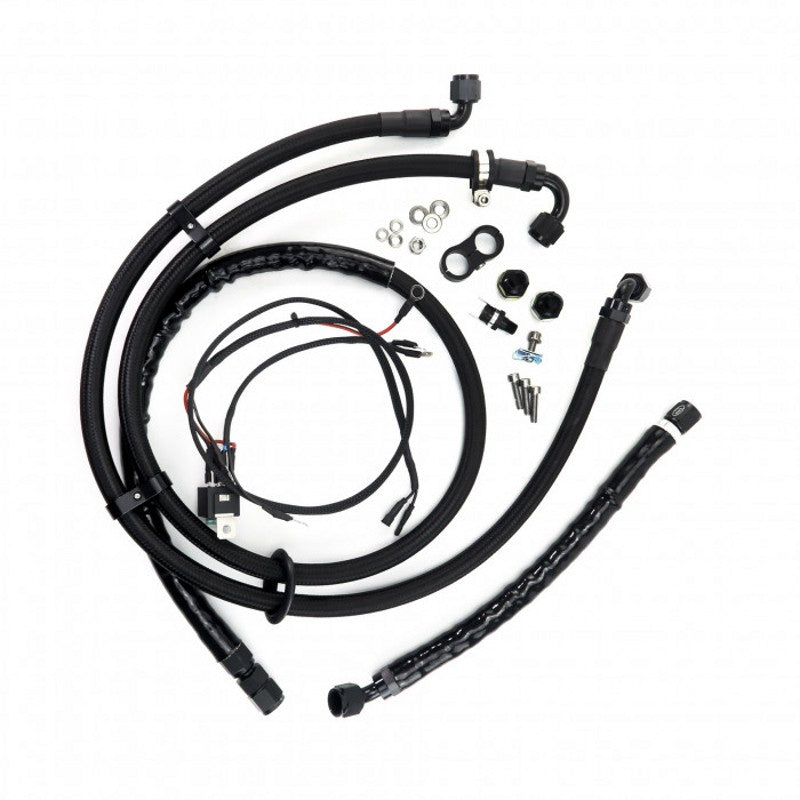

- Preassembled HEL braided hoses with anodised aluminium fittings (includes high temperature heat sleeve where required)
- Preassembled wiring harness with fused relay
- 82°C (179.6°F) thermostat switch
- All mounting hardware (includes aluminium hose separators and adapters)
- Installation instructions
