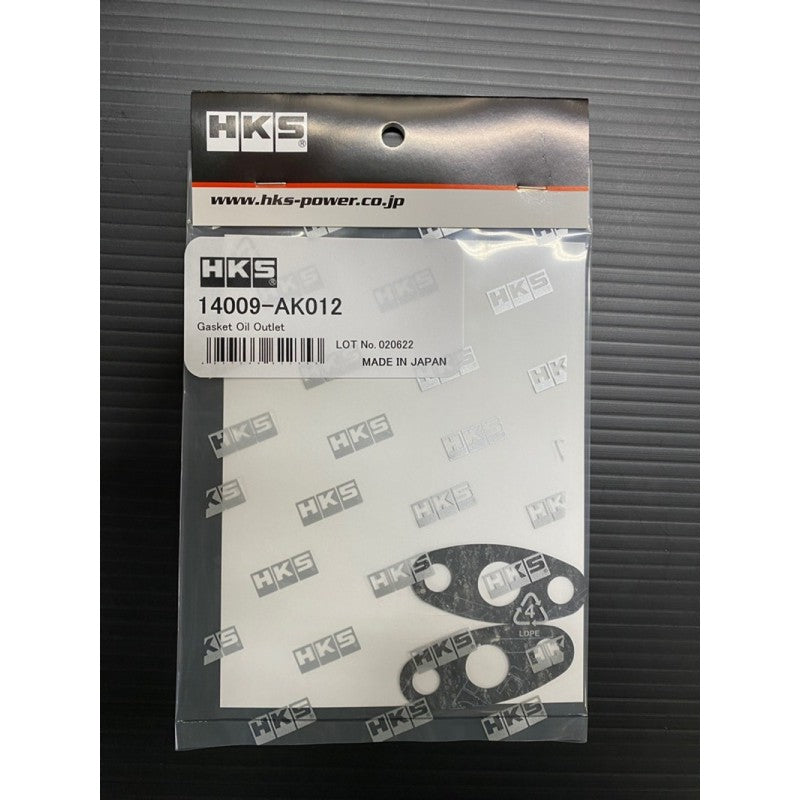

HKS 14009-AK012 Gasket for Oil Outlet GT49 Photo-0
HKS 14009-AK012 Gasket for Oil Outlet GT49 Photo-1

HKS 14009-AK012 Gasket for Oil Outlet GT49

€16,11

VAT included. Shipping calculated at checkout

HKS P/N: 14009-AK012 GTIN: 4957266622353
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

HKS 14009-AK012 Gasket for Oil Outlet GT49

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

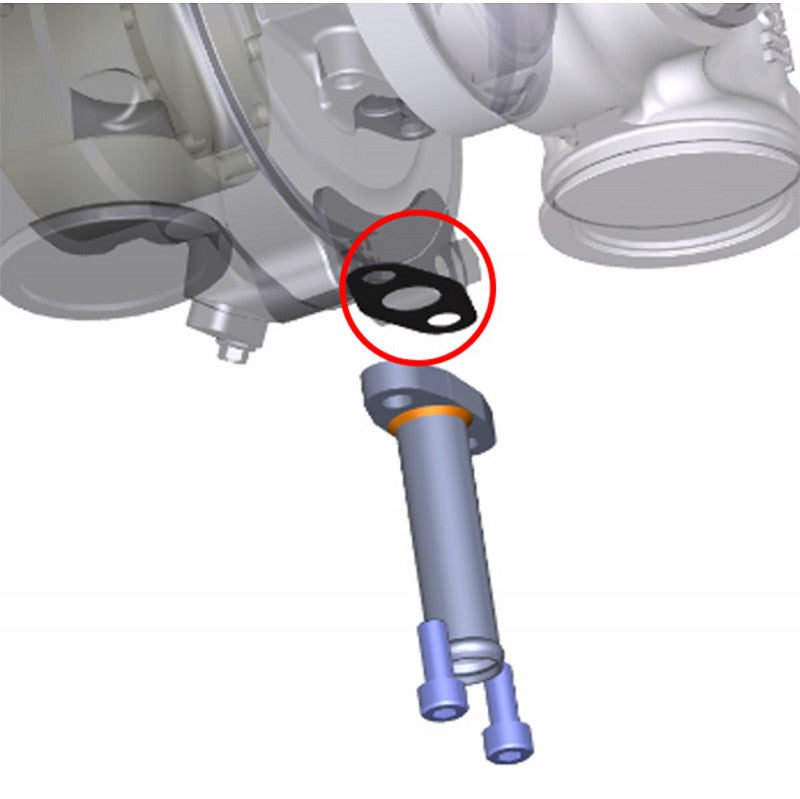

The gasket for the oil outlet for HKS GT Turbine Series. Functional spare parts for maintenance and repair.

Summary

  • Specially designed for the oil outlet shape in HKS GT Turbine Series (GT4950_BB, GT5565_BB, GT6290_BB).*
  • Compatible with the oil inlet for GT75100_BB, GT75115_BB

Specification

  • Compatible bolt size : M8
  • Mounting hole pitch : 38 mm
  • Flow path diameter: 13.5 mm
  • Thickness : 0.5 mm

Components

  • Gasket for Oil outlet * 2 pcs

Compatibility

  GT4950_BB GT5565_BB GT6290_BB GT75115_BB GT75115_BB
OIL INLET - - - ● ●
OIL OUTLET ● ● ● 14009-AK002 14009-AK002

* The existing 14008-AK001 cannot use because the outline of the gasket will contact the turbo main unit when attached.
