HKS 21004-AN022 Capacity Upgrade Kit BCD STEP-2 for NISSAN Sklyline GT-R (R32/R33/R34) RB26 2.8L

Sale price€11.756,01

VAT included. Shipping calculated at checkout

HKSP/N: 21004-AN022
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

HKS 21004-AN022 Capacity Upgrade Kit BCD STEP-2 for NISSAN Sklyline GT-R (R32/R33/R34) RB26 2.8L

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

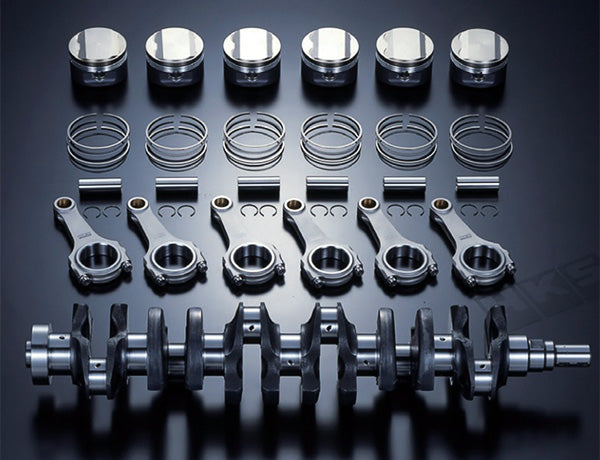

BCD Piston Kit + Connecting Rods + Crankshaft

Based on the 2.8L STEP2 kit and upgraded with lightweight, high-rigidity forged "BCD" pistons.

BCD = A bridge design is a truss structure that is employed at the back of the piston to enhance the rigidity of the piston.

Specifications

  HKS 2.8L KIT Stock
Bore 87.0mm 86.0mm
Stroke 77.7mm 73.7mm
Compression Ration (t=1.2) 8.7 -

Max RPM

9,000rpm 7,600rpm
Displacement 2,771cc 2,568cc

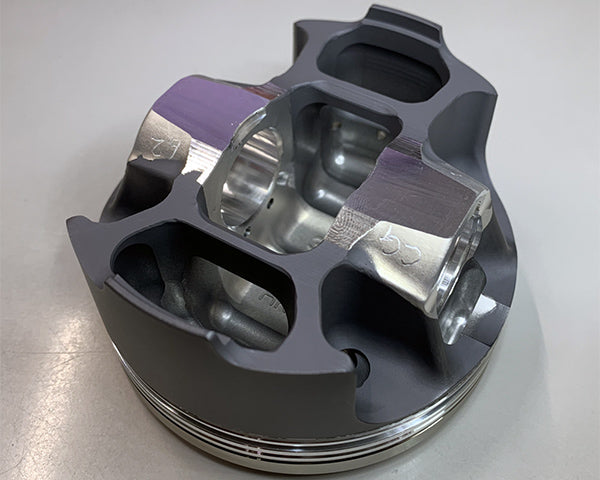

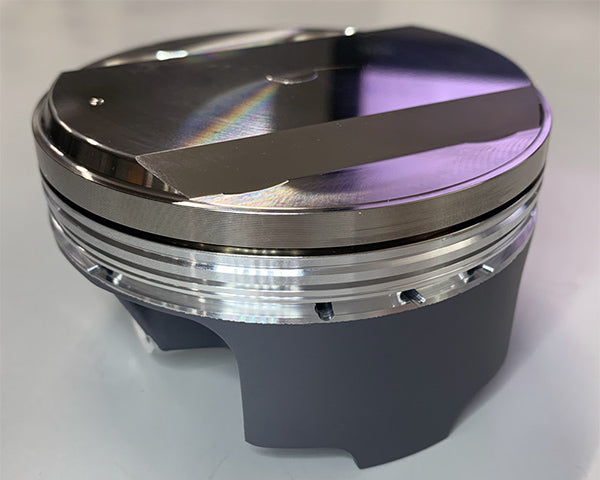

Piston Kit, Piston weight: 334g Piston Pin weight: 97g

  • Lightweight A2618 aluminum alloy billet piston with high temperature strength
  • Bridge design improves structural rigidity.
  • Profile optimization has shortened the Piston skirt height and reduced weight.
  • Short piston pit with lightweight boss part.
  • 2 layers of molybdenum coating to eliminate friction and improve initial functionality of the whole system.

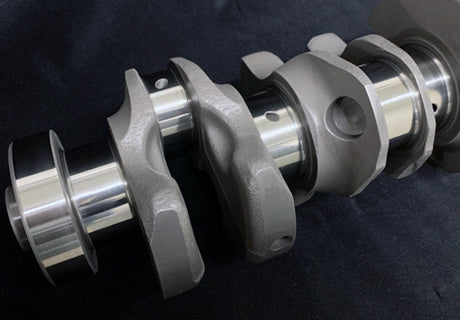

Crankshaft Stroke 77.7 mm

  • Billet full counter crankshaft
  • Counterweights are efficiently located to decrease overall weight and improve overall balance.
  • Response is improved by reducing the weight of the pin journal and the center section by cutting the core of the pin journal to reduce the weight.

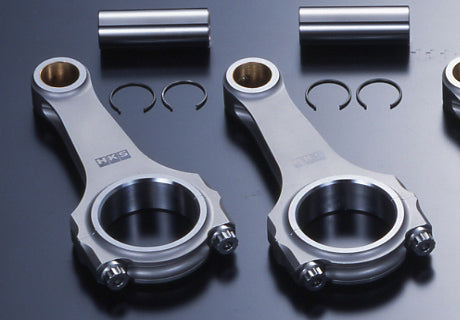

Connecting rods

  • Nickel Chrome Steel Billet H-Beam Connecting rods.
  • WPC treatment to improve strength

CAPACITY UPGRADE KIT RB26 2.8L LINEUP

  STEP ZERO STEP 1 STEP 2 NEW STEP 3 NEW HIGH RESPONSE
Concept & Target Capacity upgrade in engine O/H
Mainly driving in street
Improve response at an affordable price
Improve torque & power by capacity and turbo upgrade
Increase allowable RPM by high lift camshaft
Increase more power by big turbo without losing response
Increase allowable RPM by high lift camshaft
Mainly for track race
Next stage of STEP2 in high power and response
Latest technology for ultimate performance
Ultimate response with new designed ultra lightweight components
Latest technology for ultimate performance
Recommend Turbo Stock GTIII-SS GTIII-SS GTIII-2530 GTIII-RS GTIII-4R GTIII-5R GTIII-2530
Allowable RPM 8000rpm 8500rpm 9000rpm 9000rpm 9000rpm
Comp. ratio (t=1.2) 8.7 8.7 8.7 8.7 8.7
Max power (approx.) 550PS 600PS 800PS 900PS 700PS
Piston Forged φ86.5 or 87 - 21pin Forged φ86.5 or 87 - 21pin Forged φ87 - 21pin
Nickel plating
OBER coating
A2618 alloy billet φ87 - 22pin
Bridge Structure
Double-layer MOLYBDEN coating
A2618 alloy billet φ87 - 22pin
Bridge Structure
Double-layer MOLYBDEN coating
Piston Weight 401g 401g 401g 324g 324g
Piston Pin φ21 (105.2g) φ21 (105.2g) φ21 (105.2g) φ22 (97g) φ22 (97g)
Connecting Rod HKS Forged billet H-beam φ2
(SCM)
HKS Forged billet H-beam φ21
(SCM)
HKS Forged billet H-beam φ21
(SNCM)
HKS Forged billet H-beam φ22
(SNCM)
HKS Forged billet H-beam φ22
(SNCM)
Crankshaft Forged lightweight full counter
(20.1kg)
Forged full counter
(24.4kg)
Forged full counter
(22.9kg)
Billet full counter
(20.6kg)
Billet full counter
(19.3kg)
Moment of inertia Ratio
?to STEP ZERO)
100% 132% 119% 113% 102%
Allowable Torque 55 kgf?m 60 kgf?m 80 kgf?m 120 kgf?m 70 kgf?m
