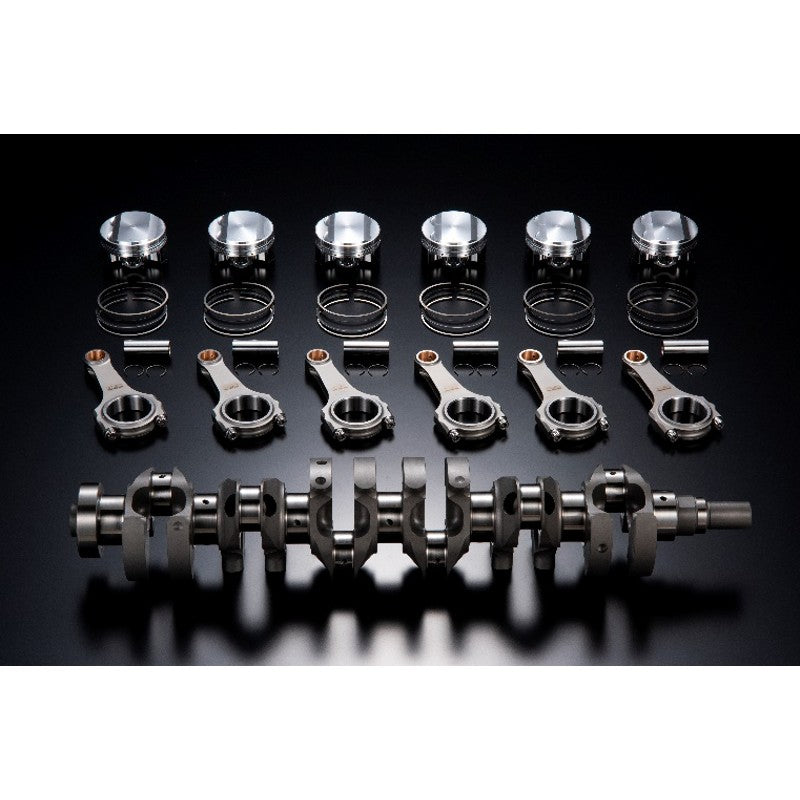

Based on the 2.8L STEP 2 kit and upgraded with lightweight, high-rigidity forged "BCD" pistons.

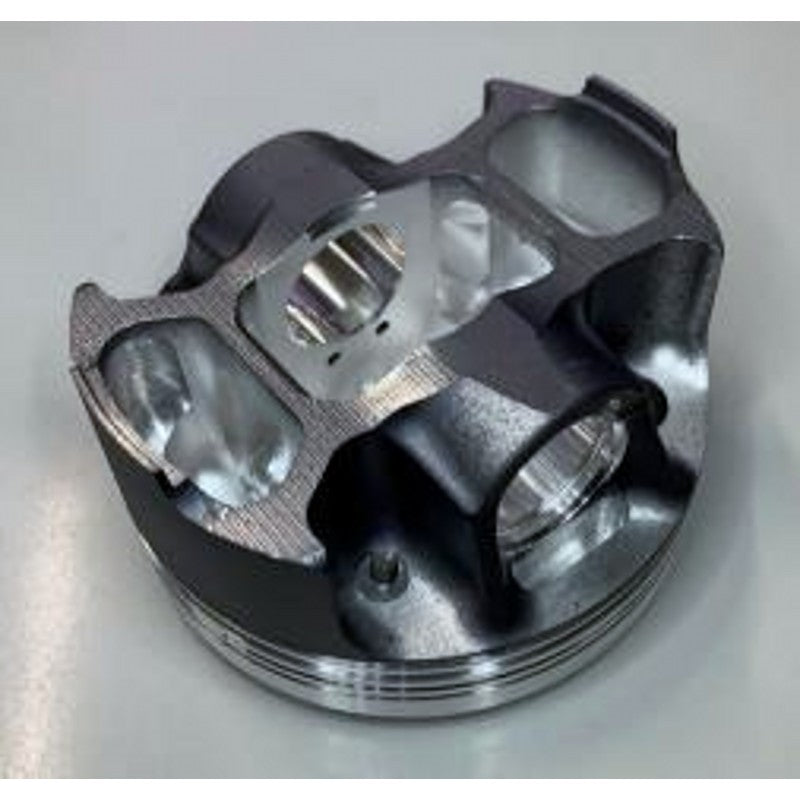

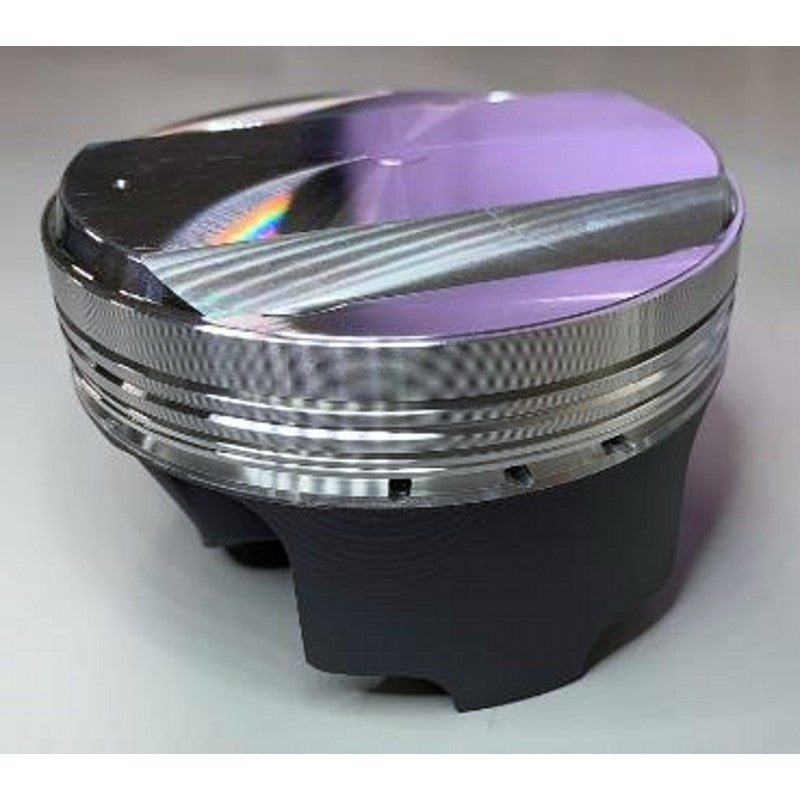

Piston Kit
- It achieves a thin wall by employing the A2618 alloy, which is resistant to high temperatures.
- We have increased rigidity structurally by adopting a bridge structure.
- Profile optimization has shortened the Piston skirt height and reduced weight.
- Short piston pit with the lightweight boss part.
- Friction is reduced with a two-layer coating of fluorocarbon resin and molybdenum.

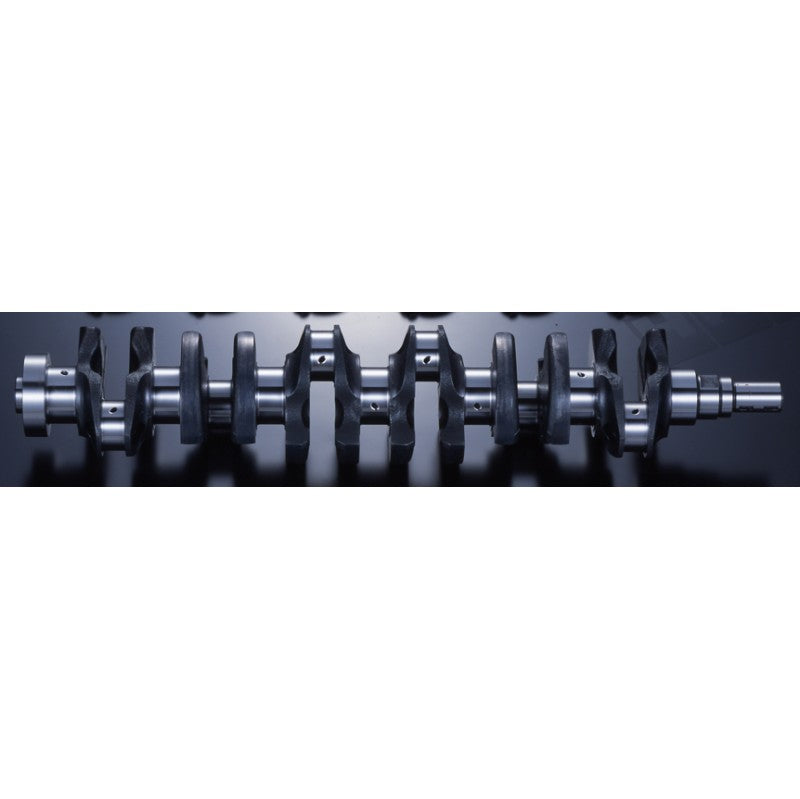

Crankshaft stroke 77.7 mm
- The exclusive material is used, and adopting a full counter provides a good rotation balance and makes it possible for high rotation.
- The response improves by reducing the weight of the pin journal and the center part.

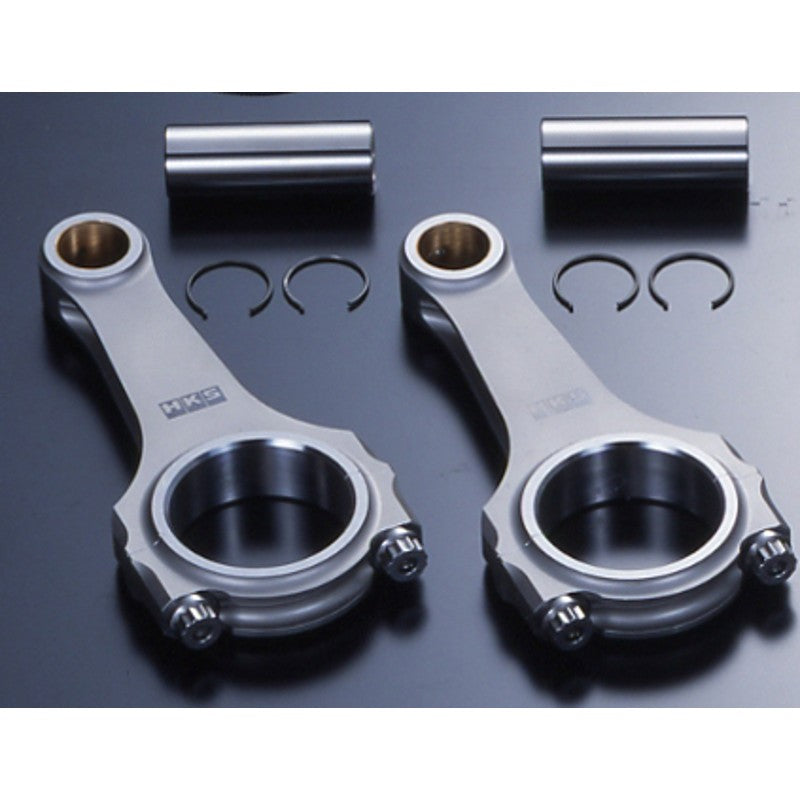

Connecting Rod
- Exclusive forged material is used. An H-beam is adapted to withstand a powerful explosion load. WPC treatment is applied to the surface to improve fatigue strength.
Specification
|
| HKS 2.8L KIT | Stock |
| Bore | 86.5 mm | 86.0 mm |
| Stroke | 77.7 mm | 73.7 mm |
| Compression Ratio (t=1.2) | 8.7 | - |
| Allowable rotating speed | 9,000 rpm | 7,600 rpm |
| Displacement | 2,740 cc | 2,568 cc |
