The favored HKS V-CAM system for RB26 without VALCON type is newly launched.

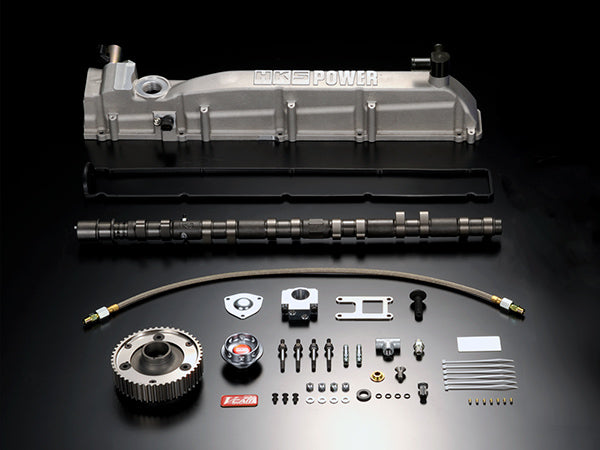

Kit includes
* HKS V-CAM system with VACLON type for RB26 sold separately.
- Special V-CAM shaft
- Variable valve timing unit (Vane type controller for high torque. Pulley with nickel plating.)
- Intake side special cylinder head cover. (HKS original casting product. No paint. Includes special logo plate.)
- V-CAM sensor harness. (F-CON V Pro 3.4 connected terminal)
- Oil control valve (Electromagnetic)
- Cam angle sensor (Highly accurate type)
- Oil lines (between the hydraulic take-out section of the engine side and the cylinder head cover.)
- Other short parts
Precautions for Use
| STEP 1 | STEP 2 | Step Pro | |
|---|---|---|---|
| Variable Valve Timing Control Unit | F-CON V Pro ver. 3.4 or VALCON type RB26 | ||
| CAM Shaft (EX) | STEP 1 (256° or 264°) | STEP 1 (272°) | STEP 2 (272° or above) |
| Valve Spring | Stock | Recommends HKS enhanced parts (If increasing allowable rotating speed) |
needs HKS enhanced parts |
| Allowable rotating speed | 8000 rpm | 8000 rpm or 8500 rpm in using with the HKS valve spring |
8800 rpm |
| Cylinder head Modification | No | No | Yes, a process to secure the clearance of the cam lobe is needed. |
| Piston | Stock | HKS Piston (To secure the clearance between the valve and the piston) |
|
| Oil Pump | Recommends HKS enhanced parts | ||
| Engine Oil | Recommend HKS SUPER TURBO RACING 15W50 or HKS Racing Pro 10W50 |
||
| Timing Belt | Inspect the wear or tension each drive 10,000 km. Adjust them if necessary. | ||
| Other | The valve timing may not reach the target value due to insufficient hydraulic pressure when the viscosity is low. It cannot have an advanced angle when the water temperature of 60 degrees or lower. |
||
