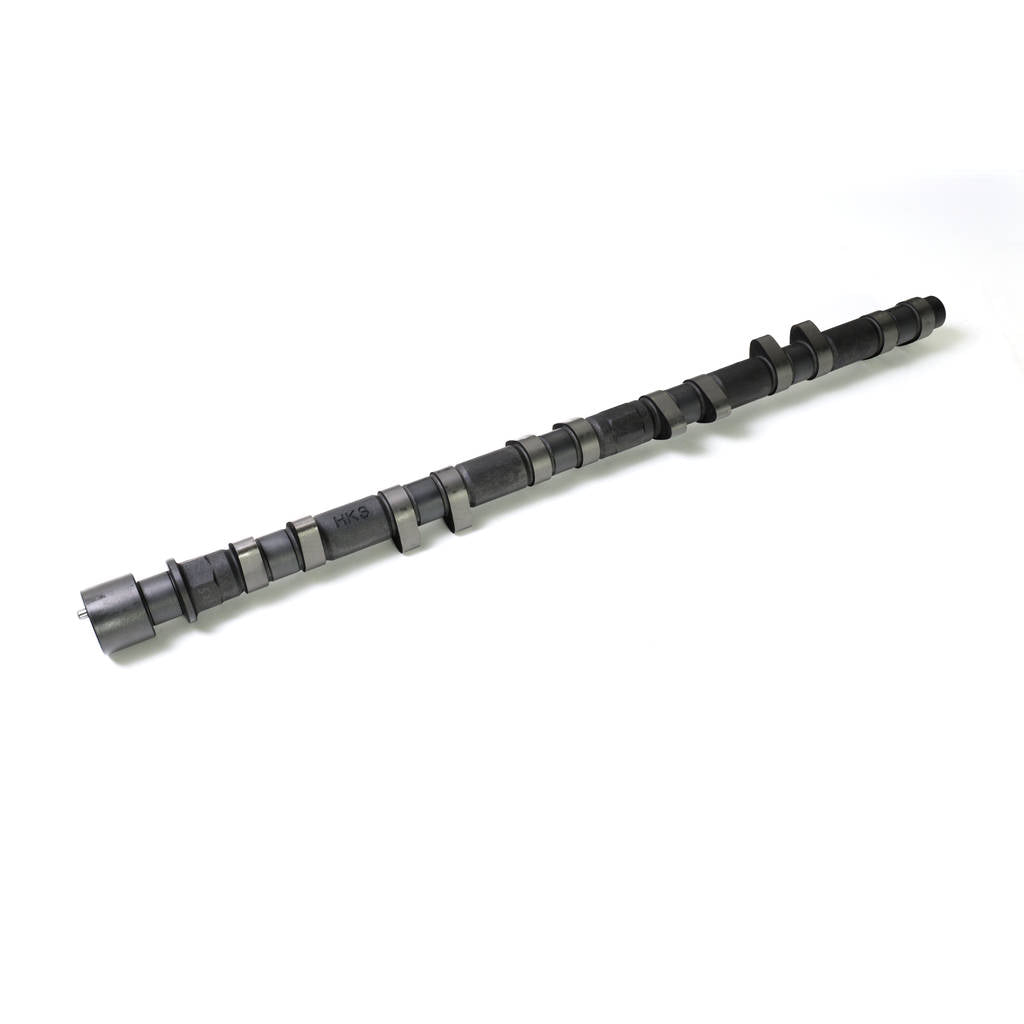

HKS 2202- RN133 Exhaust Camshaft RB26 STEP2 280 for NISSAN Skyline GT-R (R32 / R33)

Description HKS 2202- RN133 Exhaust Camshaft RB26 STEP2 280 for NISSAN Skyline GT-R (R32 / R33)

A high-lift camshaft with proven performance in complete engines is now available as a standalone product. It is optimally matched for use with the V CAM SYSTEM STEP Pro.

With a 280° duration and 10.2 mm valve lift, it delivers a smooth, free-revving feel with strong pull all the way to high RPM.

Note: The allowable engine speed is approximately 10,000 rpm when used with HKS reinforced valve springs (STEP2).

Recommendation: Use in combination with the RB26 V CAM SYSTEM STEP Pro (22007-AN022) is recommended.

Warning: Failure to observe the following precautions may result in engine damage.

Requirement: Use in combination with the HKS STEP2 reinforced valve springs (22001-AN001) is required.

Installation Note: Cylinder head machining is required to avoid interference with the cam lobes.

Important: Set the allowable engine speed to the lower limit specified for the combination with the Intake camshaft.

• High-lift camshaft for the RB26DETT engine
• Optimally matched for use with the V CAM SYSTEM STEP Pro
• 280° duration
• 10.2 mm valve lift

Specifications:

• Engine: RB26DETT
• Total advance duration: 280°
• Valve timing: 113°
• 0 mm valve lift: Open (BBDC) 79°, Close (ATDC) 49°, Lobe center (BTDC) 105°, Total cam duration 308°
• 1 mm valve lift: Open (BBDC) 55°, Close (ATDC) 9°, Lobe center (BTDC) 113°, Total cam duration 244°
