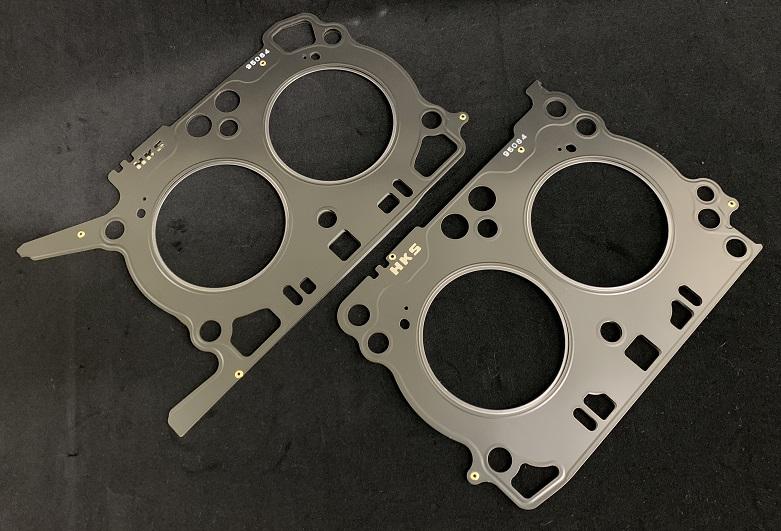

HKS 23002-AT004 Grommet Type Head Gasket t=0.8 for FA24 Photo-0

HKS 23002-AT004 Grommet Type Head Gasket t=0.8 for FA24

€414,11

VAT included. Shipping calculated at checkout

HKS P/N: 23002-AT004 GTIN: 4957266643358
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

HKS 23002-AT004 Grommet Type Head Gasket t=0.8 for FA24

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

A grommet-type head gasket that supports the tuning of a vehicle with a turbocharger.

  • It improves the sealing limit by securing the surface pressure of the gasket sealing surface by employing the grommet structure.
  • We also have the gasket with a thickness of t = 1.2 mm, which can lower the compression ratio for dimensional correction during overhaul and for those who use it at high boost pressure.
  • Buckling may cause between the cylinder head and the sealing surface of the cylinder block due to applying increased surface pressure.

Compression ratio at the cylinder head without resurfacing

Gasket Thickness (mm)

OEM 2.4L

HKS 2.5L KIT

0.6 mm (OEM)

12.5

12.2

0.8 mm (HKS)

12.2

11.8

1.2 mm (HKS)

11.6

11.3

Note: The compression ratio comes from using the HKS Piston Full Kit FA24 2.5L HIGH COMP STEP 1 or 2.
