HKS 23011-AF002 Short Block EJ20 2.2L for SUBARU
Quantity:
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

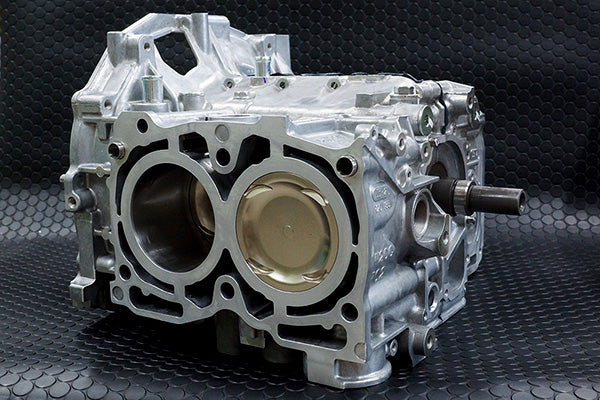

A short block that including the EJ20 2.2L Capacity Upgrade kit
- Installed the Capacity Upgrade Kit EJ20 2.2L to a brand-new block cylinder.
- Inside of the cylinder block is provided with clearance for installing the capacity upgrade kit.
- Providing 0.5mm oversized boring processing using dummy head jig for improving cylinder accuracy.
- The top surface of the right/left deck is polished.

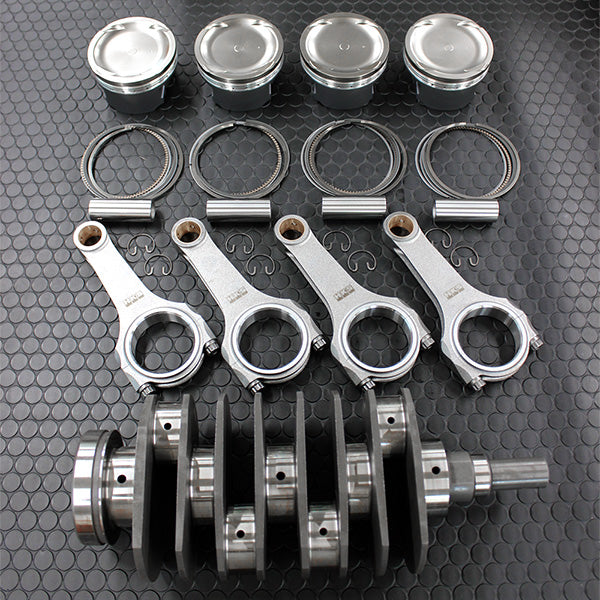

EJ20 2.2L Capacity Upgrade kit installed
Special Forged Piston
- Top surface > Ni plating
- Piston skirt > OBER COAT®
- Special piston ring
Connecting Rod
- Billet H-beam
Billet Special Crankshaft
- All billet
- Full counterweight
Specifications
HKS 2.2L KIT | Stock | |
---|---|---|
Bore | 92.5mm | 92.0mm |
Stroke | 79.0mm | 75.0mm |
Compression Ratio (t=0.7) | 8.34 | - |
Displacement | 2,124cc | 1,994cc |
SHORT BLOCK EJ20 2.2L
Block Modifications | Connecting rod side clearance |
---|---|
0.5 mm oversize boring | |
Deck surface polish | |
Main Bolt | SUBARU product |
Piston | HKS forged piston 0.5 mm oversize |
Connecting Rod | HKS billet H-beam |
Crankshaft | HKS billet |
Main Bearing | SUBARU product |
Connecting Rod Bearing | SUBARU product |
Remarks: Compatible with GRB/GVB applied model C-E and VAB. Including crank keys.
