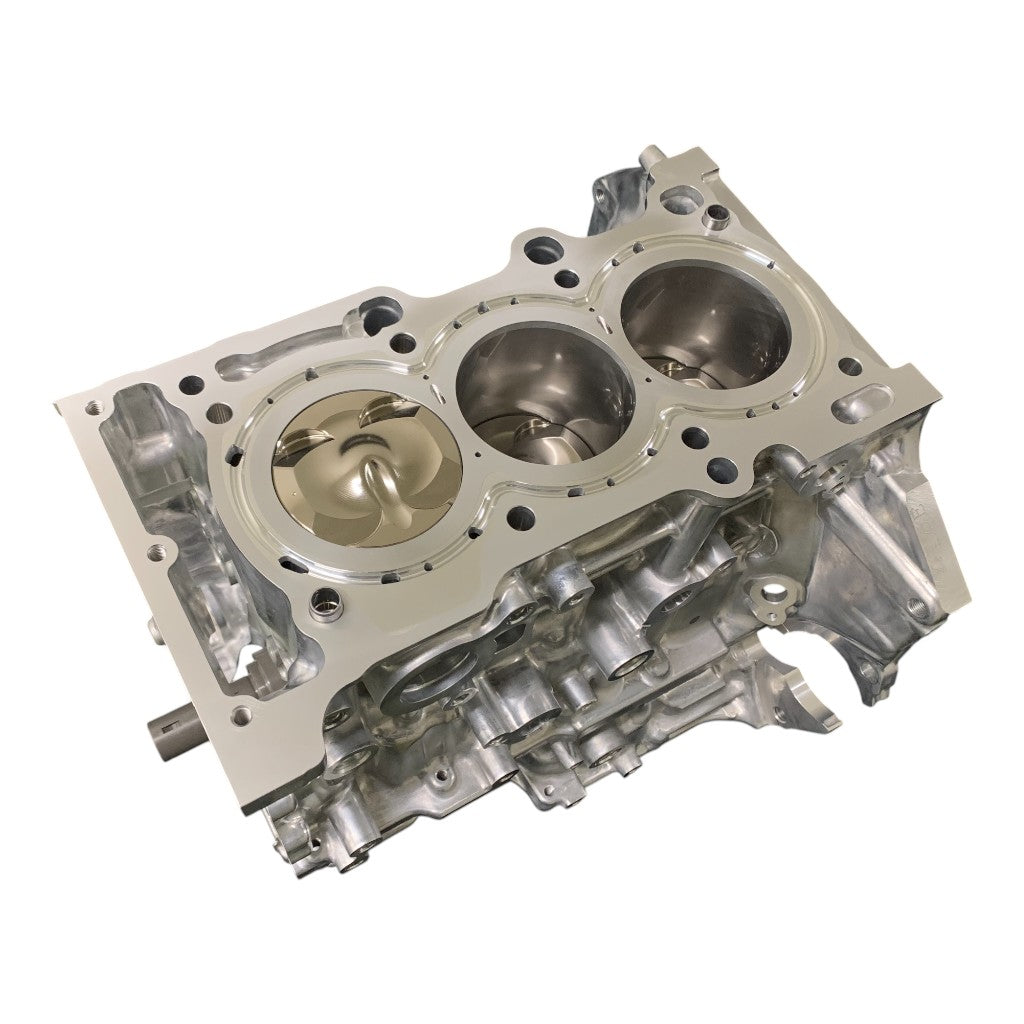

HKS 23011-AT009 Short Block G16E 1.75L STEP3 for TOYOTA GR Yaris / GR Corolla (G16E-GTS) Photo-0

HKS 23011-AT009 Short Block G16E 1.75L STEP3 for TOYOTA GR Yaris / GR Corolla (G16E-GTS)

Sale price€26.589,72

VAT included. Shipping calculated at checkout

HKS P/N: 23011-AT009 GTIN: 4957266632246
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

HKS 23011-AT009 Short Block G16E 1.75L STEP3 for TOYOTA GR Yaris / GR Corolla (G16E-GTS)

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

HKS Short Block G16E 1.75L H-Comp Triple Tumble Step3 Closed-Deck is the ultimate upgrade for high-output and high-boost applications for the G16E-GTS engine. Precision-manufactured with cutting-edge technology, this short block is designed to deliver maximum performance and durability.

Application: Toyota GR Yaris (GXPA16) and Toyota GR Corolla (GZEA14H) with G16E-GTS engine.

  • High-Compression "Triple Tumble" Pistons: Unique design generates tumble flow to suppress knocking and enables high-boost, high-compression tuning.
  • STEP3 Closed Deck Processing: Suppresses cylinder deformation and supports high combustion pressure while optimizing cooling flow with additional water jackets.
  • Precision Ground Deck Surface: Ensures flatness for maximum reliability.
  • Bored and Honed Cylinders: Improved cylindricity for enhanced engine performance and durability.
  • STEP3 Machined I-Beam Connecting Rods: 25% stronger than stock, improving allowable torque capacity.
  • Machined Full-Counter Crankshaft: Chrome steel construction with optimized counterweight positioning and reduced inertia weight.
  • Durable Bearings: Equipped with high-load resistant main and connecting rod bearings.

Important Note: Stock balance shafts cannot be used with this setup.

  • Bore: HC-TT KIT 88.0mm; Stock 87.5mm
  • Stroke: HC-TT KIT 95.7mm; Stock 89.7mm
  • Capacity: HC-TT KIT 1,746cc; Stock 1,618cc

Recommended for use with:

  • Head Gasket HKS 23002-AT007 Grommet Super Cooling Pro t-0.8 mm / HKS 23002-AT008 Grommet Super Cooling Pro t-1.0 mm
  • HKS 22999-AT001 Head Suds Kit Pro
  • HKS 52001-AK068 Engine Oil Racing Pro 10W50
