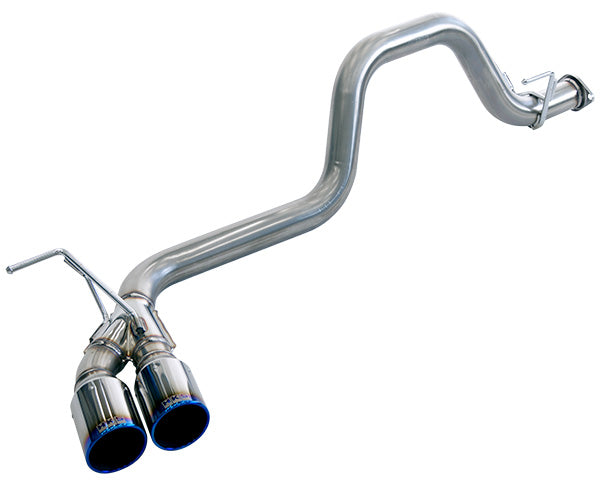

HKS 31021-AT007 Exhaust System LEGAMAX TRAILMASTER for TOYOTA Hilux (GUN125)

Stylish and impressive appearance exhaust

LEGAMAX TRAILMASTER is the most suitable muffler for an SUV user who wants to drive smart at any time.
This side exhaust tip layout is designed not to disturb loading/unloading cargos at the cargo area and allows attaching a trailer hitch. (Some models are not side exhaust tip layout)
This sport muffler having both exhaust efficiency and sound control ability at a higher level by reflecting its own exhaust technologies acquired from the existing HKS muffler series.

The side exhaust tip layout allows to attach a trailer hitch and looks wild.
It is designed not to disturb using the cargo area.
*The settings will be different depends on the early or late model.

• Shape of muffler: KC-1 (Titan)
  (LEGAMAX TRAILMASTER)
• Main material: S304
• Diameter of tip: 90 x 2 (Ti)
• Diameter of center pipe : 65 Ц 60.5 x 2 (*1)
• Close noise level: Stock: 70, HKS: 72
• Clearance: 360mm

Remarks

A vehicle with a towing hitch other than those made by SOREX is not confirmed.

About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.
