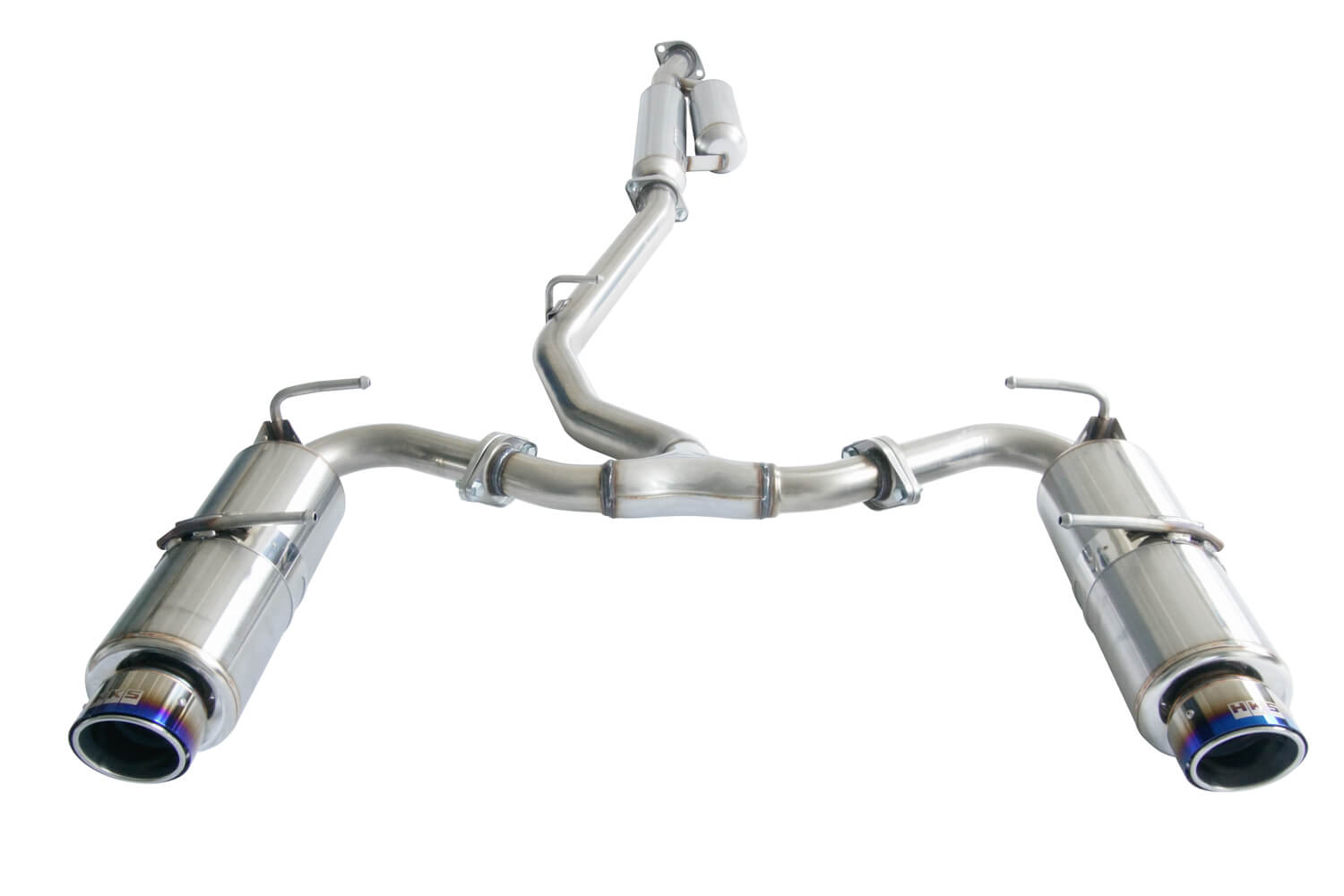

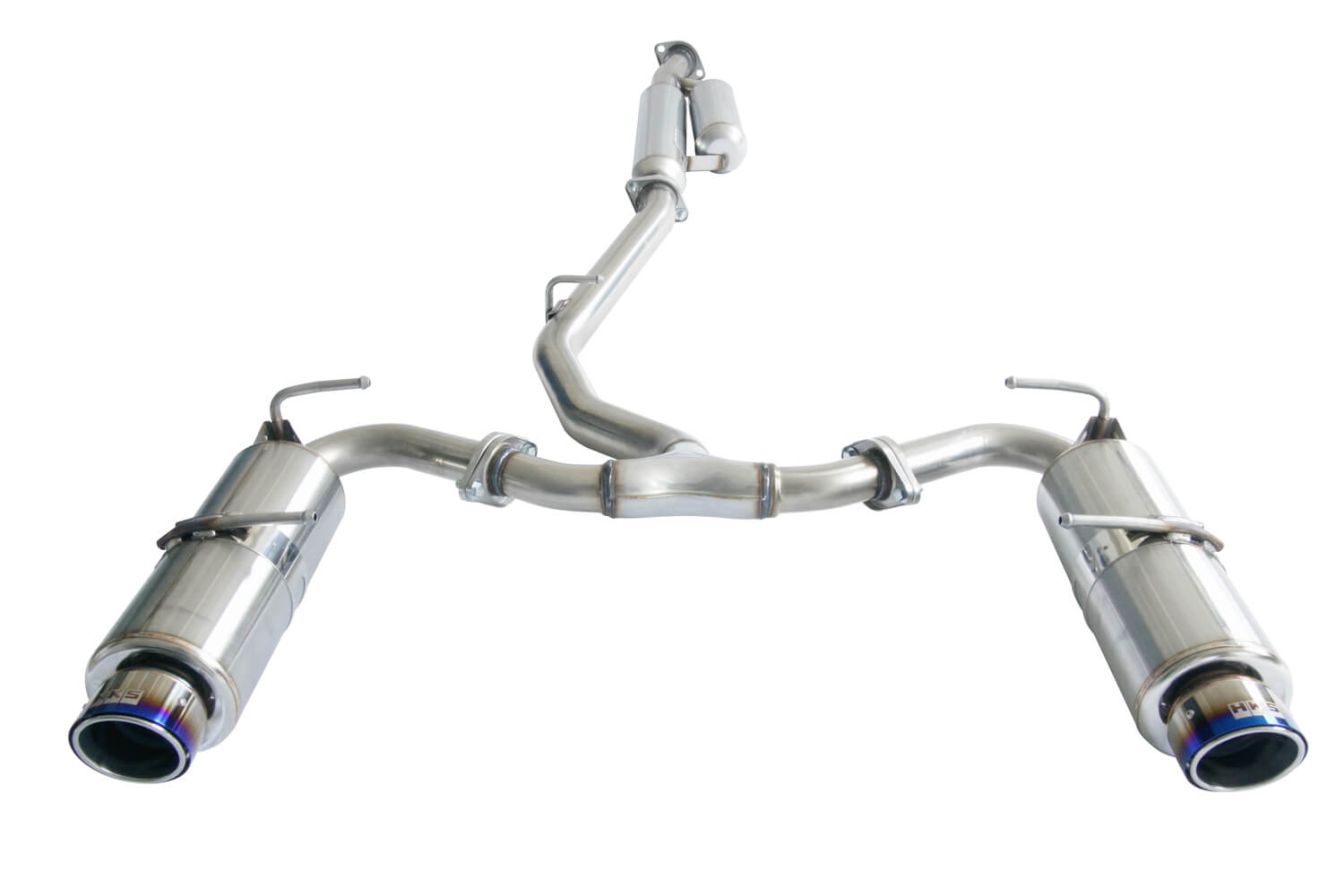

HKS 32016-AF101 Exhaust system Hi-Power SPEC-L2 for Subaru BRZ ZD8 FA24
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
HKS 32016-AF101 Exhaust system Hi-Power SPEC-L2 for Subaru BRZ ZD8 FA24
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany

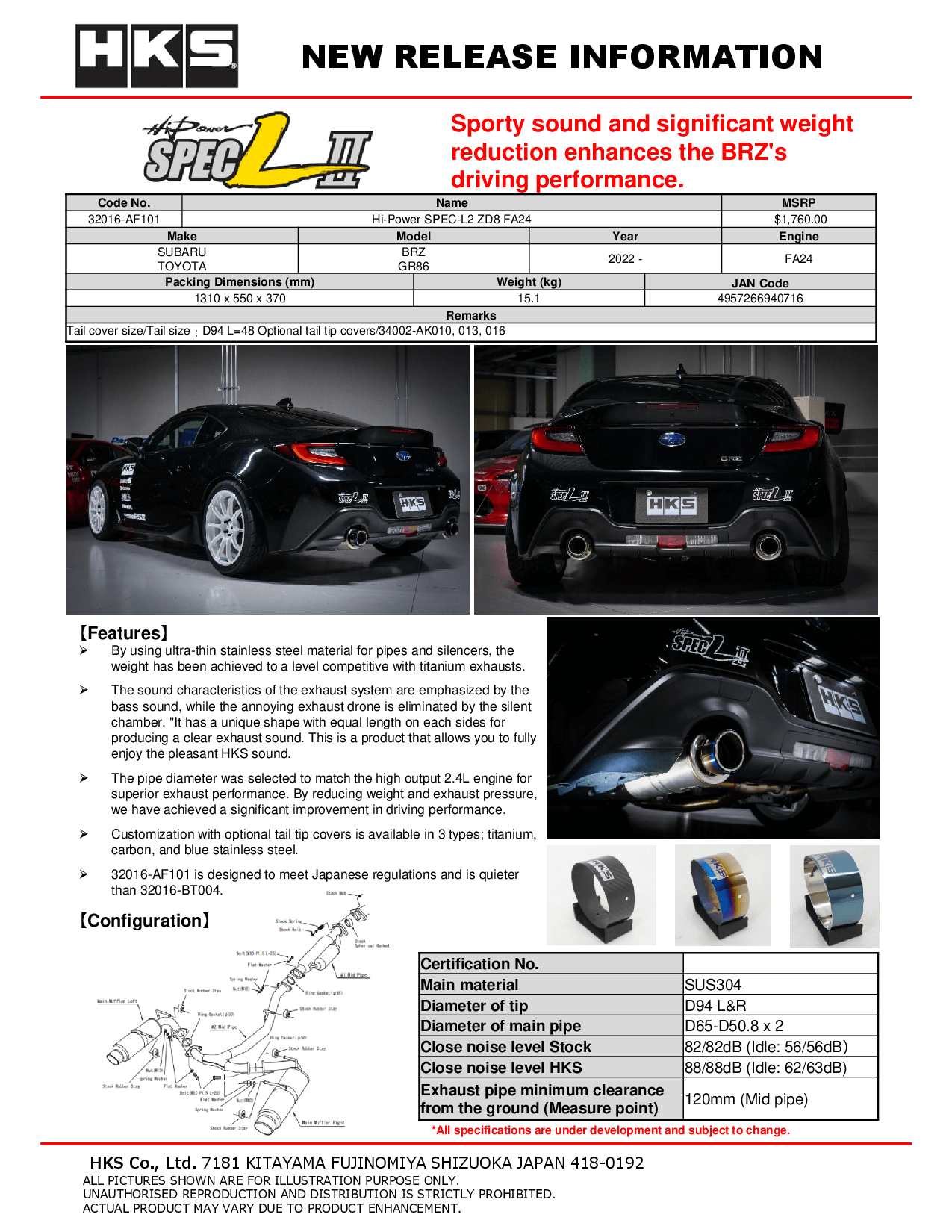

Code No. 32016-AF101

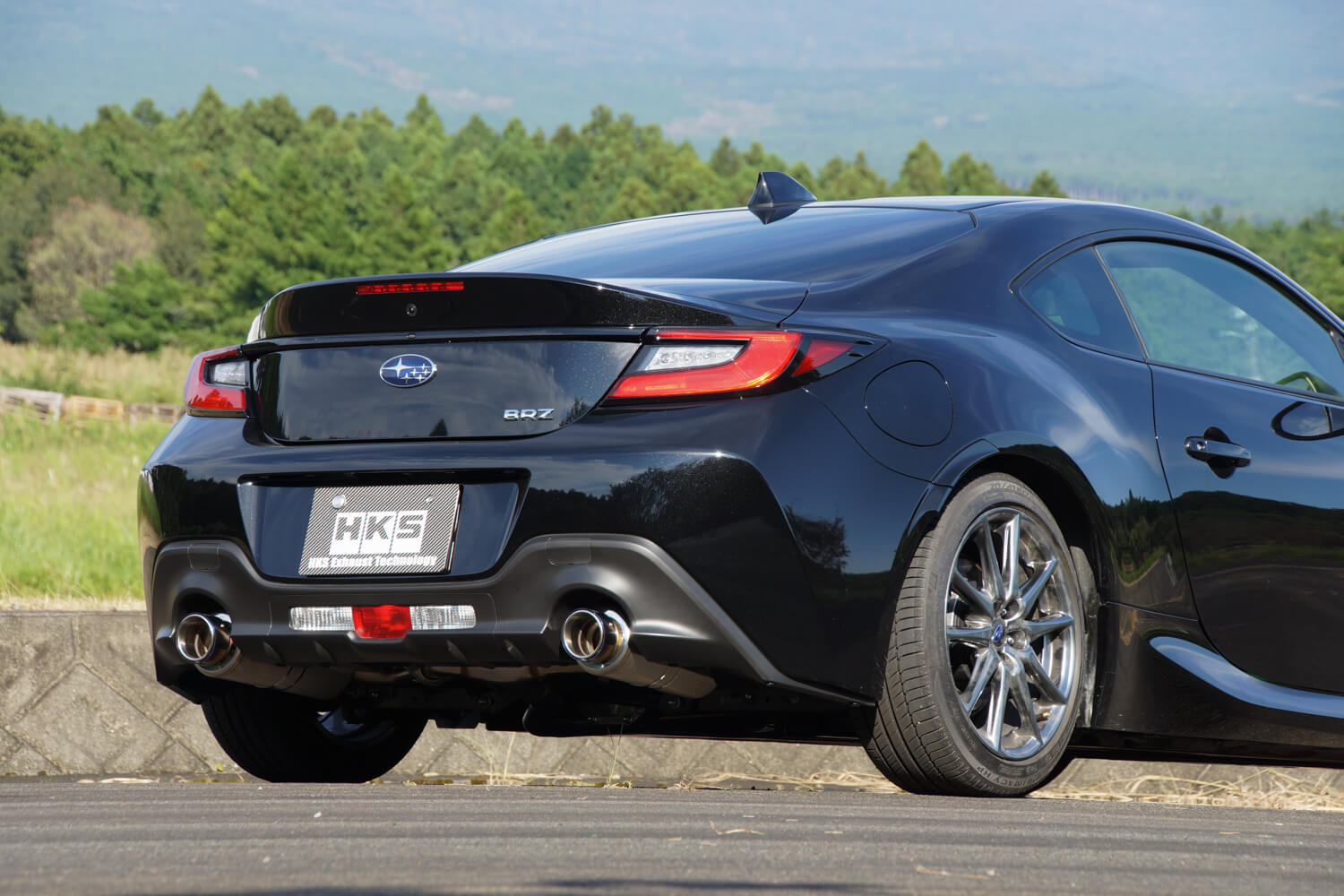

Sporty sound and significant weight reduction enhances the BRZ's driving performance.
- By using ultra-thin stainless steel material for pipes and silencers, the weight has been achieved to a level competitive with titanium exhausts.
- The sound characteristics of the exhaust system are emphasized by the bass sound, while the annoying exhaust drone is eliminated by the silent chamber. "It has a unique shape with equal length on each sides for producing a clear exhaust sound. This is a product that allows you to fully enjoy the pleasant HKS sound.
- The pipe diameter was selected to match the high output 2.4L engine for superior exhaust performance. By reducing weight and exhaust pressure, we have achieved a significant improvement in driving performance.
- Customization with optional tail tip covers is available in 3 types; titanium, carbon, and blue stainless steel.
- 32016-AF101 is designed to meet Japanese regulations and is quieter than 32016-BT004.
| Cert. No. | JQR40214118 |
|---|
| Vehicle | BRZ |
|---|---|
| Model | ZD8 |
| Engine | FA24 |
| Model Year | 21/08 - |
| Shape of muffler | HP (Hi-Power SPEC-L II) | |
|---|---|---|
| Main material | S304 | |
| Diameter of tip | 94 L&R | |
| Diameter of center pipe | 65 - 50.8 x 2 (*1) | |
| Close noise level | Stock | 82/82 |
| HKS | 88/88 | |
| About road clearance(*2) | Clearance | 120mm |
| Portion of the kit | Mid pipe | |
| Remarks | ||
| Product Weight | ||
About HKS muffler
*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
