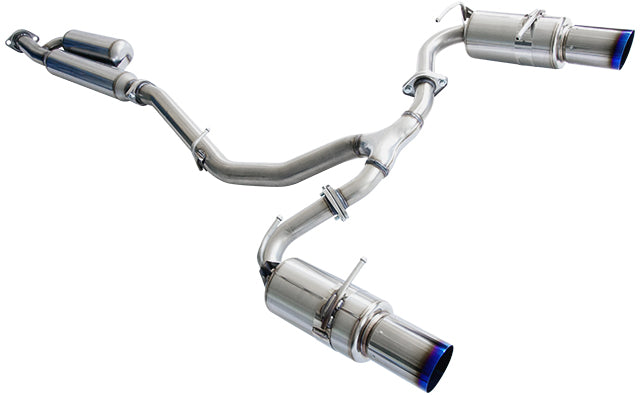

HKS 32016-BT004 Exhaust System HI-POWER SPEC-L for TOYOTA GR86, SUBARU BRZ

The concept is the "light weight". It will give you the sporty look because of the carbon wrapped tip.

The weight gets half of the stock muffler. We made each pipe and silencer lighter. The appearance is aggressive cannonball design and we wrapped it with carbon at the tail. It is a pure sport muffler which has improvement in weight and output performance.

SPEC-L is made of 0.5mm thin plate.

Pipe plate is 0.8mm thick and silencer outer plate is only 0.5mm of SUS304 material(*). We designed super lightweight muffler. And still it has an efficient exhausting ability and cool sound. Only HKS can make this kind of high engineering exhausting parts.
(* the thickness is different for the different area of the parts)

Reasonable price

Usually super light muffler is made of titanium and they are very expensive. But HKS made super light muffler with stainless. Therefore HKS Hi-Power/Touring SPEC-L can be provided for a reasonable price.

Better performance

With HKS design efficient exhausting system and of course its lightweight will provide awesome performance of your vehicle.

Sporty bass sound and ultra light weight exhaust to upgrade BRZ's driving performance.

• By using ultra-thin stainless-steel material for the pipe and silencer, the weight is reduced to a level comparable to titanium exhausts.
• Round muffler with a large-diameter titanium tip for a finished look.
• Focusing on HKS' iconic "clear exhaust sound" that reminds you of the excitement when you step on the gas pedal. It provides a sporty bass sound during the acceleration and eliminates annoying exhaust drone.
• Achieving superior vehicle dynamics and exhaust efficiency by selecting the right pipe diameter for the 2.4L engine and reducing weight and back-pressure.
• For the sound level, 32016-BT004 is louder compared to 32016-AF101.

• Shape of muffler: HP (Hi-Power SPEC-L)
• Main material: S304
• Diameter of tip: 97 L&R
• Diameter of center pipe : 65-50.8 x 2 (*1)
• Close noise level: Stock: 82/82dB, HKS: 88/89dB
• Clearance: 120mm
• Portion of the kit: Center pipe

Remarks

About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.
