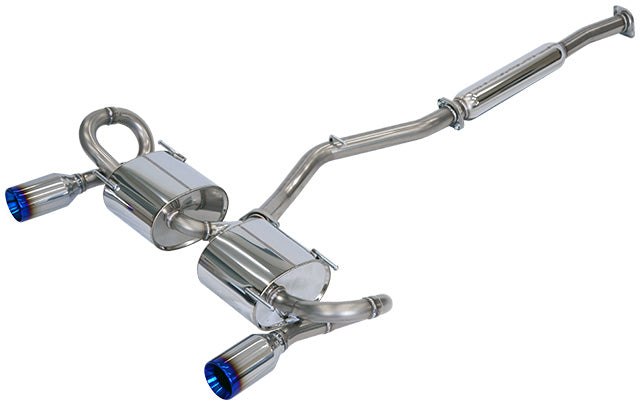

HKS 32018-AF019 Exhaust System LEGAMAX SPORTS for TOYOTA GR86, SUBARU BRZ

High-performance muffler having both quietness and low back pressure.

Optimized special design for FA24

• The pipe diameter is expanded to optimize a powered-up FA24 engine compared to the previous 86 & BRZ.
• It provides excellent exhaust efficiency by employing a straight layout structure in the main pipes with a diameter of 65 mm or 2 x 50.8 mm.

A sporty sound comes from a characteristic layout

• HKS tuned the exhaust sound to suit the Active Sound Control System on the new GR86 or BRZ to provide comfortable sound in the cabin.
• Enjoy an exciting sound that rises with the engine speed in the high rpm range, accompanied with a modest sound at the low rpm range made possible by the characteristic tailpipe layout and silencer structure.

• Shape of muffler: RS (Titan) (LEGAMAX Sports)
• Main material: S304
• Diameter of tip: 100 L&R
• Diameter of center pipe : 65-50 x 2 (*1)
• Close noise level: Stock: 83, HKS: 89
• Clearance: 132mm

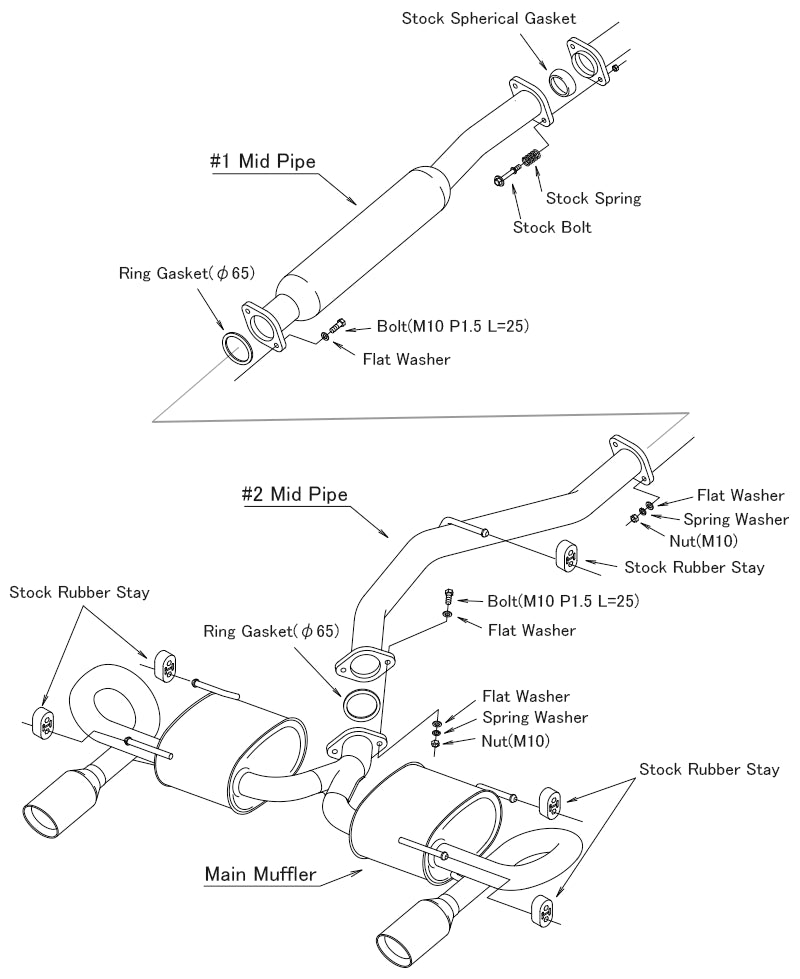

• Portion of the kit: 2nd Middle pipe

Remarks

Attaching/detaching of rear bumper, and modification of rear bumper skirt is necessary when installing the product.

About HKS muffler

*1: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.

*2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.

Caution: Hook, bracket, stay may be changed without prior notice.
