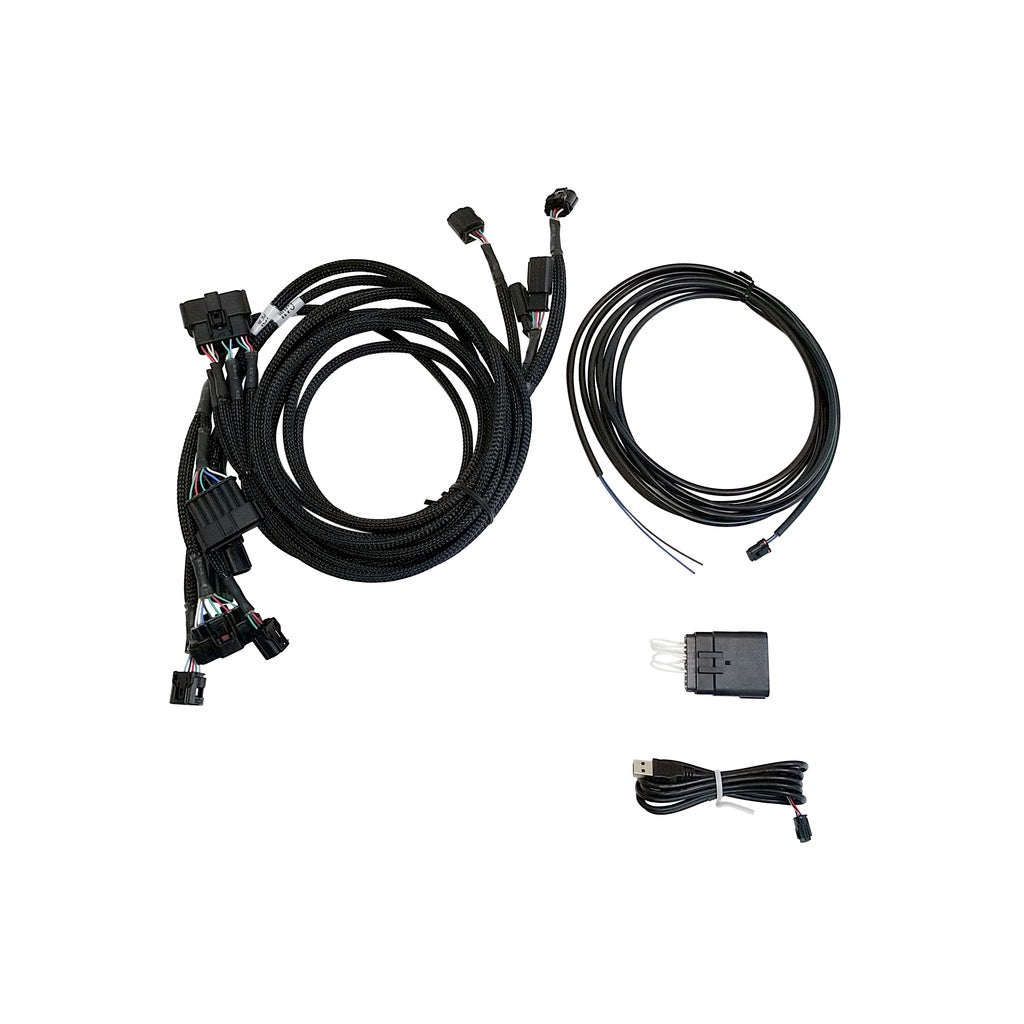

HKS 42999-AH001 Harness POWER EDITOR R for HONDA Civic Type R (FL5) 2022- Photo-0

HKS 42999-AH001 Harness POWER EDITOR R for HONDA Civic Type R (FL5) 2022-

€671,46

VAT included. Shipping calculated at checkout

HKS P/N: 42999-AH001 GTIN: 4957266567555
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

HKS 42999-AH001 Harness POWER EDITOR R for HONDA Civic Type R (FL5) 2022-

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+4926916879995

Nürburgring Showroom

Pickup available, usually ready in 24 hours

Nürburgring Boulevard 2
53520 Nürburg
Germany

+4926916879995

Easy and quick increase of boost can be achieved by connecting to the vehicle's sensors.

This product can use vehicle velocity and throttle signals in addition to the RPM signal, making it possible to control with the optimum correction value for each gear and throttle opening degree.

It allows correction of the fuel pressure signal, which provides a wider range of settings compared to the existing Power Editor.

Easy Writer for Power Editor R (for free) allows users to create their own original data, making it possible to set up detailed settings adjusted to the individual car.

It can be returned to the factory conditions by using the return connector included with the product even after the product has been installed.

This product is connected to each channel of Power Editor R by interrupting the following sensor harness.

  • ch1:Boost pressure sensor
  • ch2:Intake manifold pressure sensor
  • ch3:Fuel pressure sensor
  • ch4: Throttle sensor
  • ch5: Air flow sensor
  • Cam angle sensor (RPM signal)
  • Velocity signal (Optional connection)

*Please purchase Power Editor R main unit 42018-AK002 separately.
