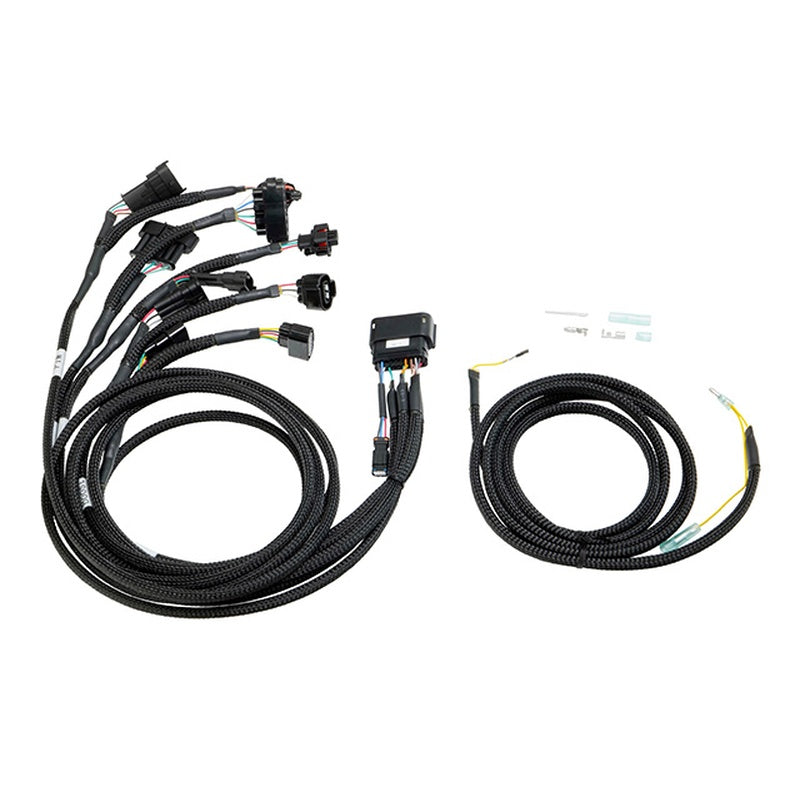

HKS 42999-AS002 Harness SR-2 Power Editor R for SUZUKI Swift Sport (ZC33S)

Description HKS 42999-AS002 Harness SR-2 Power Editor R for SUZUKI Swift Sport (ZC33S)

This HKS Power Editor R Universal Wiring Kit is designed for use in combination with the Power Editor R Universal Main Unit (sold separately). By connecting the wiring kit inline with the vehicle’s sensor harness, boost pressure can be increased while maintaining accurate and stable control.

In addition to boost pressure signals, the system captures engine speed and throttle position signals. This allows boost correction to be applied using optimal values for each engine speed and throttle opening. By utilizing an RPM-based correction axis, the adjustment range is broader compared to the standard Power Editor.

Using the free Easy Writer for Power Editor R software, users can create custom control data for detailed tuning to match individual vehicle characteristics. Even after wiring installation, the vehicle can be returned to its stock condition by using the return connector included with the Power Editor R Universal Main Unit.

• Universal wiring kit for use with Power Editor R Universal Main Unit
• Inline installation with vehicle sensor harness
• Uses engine speed and throttle signals for precise boost control
• Broader adjustment range using RPM-based correction
• Custom data creation supported via Easy Writer for Power Editor R

This product connects to the following vehicle sensors and assigns them to each Power Editor R channel:

• CH1: Boost Pressure Sensor
• CH2: Intake Manifold Pressure Sensor
• CH4: Throttle Position Sensor
• Cam Angle Sensor (engine speed signal)

Notes:

• Power Editor R Universal Main Unit (Part No. 42018-AK002) is required and sold separately
• No control data is preloaded in this wiring kit or in the universal main unit
• On-vehicle tuning is required after installation
