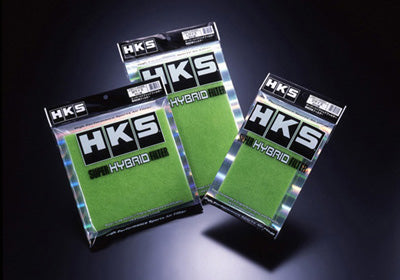

HKS 70017-AK001 Universal Filter for Super Hybrid Filter
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
HKS 70017-AK001 Universal Filter for Super Hybrid Filter
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
How to use
1. Remove Super Hybrid Filter from the vehicle.
2. Disassemble frame of Super Hybrid Filter and remove the old filter.
3. Cut the Filter Element (This item). (See the instruction on the left.)
4. Attach the cut new filter to the frame.
Face non weaven fabric side towards the side of frame that has the carved seal [OOOO-T]. Ensure that there is no space between them
5. Assemble frames.
6. Install the filter to the vehicle.
How to cut the filter
a. The instruction paper has the cutting line. Check the cutting shape by checking part number of the printed instruction or comparison with the removed old filter.
b. After confirmation of the shape, cut the instruction paper for the line.
c. Using the instruction paper, trace the cutting line to the filter with a marker. The cutting line printed side of the instruction paper should be the side of non weaven fabric side.
d. Cut the filter.
