HKS 80310-AH004 Coilover Kit HIPERMAX R for HONDA CIVIC Type-R (FD2) 2007-2010
This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.
HKS 80310-AH004 Coilover Kit HIPERMAX R for HONDA CIVIC Type-R (FD2) 2007-2010
Kelberg Warehouse
Auf der Struth 4
53539 Kelberg
Germany
Nürburgring Showroom
Nürburgring Boulevard 2
53520 Nürburg
Germany
Kit include:

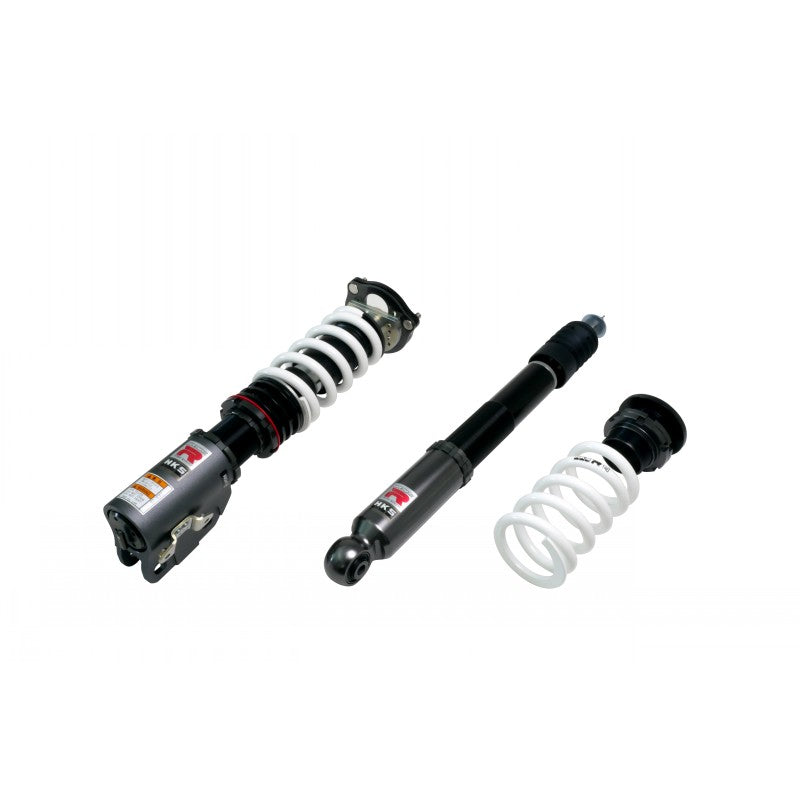

Front and Rear Coilovers, Accessories, Adjustment Dial, Spanner Wrench, Spanner Wrench(12.7sq Slotted), Warranty Certificate and Installation Manual
The fun to drive at will and the balance can be adapted from circuit to winding roads Raised Driving-Comfort, "Ultimate All-Round"
| Spring Rate N/mm (kgf/mm) | F=137 (14.0) R=137 (14.0) |
| Spring Length (mm) | F=170 (Straight) R=150 (Straight) |
| Helper Spring Rate N/mm (kgf/mm) | F=19.8 (2) R=N/A |
| Helper Spring Length (mm) | F=70 R=N/A |
| Default Ride Height (mm) (Upper / Lower Limit) | F=-31 (0 / -81) R=-31 (-12 / -94) *Compare to stock ride height |
| Upper Mount | F=Spherical Bearing R=Stock |
| Damper Type | F=Inverted R=Upright |
| Spring Rate Change | F=Available |
| Optional Spring N/mm (kgf/mm) | F=±20 (2) R=±20 (2) |
