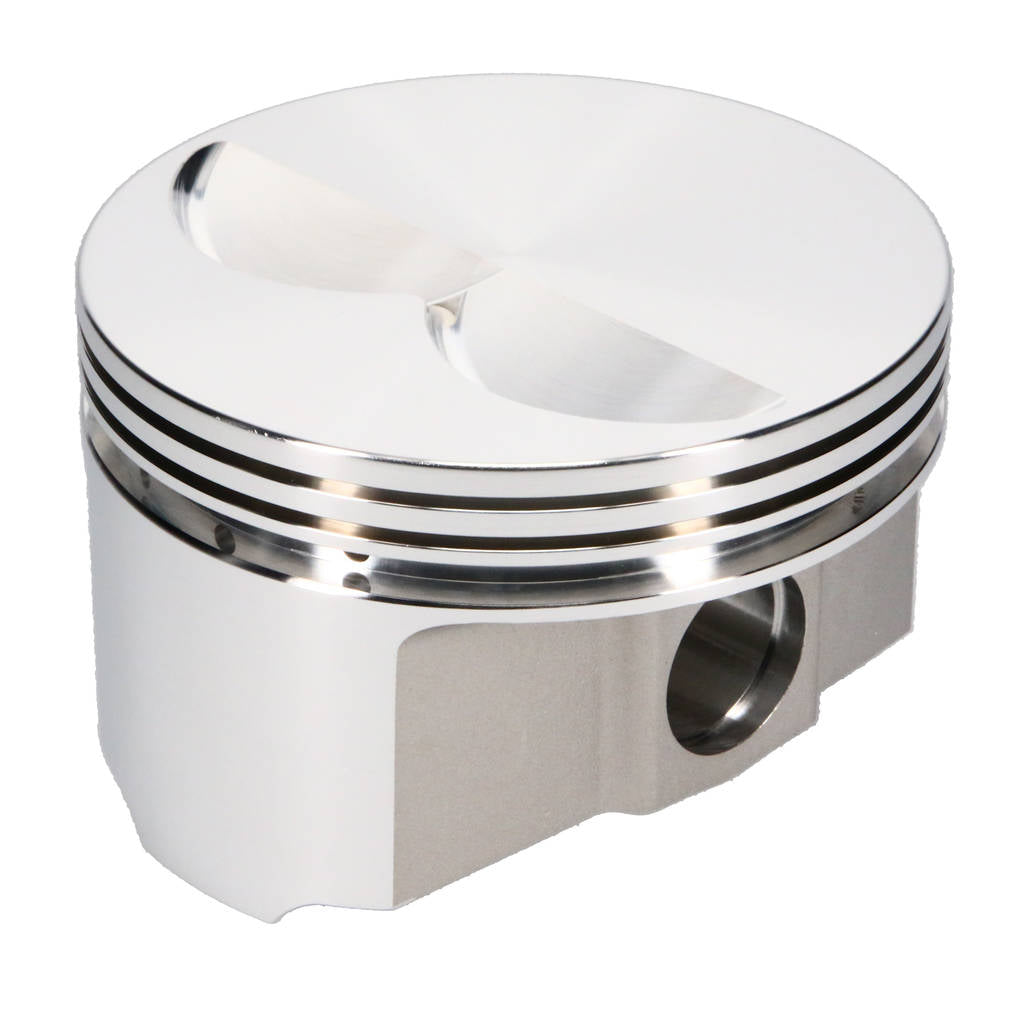

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-0

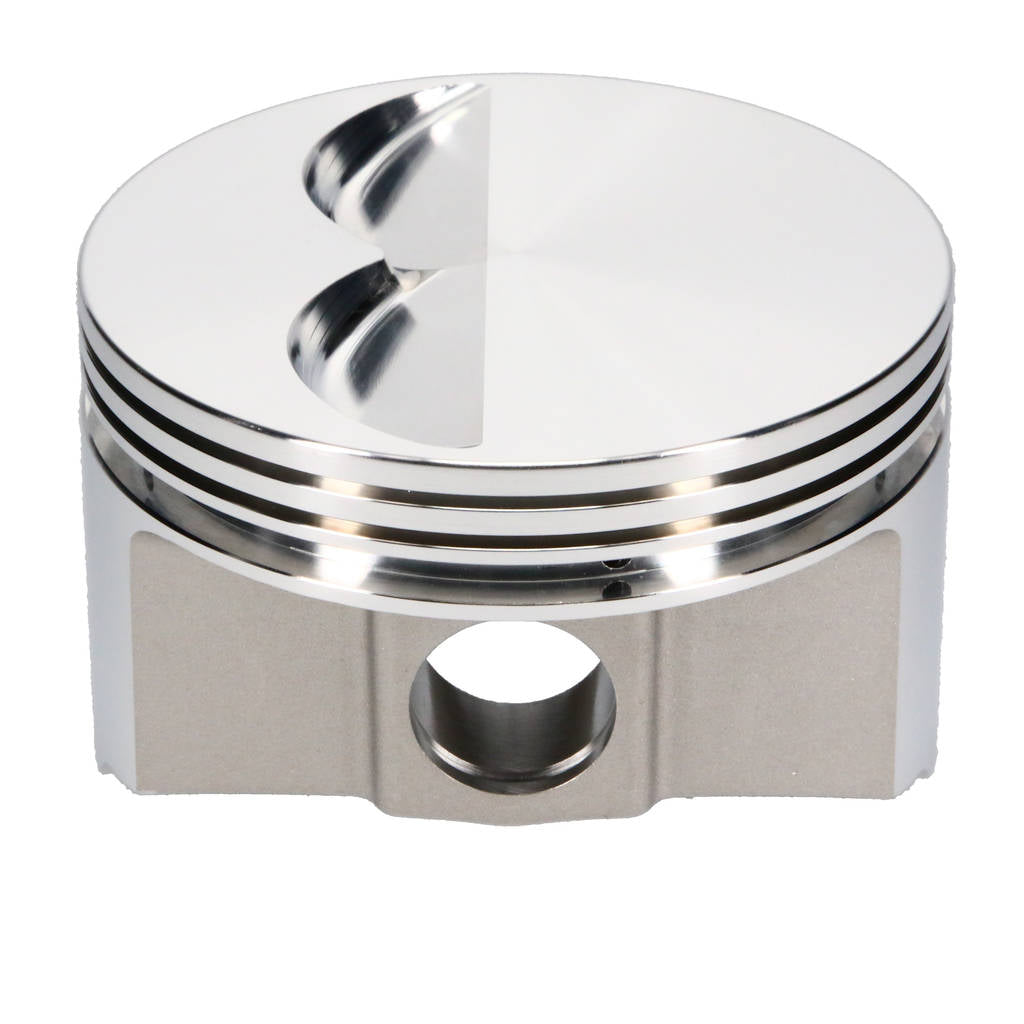

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-1

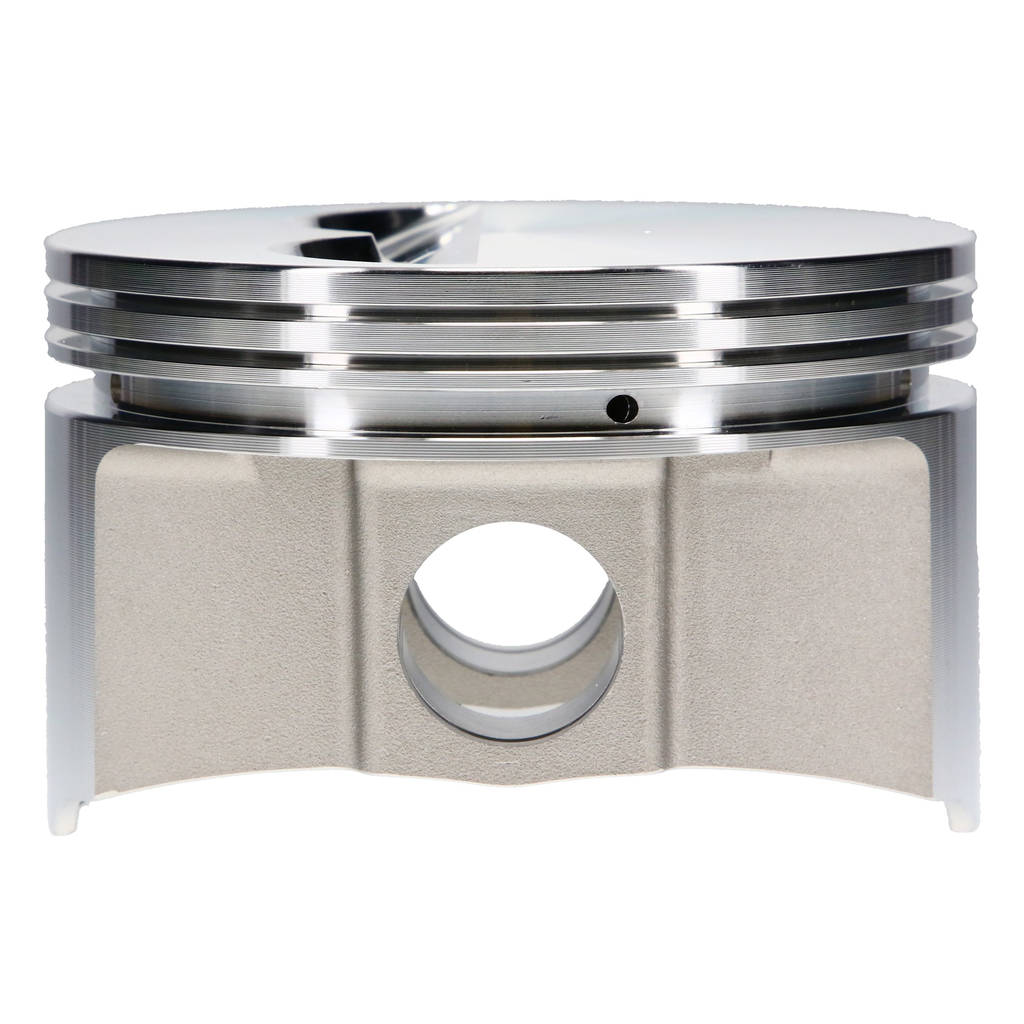

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-2

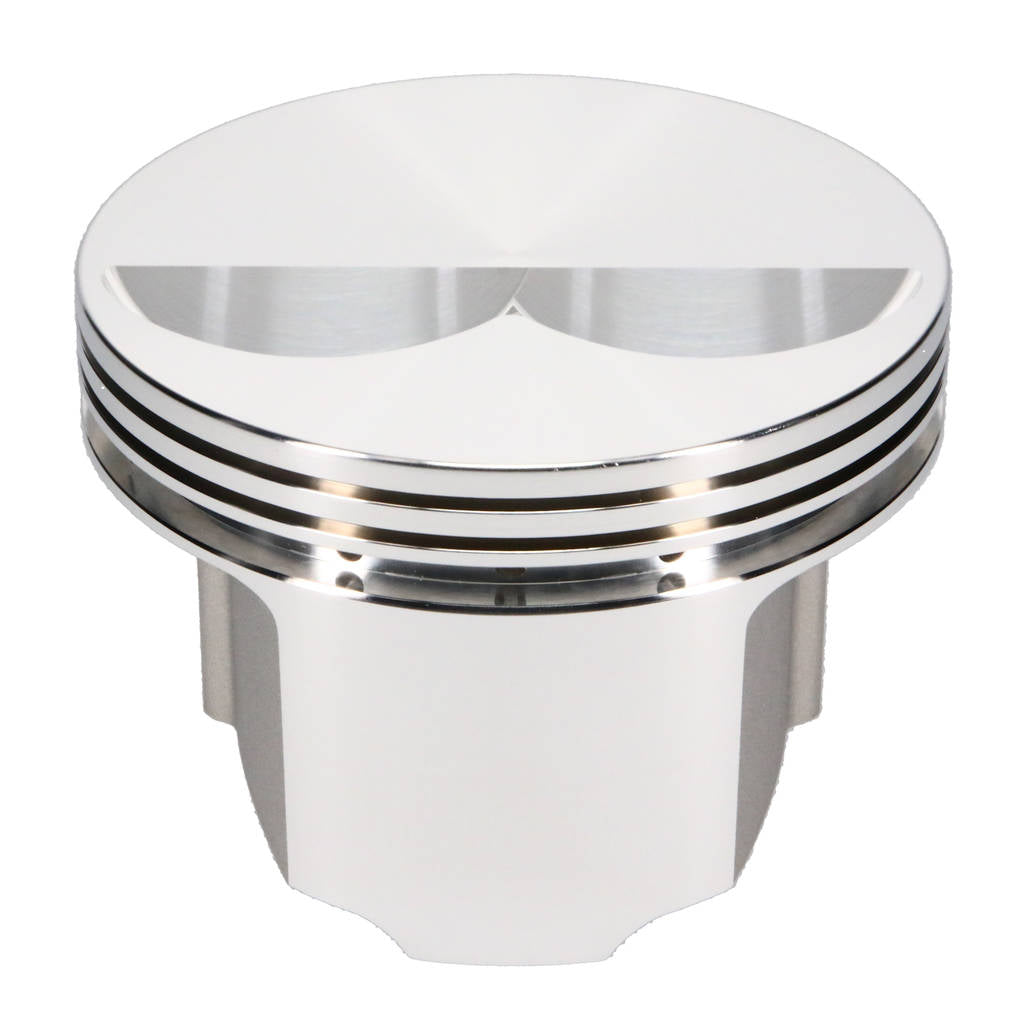

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-3

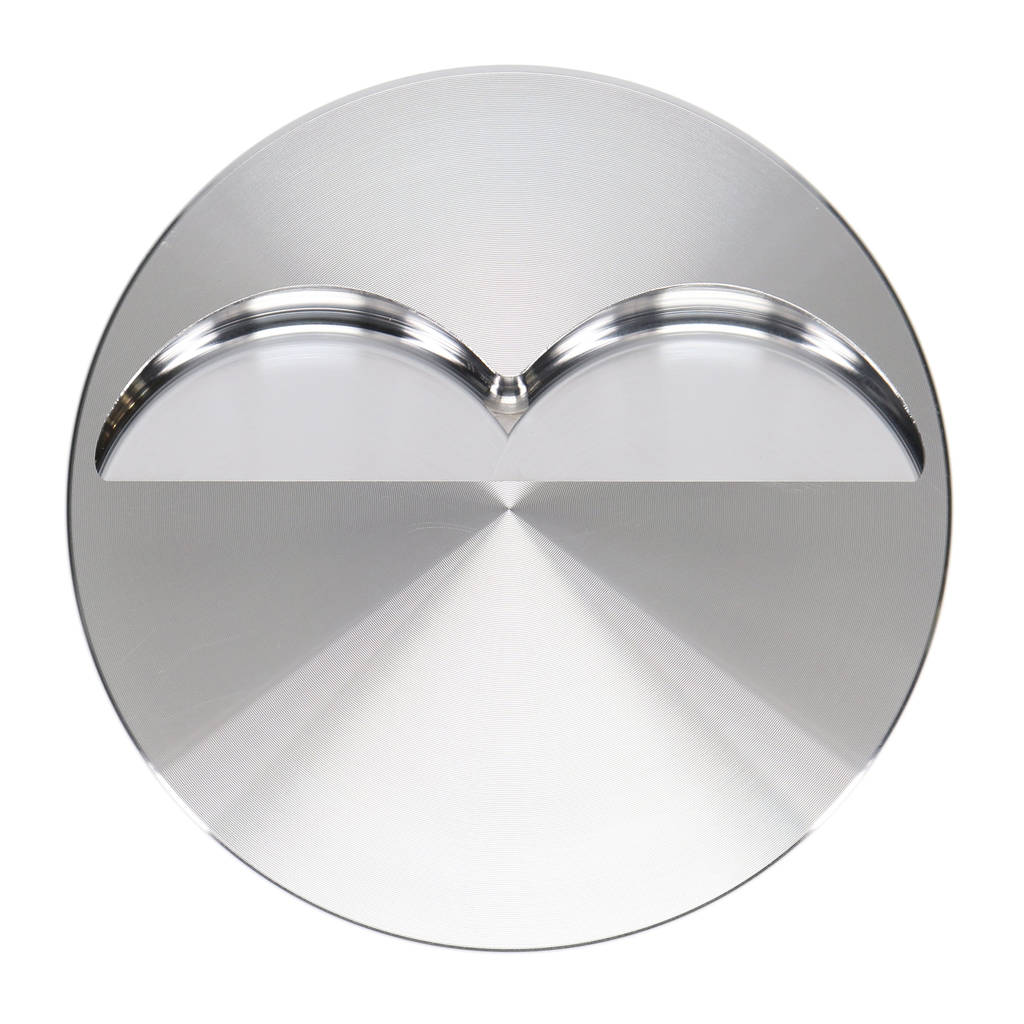

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-4

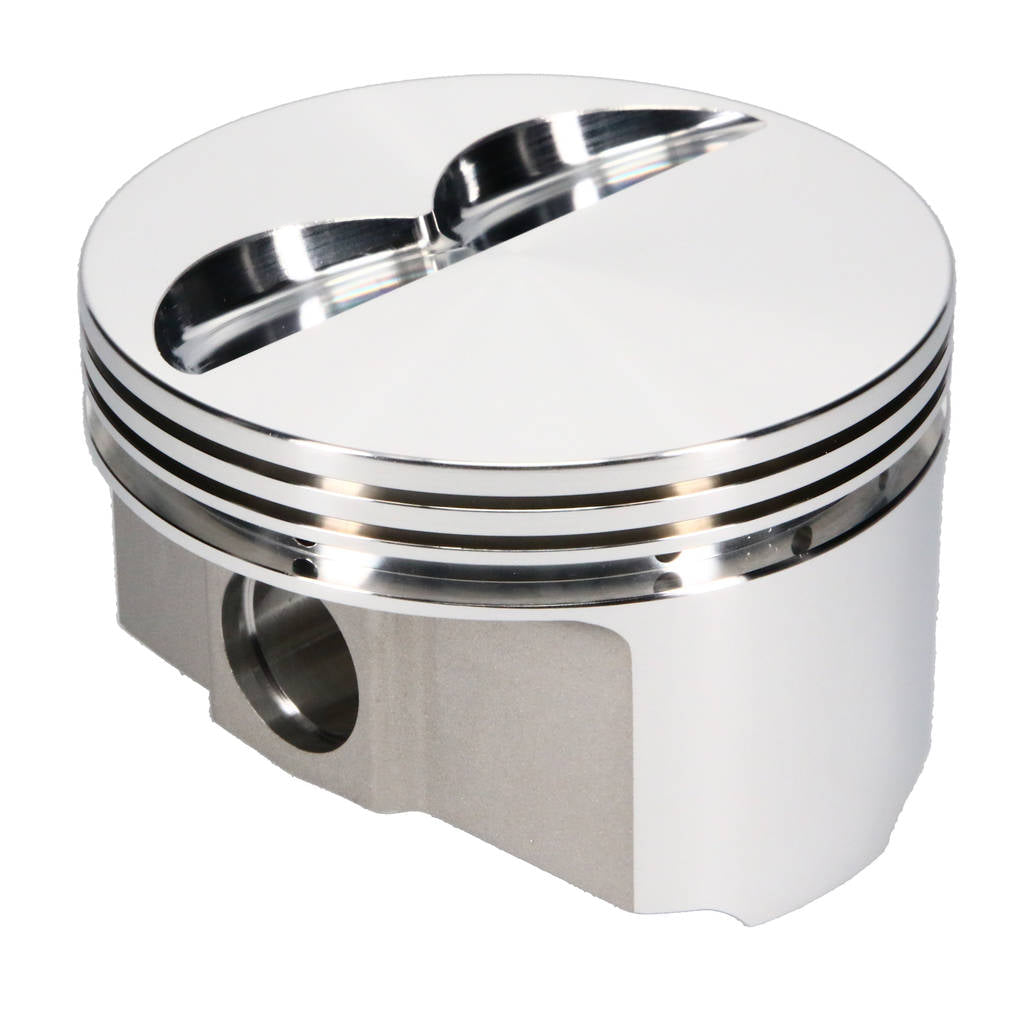

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-5

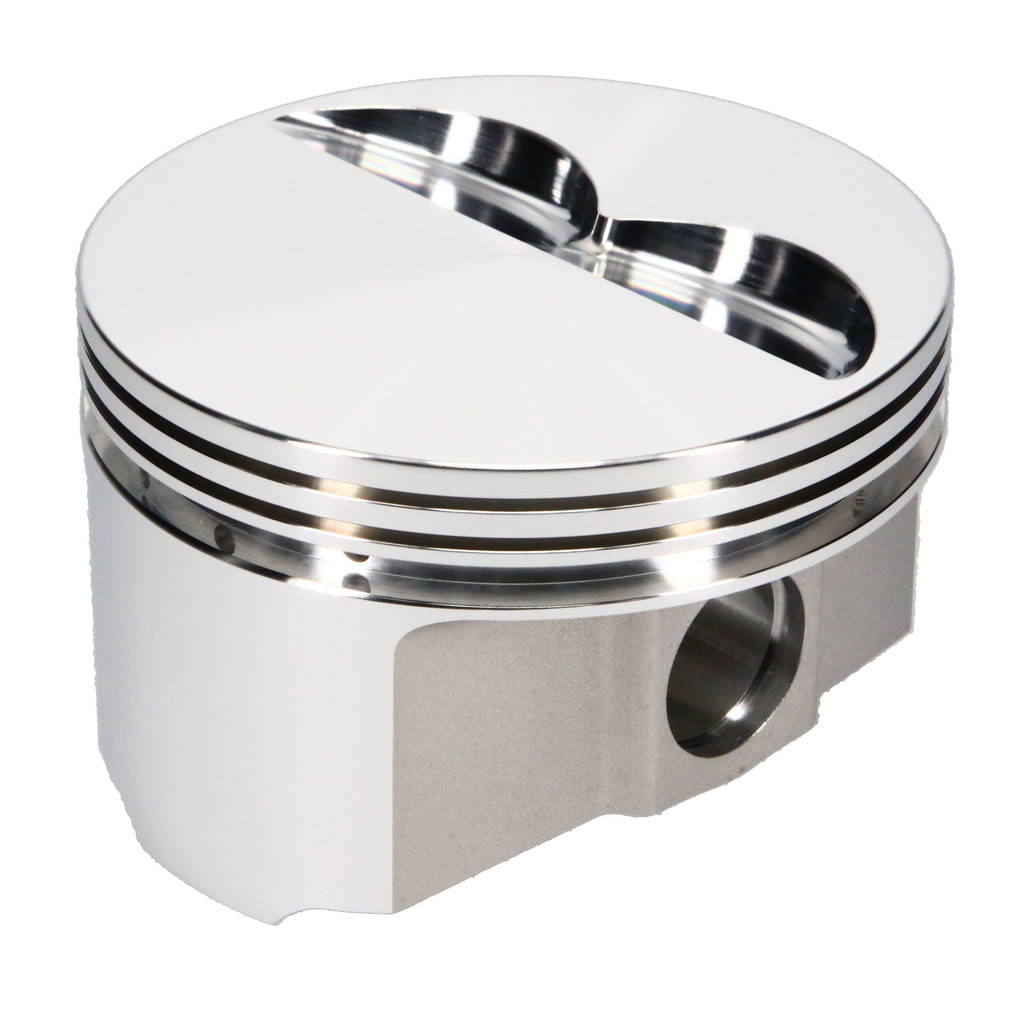

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-6

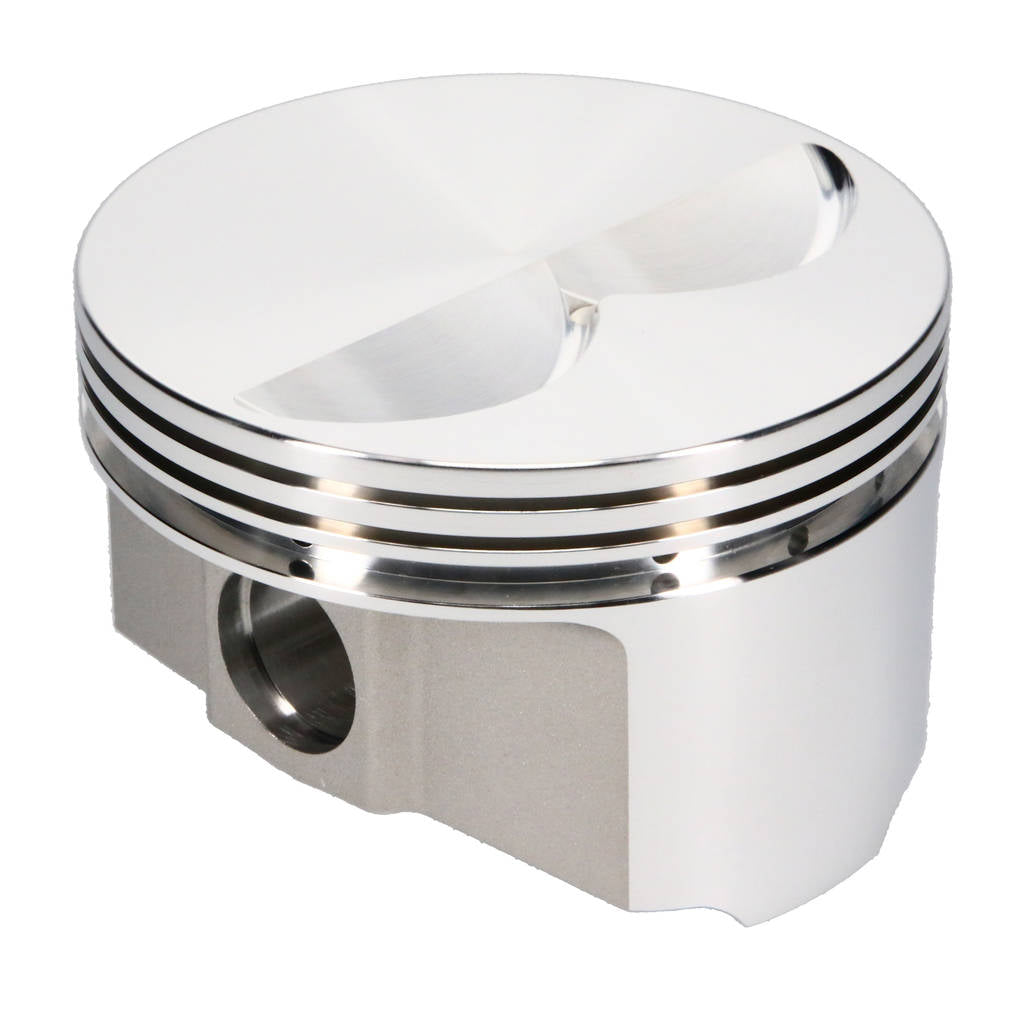

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-7

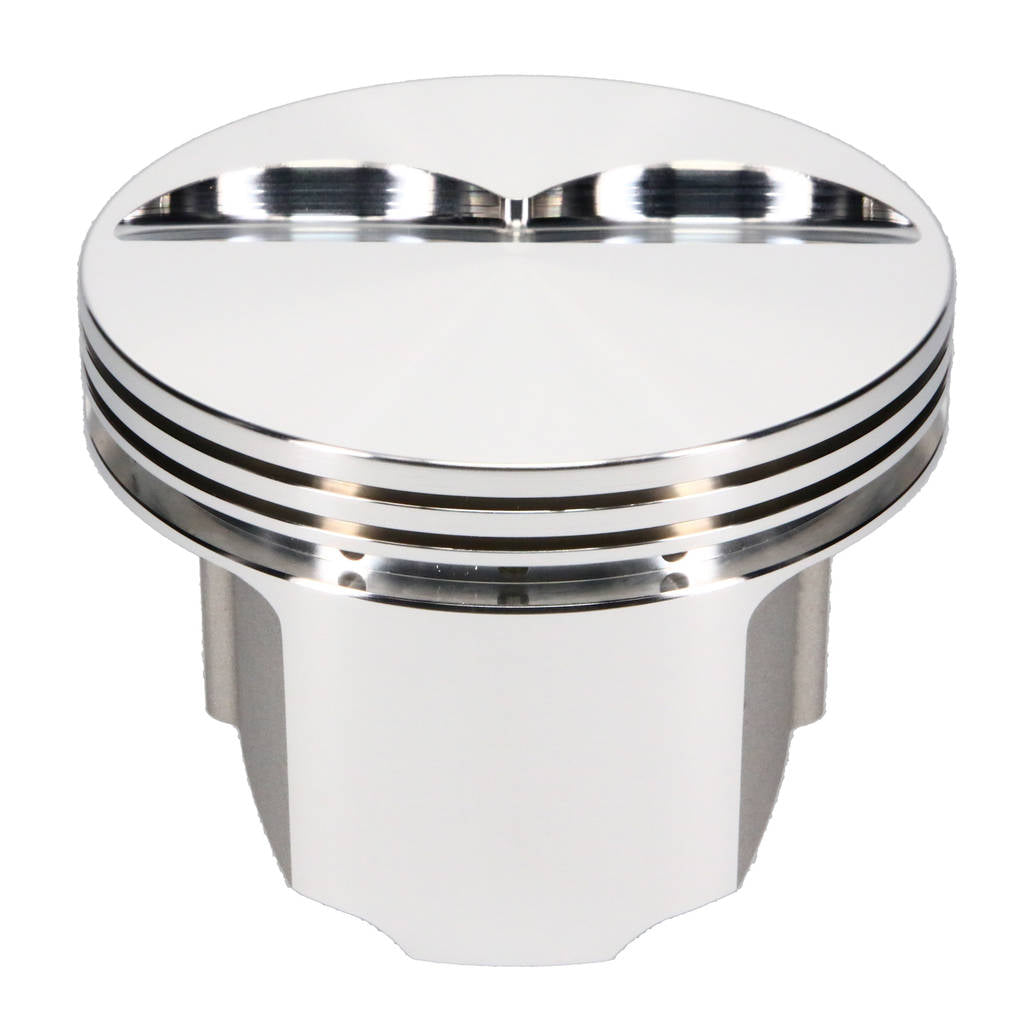

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-8

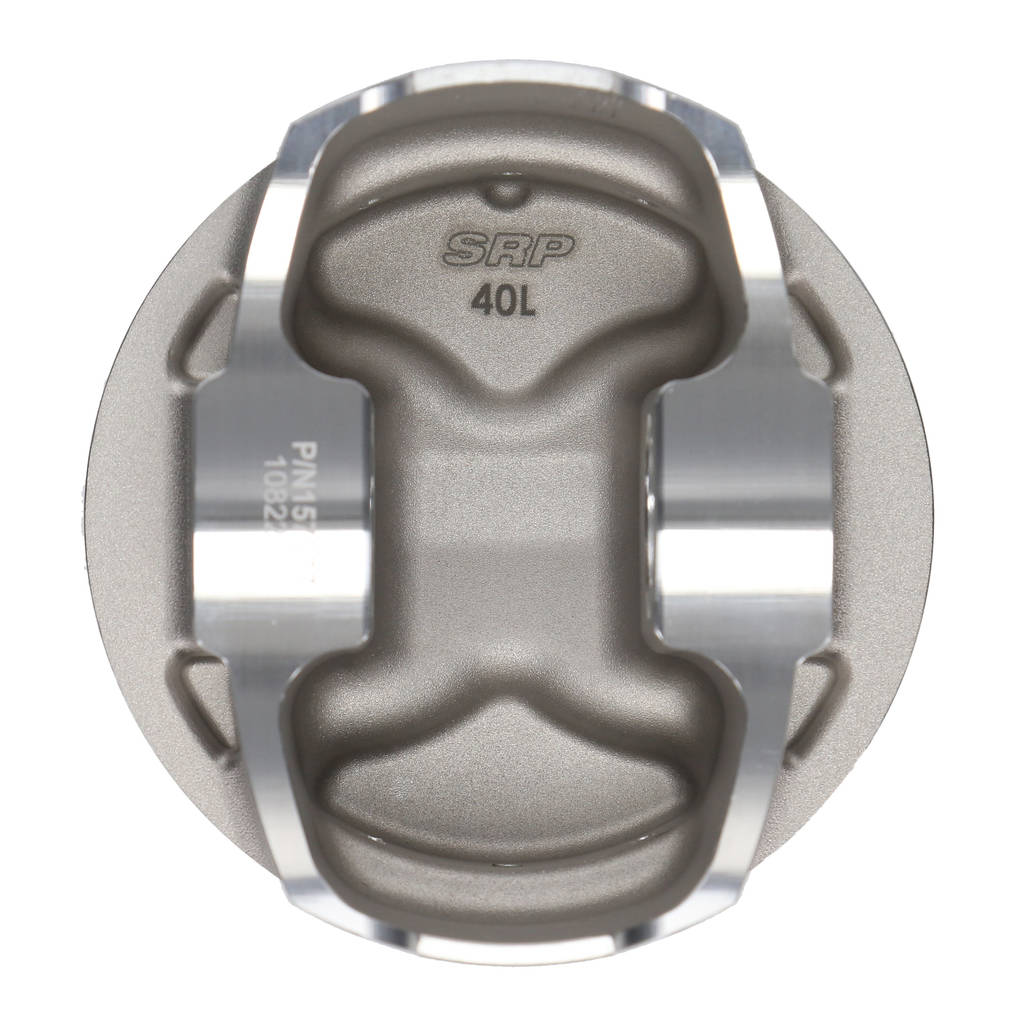

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-9

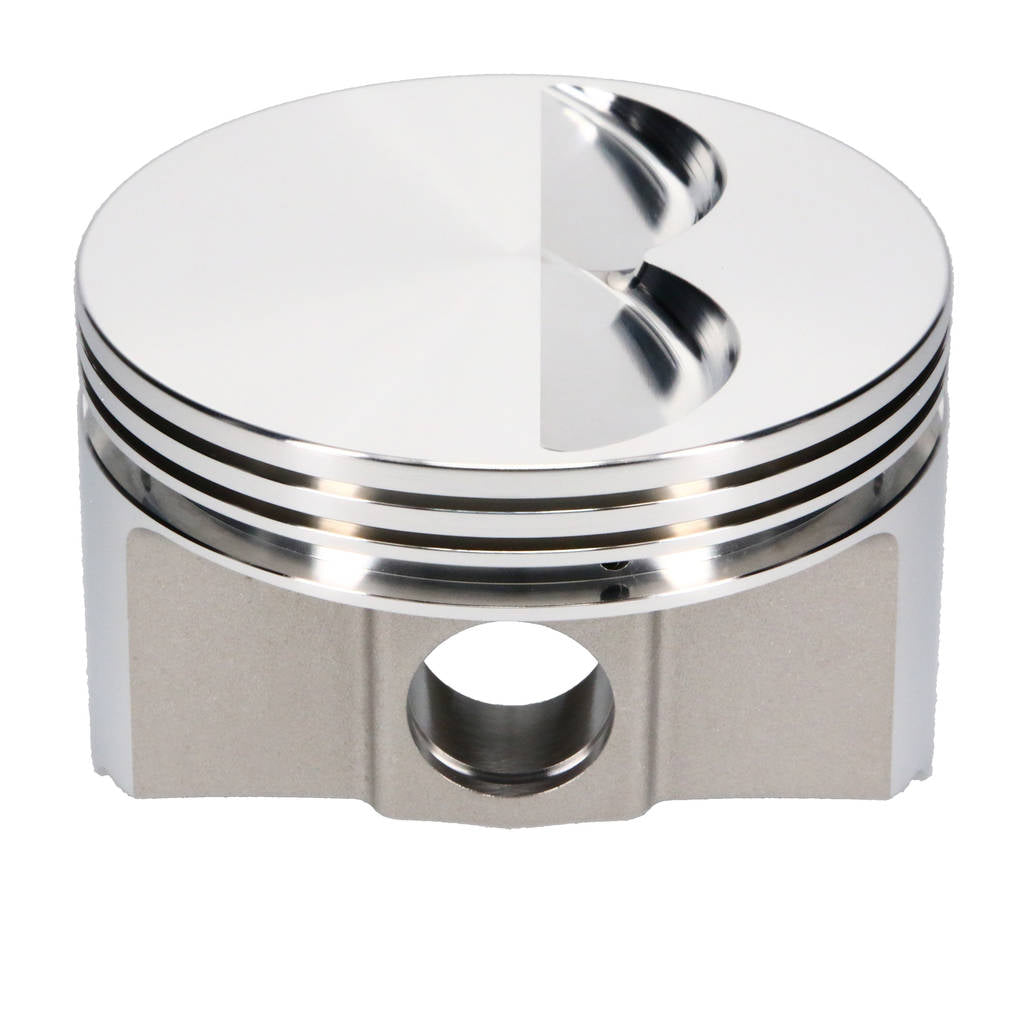

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine Photo-10

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine

€872,65

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 157077 GTIN: 193564248213
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 157077 Piston Kit SRP (4.040 in. Bore, 1.550 in. CH, -4.00 CC) for CHEVROLET Small Block Engine

Born from the racing experience of JE Pistons, the Sportsman Racing Products (SRP) piston line bridges the gap between high-quality forged piston performance and affordability.

Forged from strong 4032 aluminum alloy, SRP pistons are designed and manufactured to reduce machining costs without sacrificing strength or performance. They are suitable for mild to moderate performance engines on a sportsman budget.

  • Forged in the USA from 4032 aluminum for tensile strength and minimal thermal expansion
  • Dedicated forging optimizes strength and weight throughout the piston design
  • Suitable for street/strip applications
  • Forced pin oiling improves pin lubrication

Specifications:

  • Piston Series: SRP
  • Cylinder Head: STD CHEVROLET 23 DEG
  • Bore Diameter: 4.040 IN
  • Piston Head Type: Flat
  • Compression Height: 1.550 IN
  • Piston Volume: -4.00 CC
  • Piston Material: 2618
  • Forging Type: FSR
  • Piston Average Weight: 437 GR
  • Ring Set Included: No
  • Top Compression Ring Thickness: 1/16 IN
  • Second Compression Ring Thickness: 1/16 IN
  • Oil Ring Thickness: 3/16 IN
  • Wrist Pin Material: 5115 Low Carbon Steel, Case Hardened
  • Wrist Pin Length: 2.500 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Intake Depth: .270 IN
  • Intake Angle: 22.5
  • Exhaust Depth: .270
  • Exhaust Angle: 22.5
  • Top Groove Width: 0.06400 IN
  • 2nd Groove Width: 0.06400 IN
  • Oil Groove Width: 0.18800 IN
  • Product Type: Engine Piston Kit
  • Product Market: Domestic
  • Small Block
