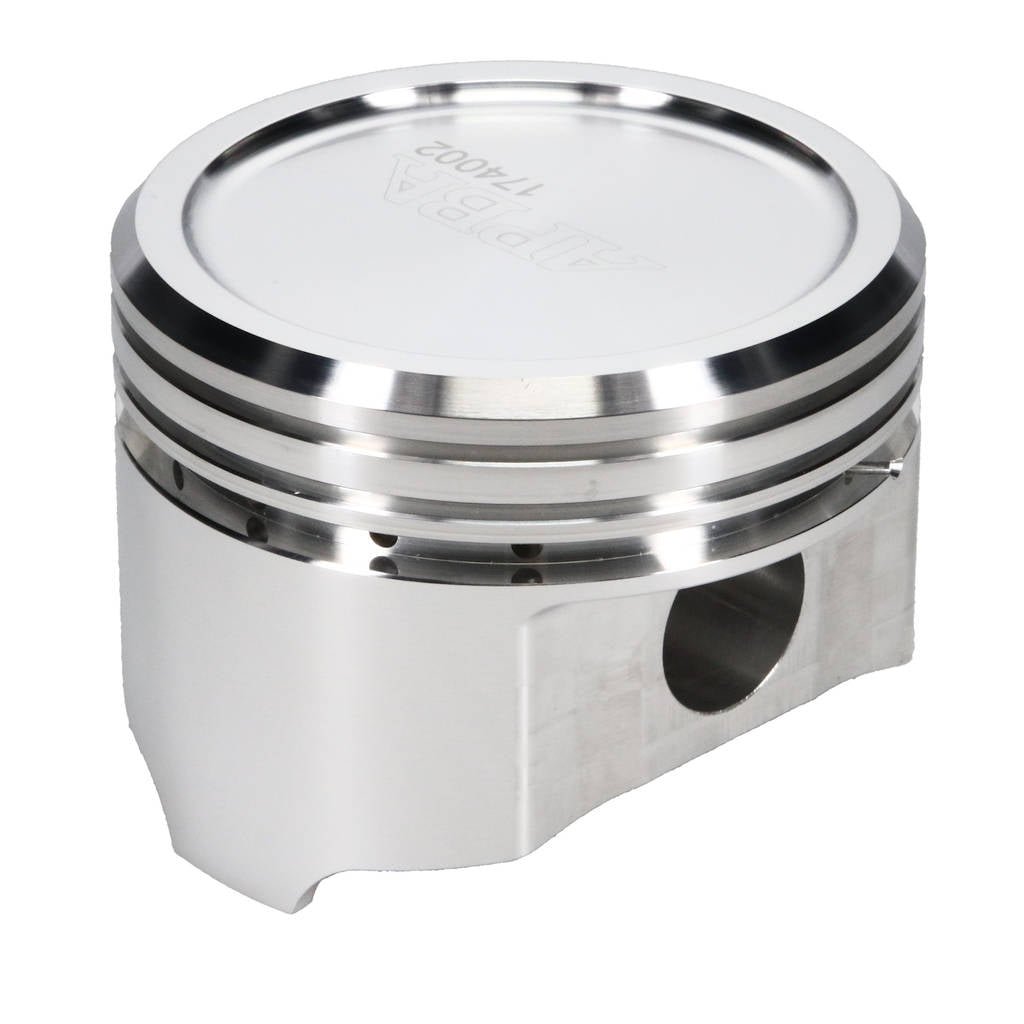

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-0

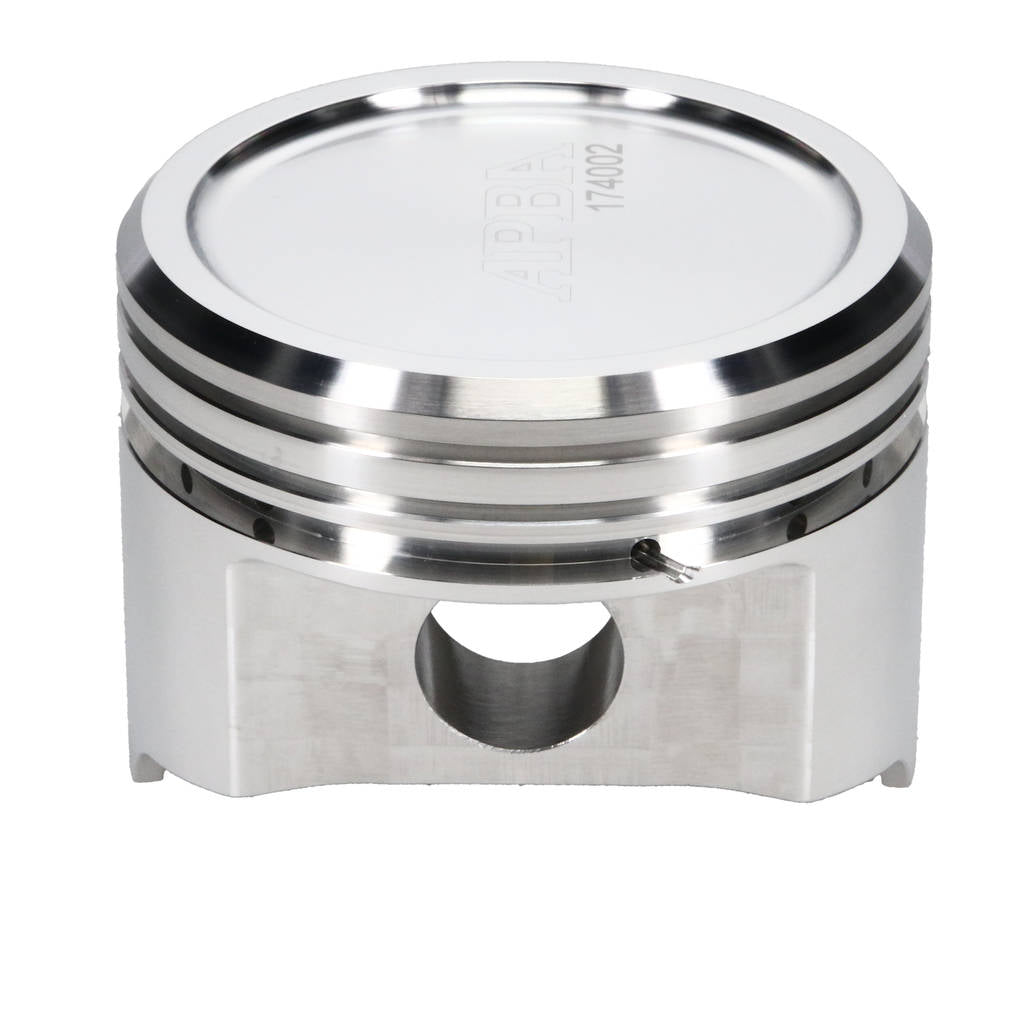

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-1

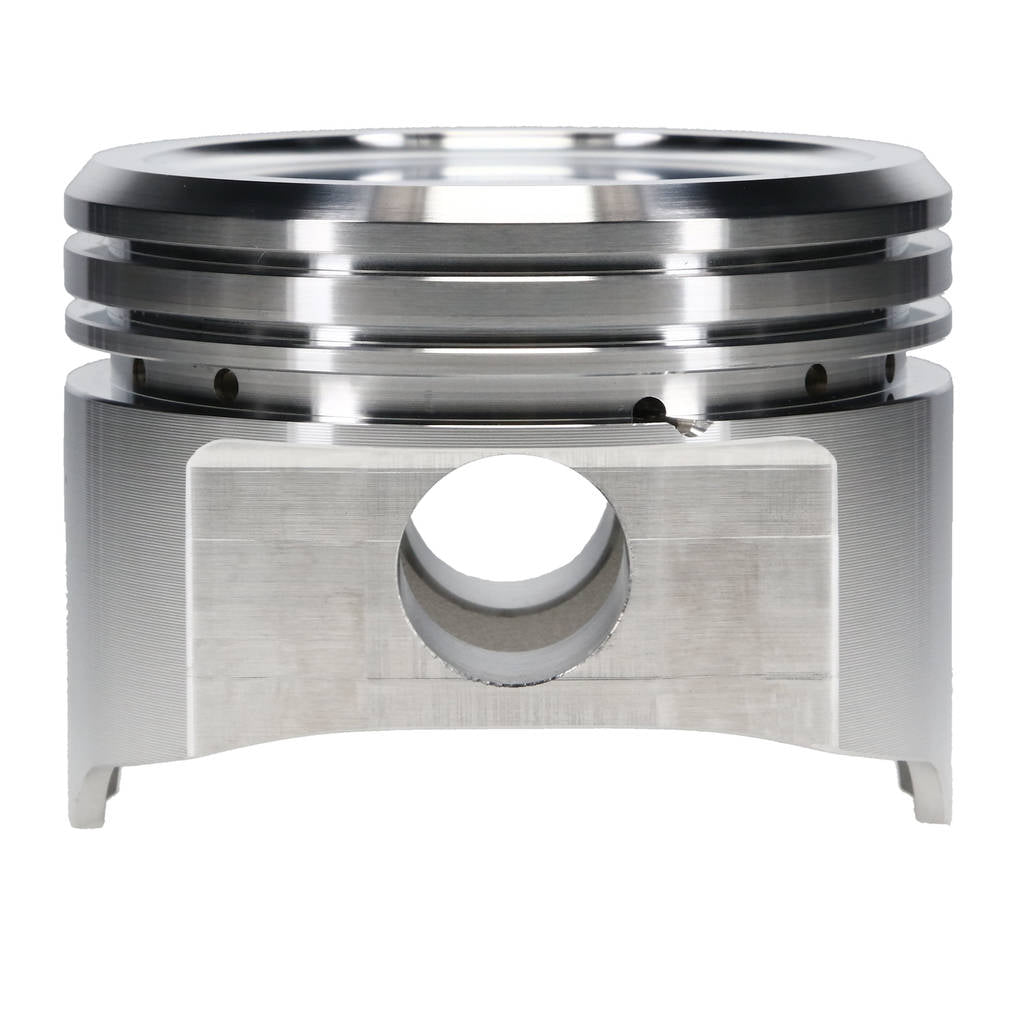

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-2

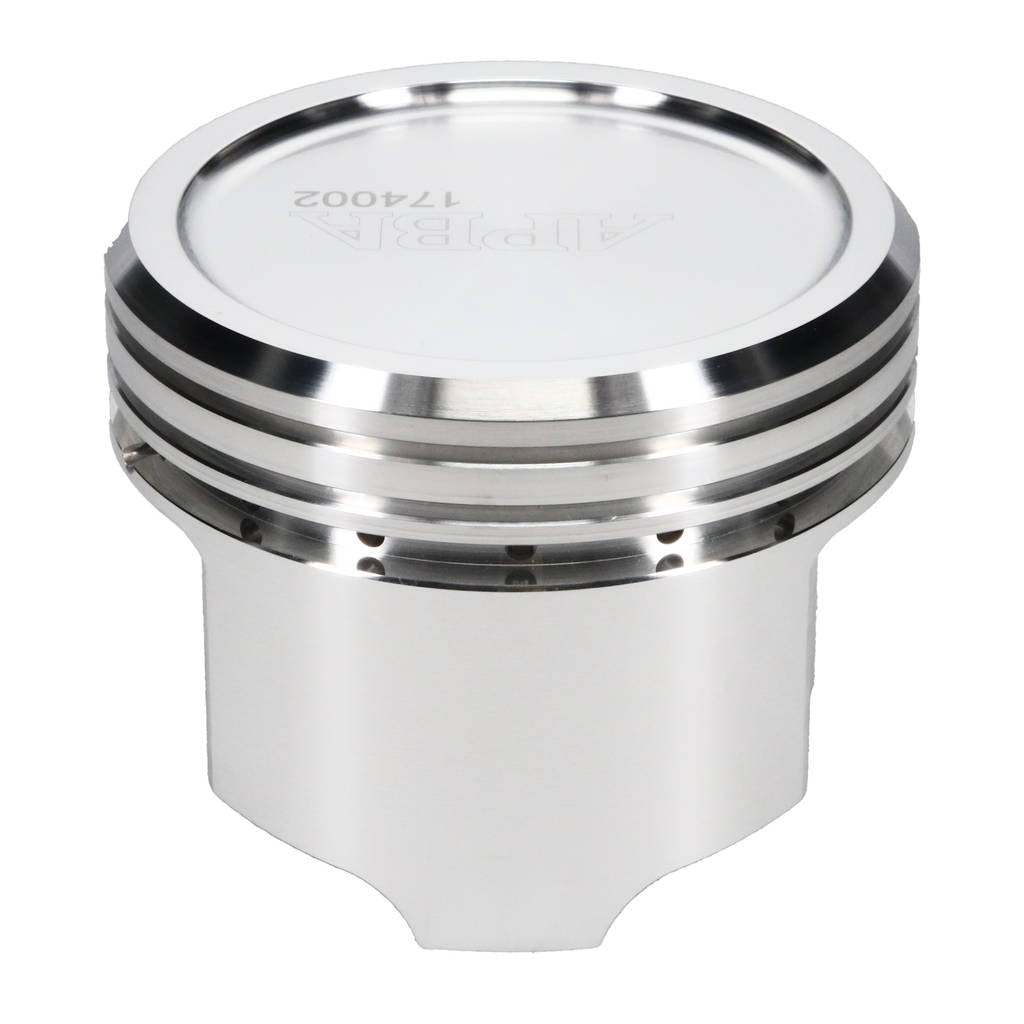

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-3

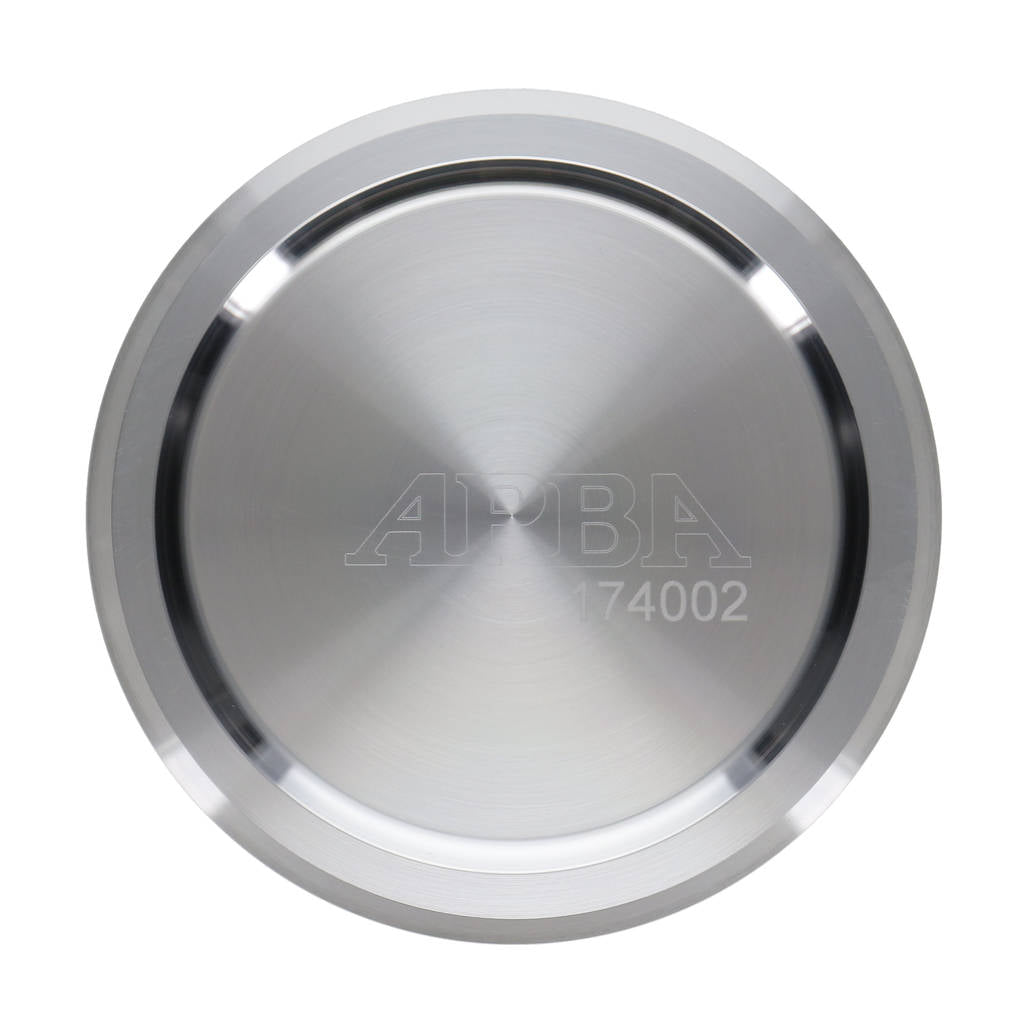

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-4

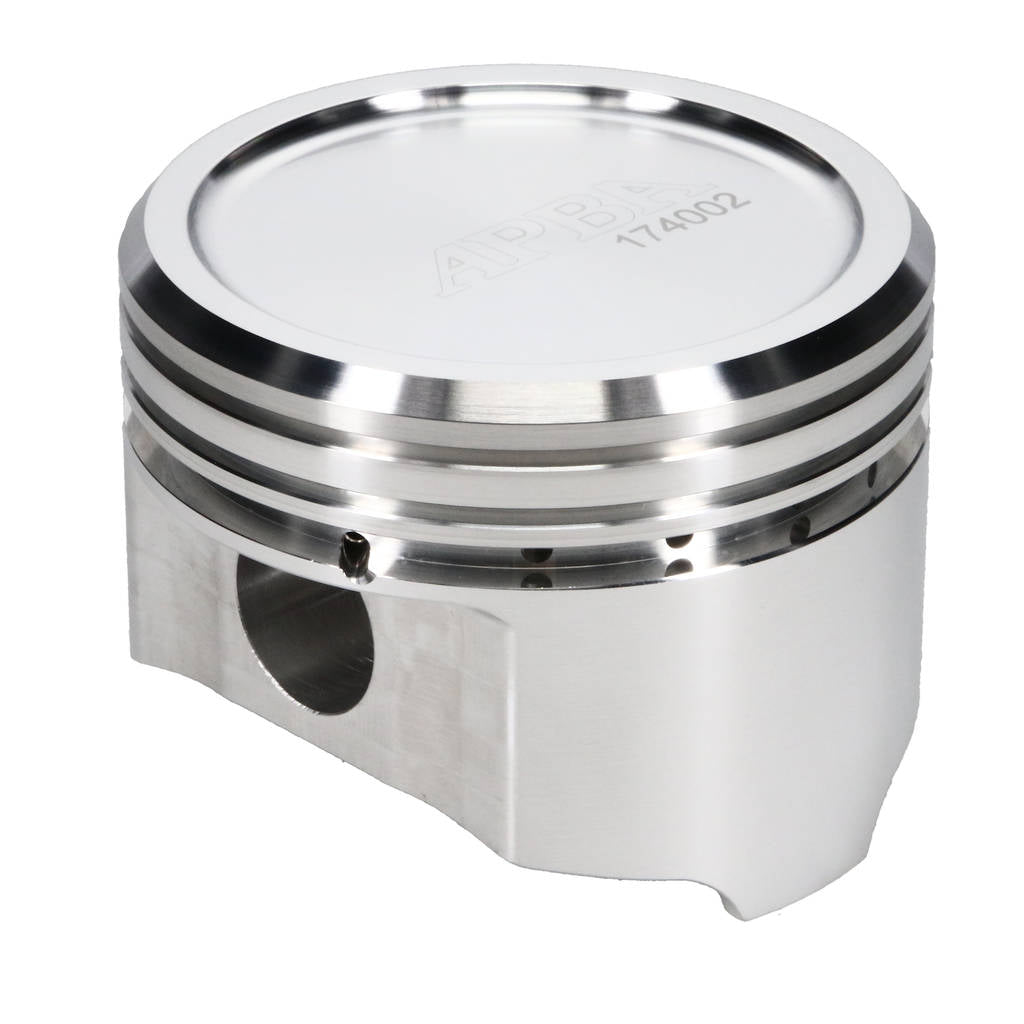

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-5

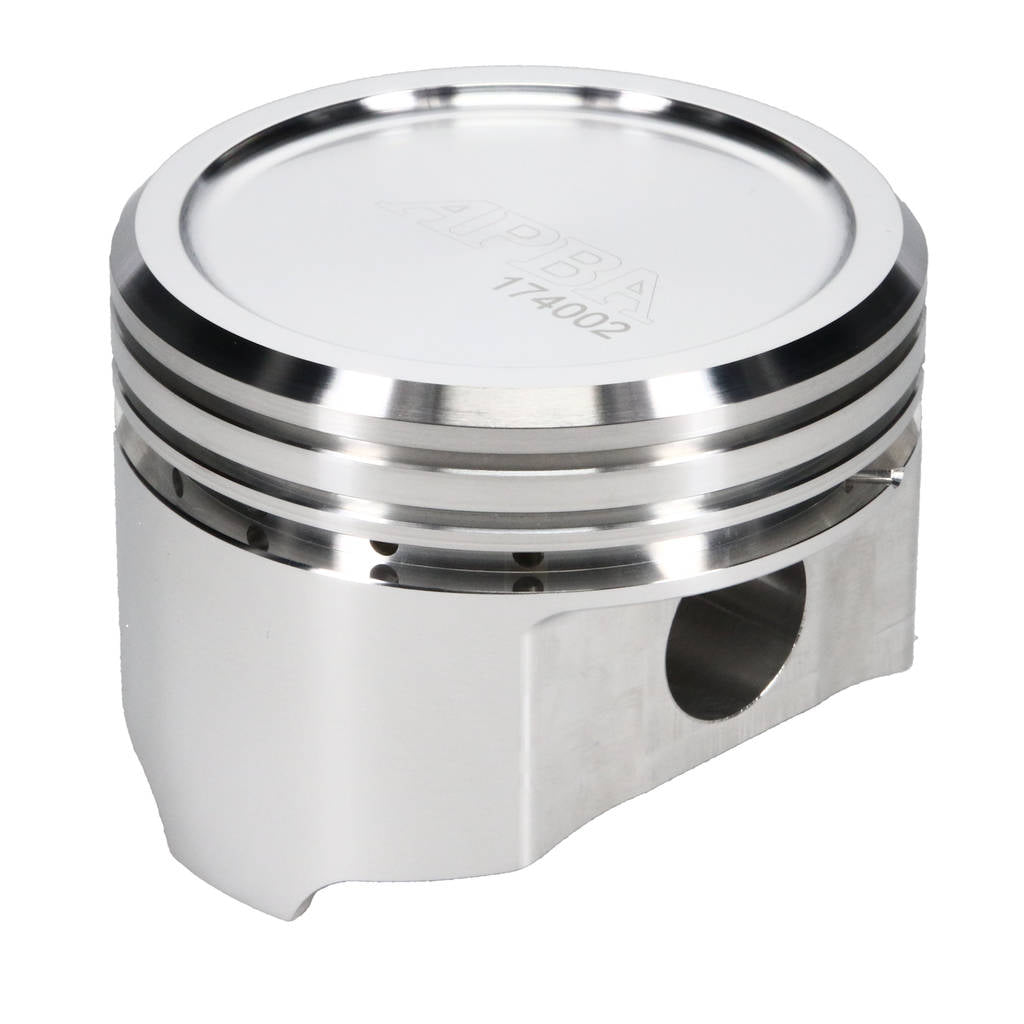

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-6

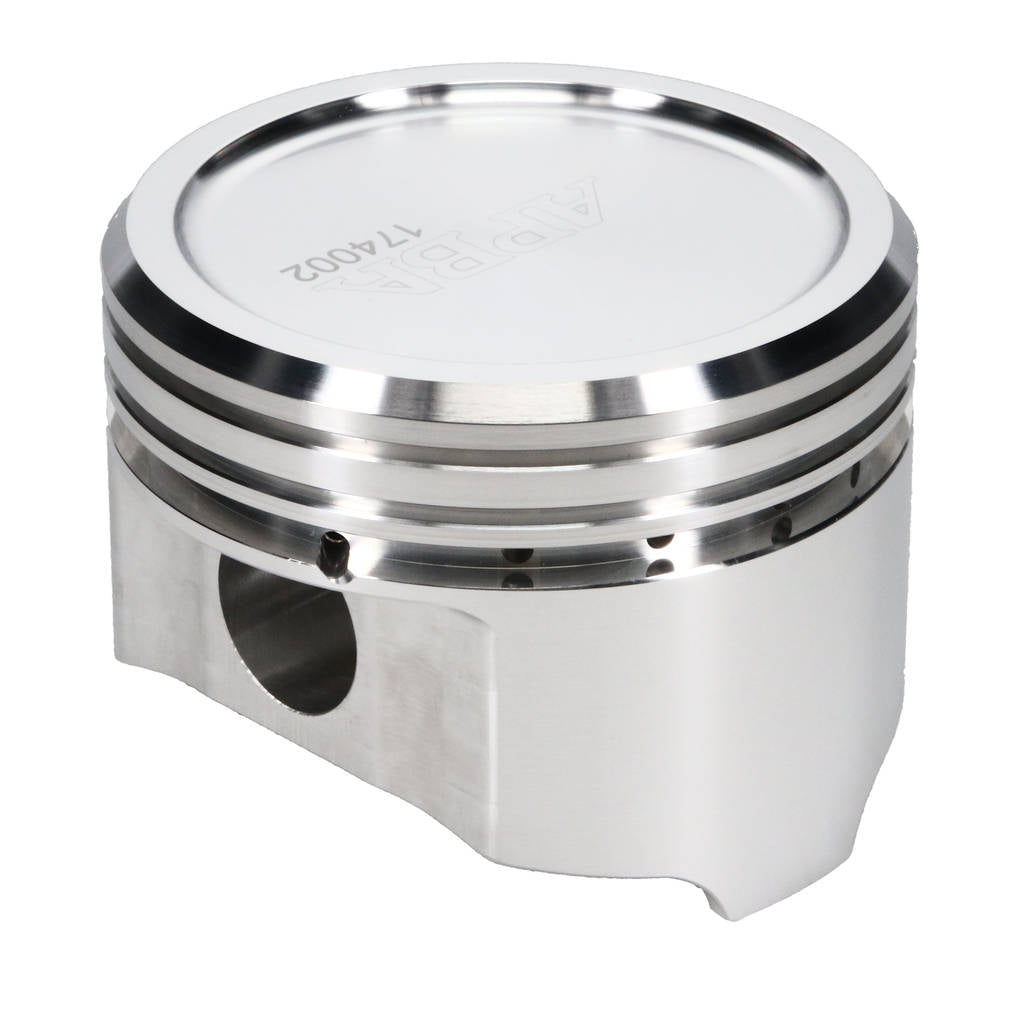

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-7

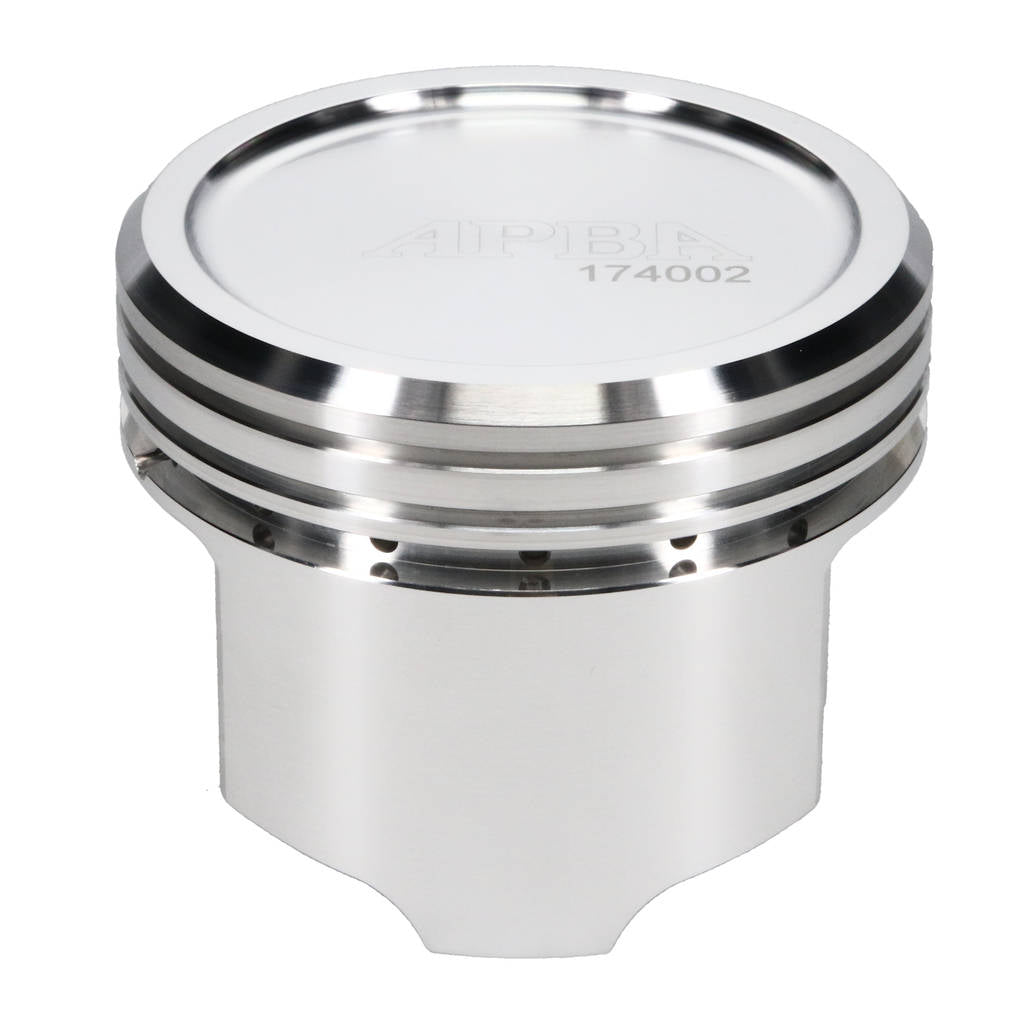

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-8

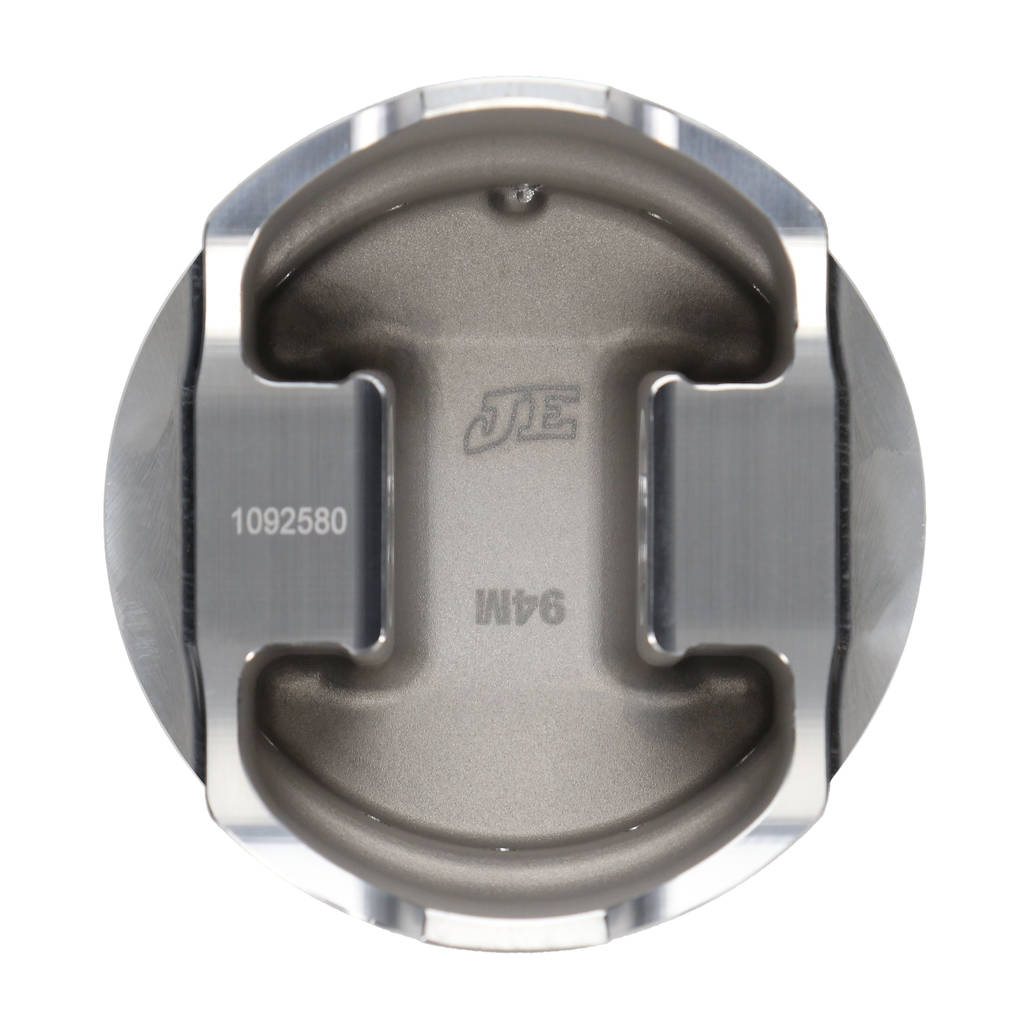

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-9

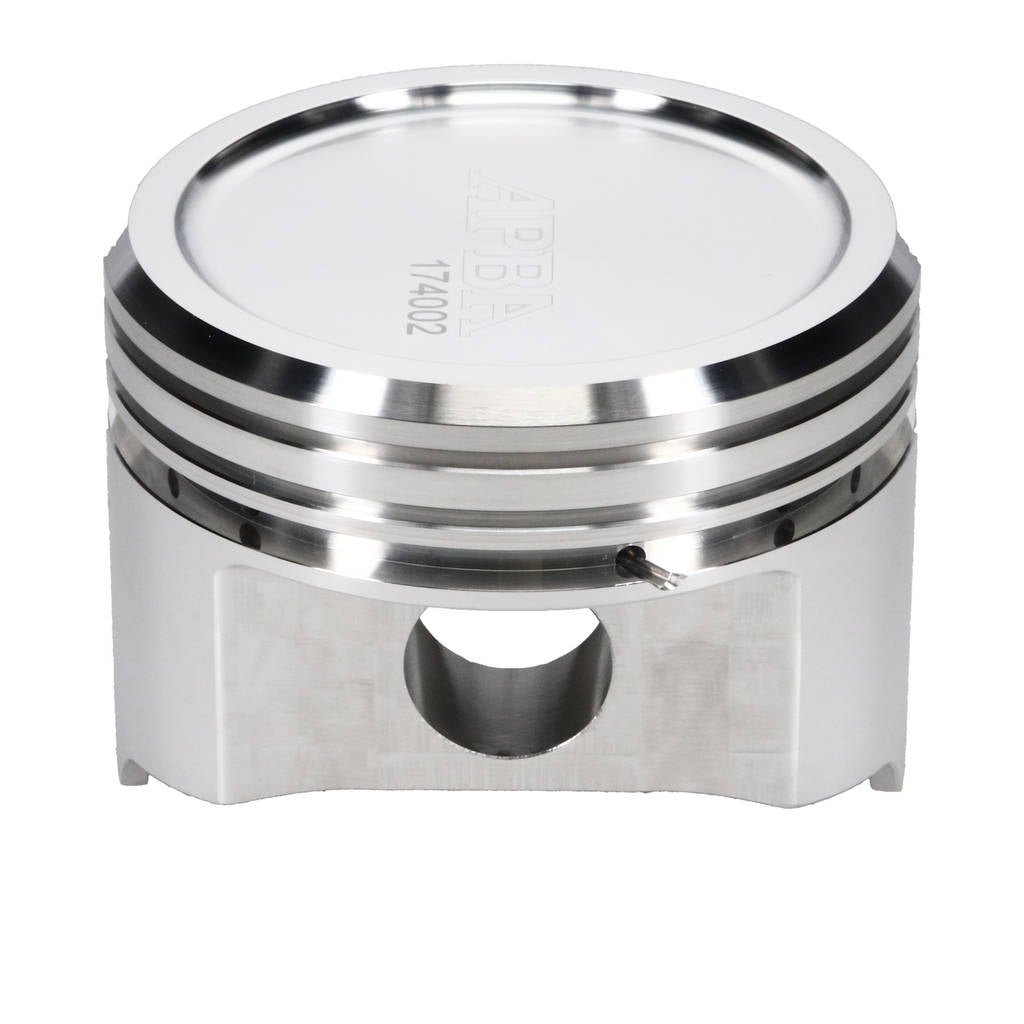

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine Photo-10

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine

€1.216,36

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 174002 GTIN: 193564036940
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 174002 Piston Kit (3.766 in. Bore, 1.560 in. CH, -12.00 CC) for CHEVROLET 305 Small Block Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

  • Forged from 4032 aluminum for tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
  • Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
  • Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

  • Piston Series: JE Pistons
  • Cylinder Head: STD CHEVROLET 23 DEG
  • Bore Diameter: 3.766 IN
  • Piston Head Type: Dish
  • Compression Height: 1.560 IN
  • Piston Volume: -12.00 CC
  • Piston Material: 2618
  • Piston Quantity: 8
  • Forging Type: Round
  • Piston Average Weight: 489 GR
  • Ring Set Included: No
  • Top Compression Ring Thickness: 0.0795 IN
  • Second Compression Ring Thickness: 0.08 IN
  • Oil Ring Thickness: 3/16 IN
  • Wrist Pin Outer Diameter: 0.927 IN
  • Wrist Pin Length: 2.850 IN
  • Wrist Pin Wall Thickness: 0.150 IN
  • Intake Depth: .215 IN
  • Intake Angle: 24
  • Exhaust Depth: .215
  • Exhaust Angle: 24
  • Top Groove Width: 0.07950 IN
  • 2nd Groove Width: 0.08000 IN
  • Oil Groove Width: 0.18800 IN
  • Product Type: Engine Piston Kit
  • Product Market: Domestic
  • Small Block
