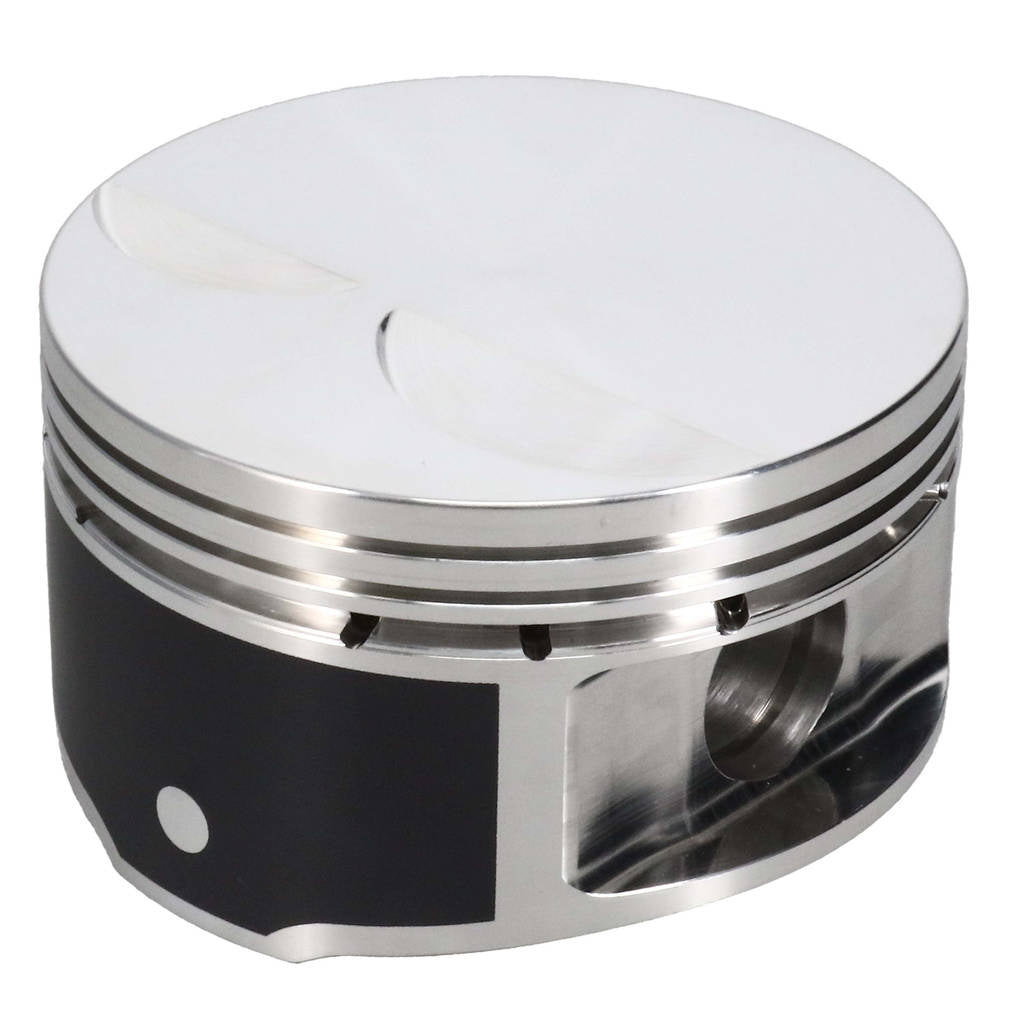

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-0

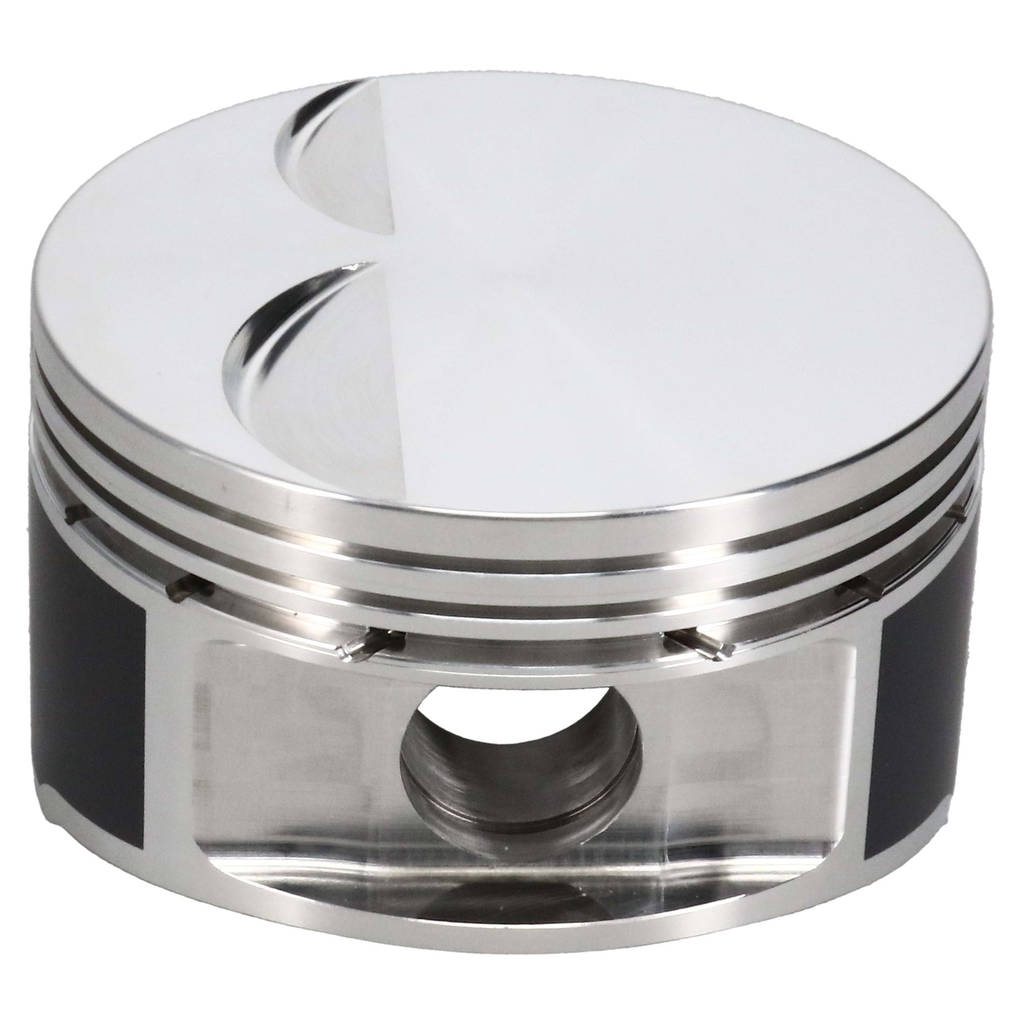

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-1

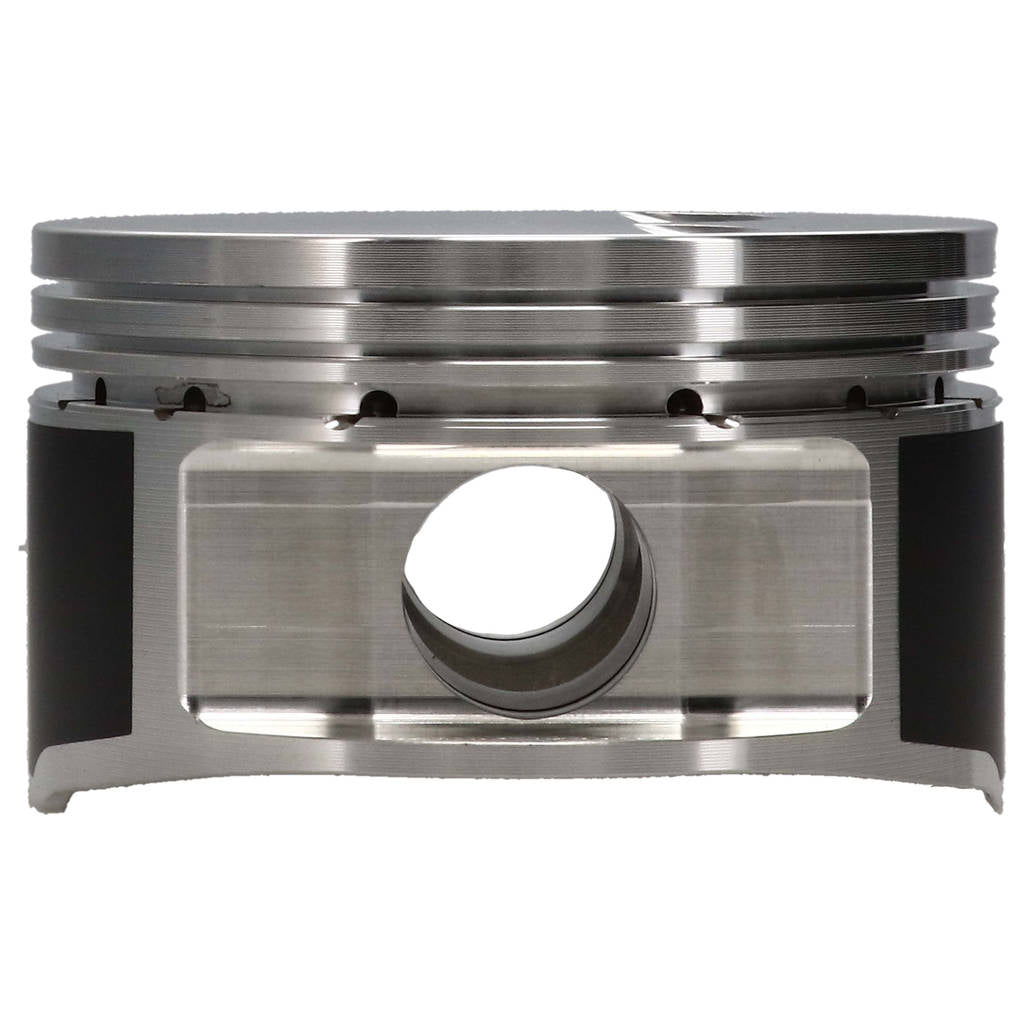

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-2

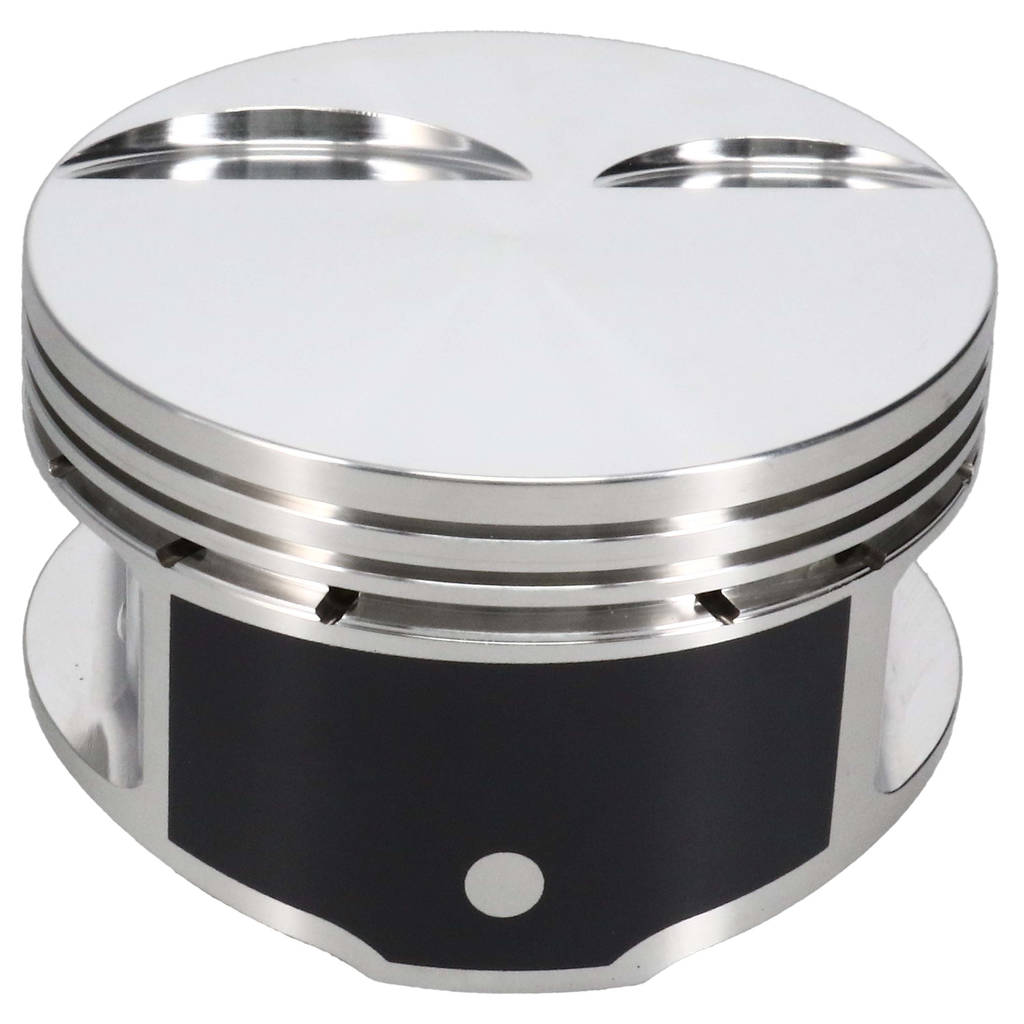

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-3

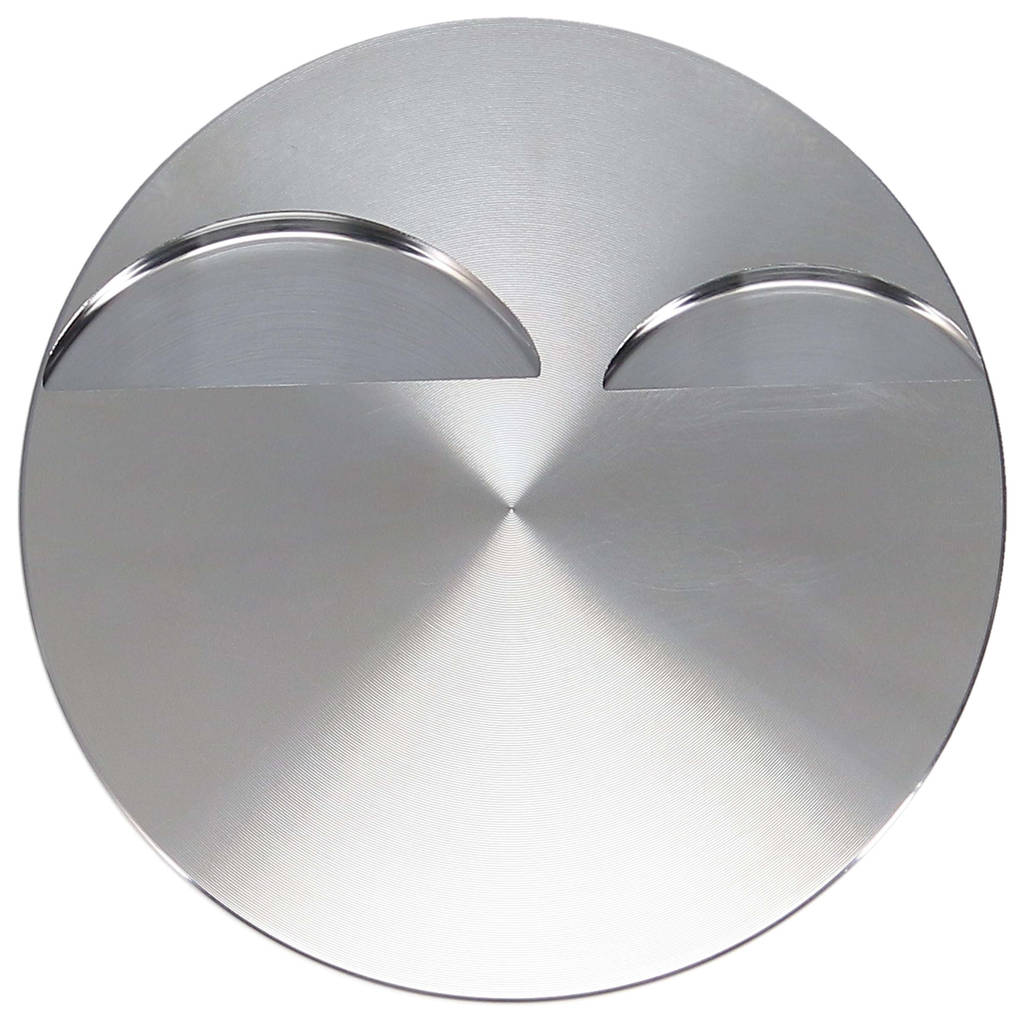

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-4

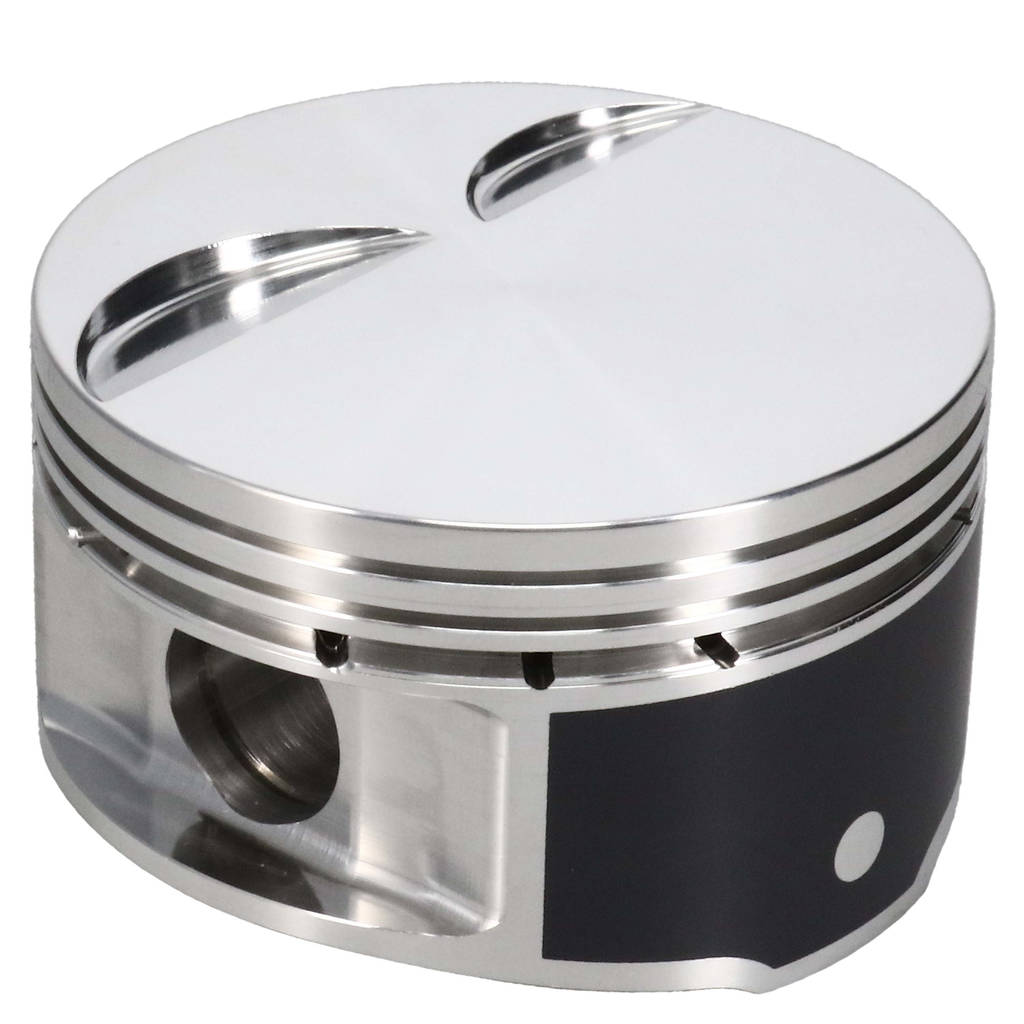

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-5

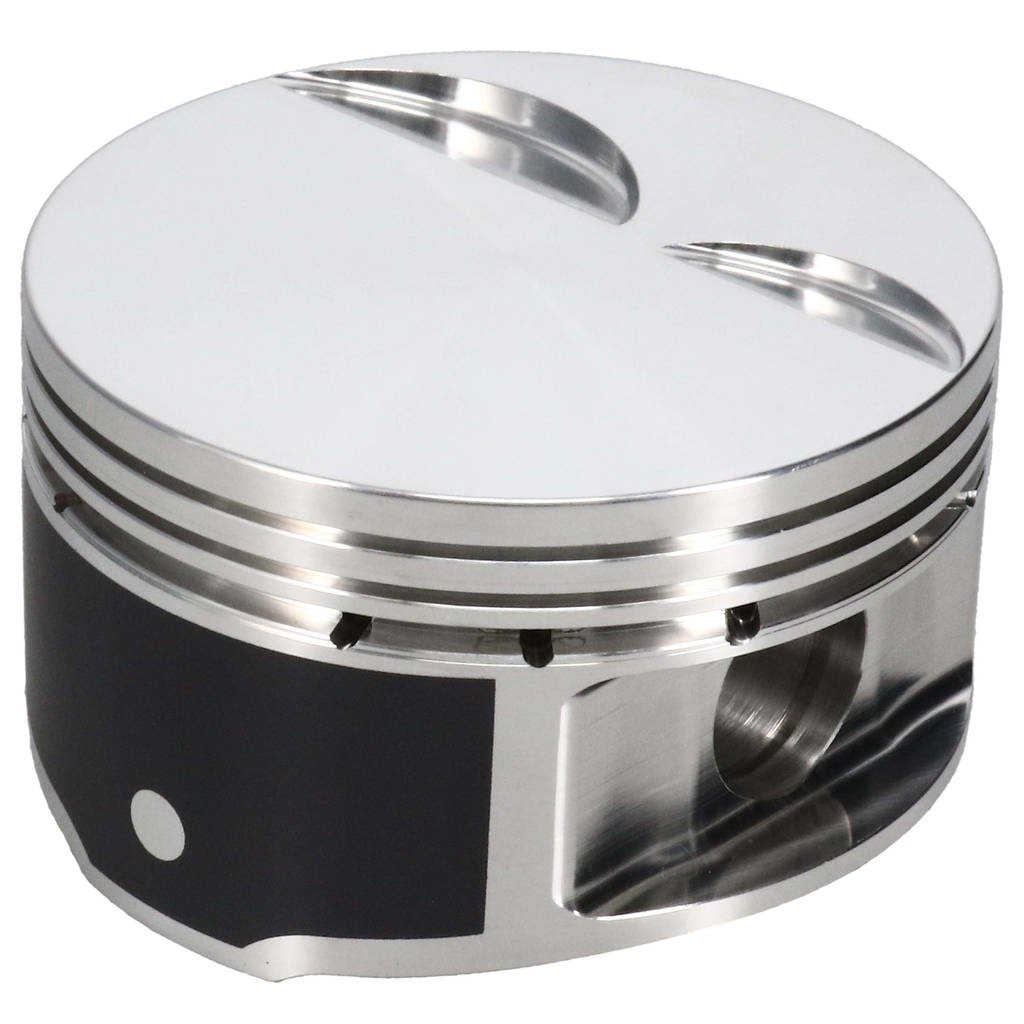

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-6

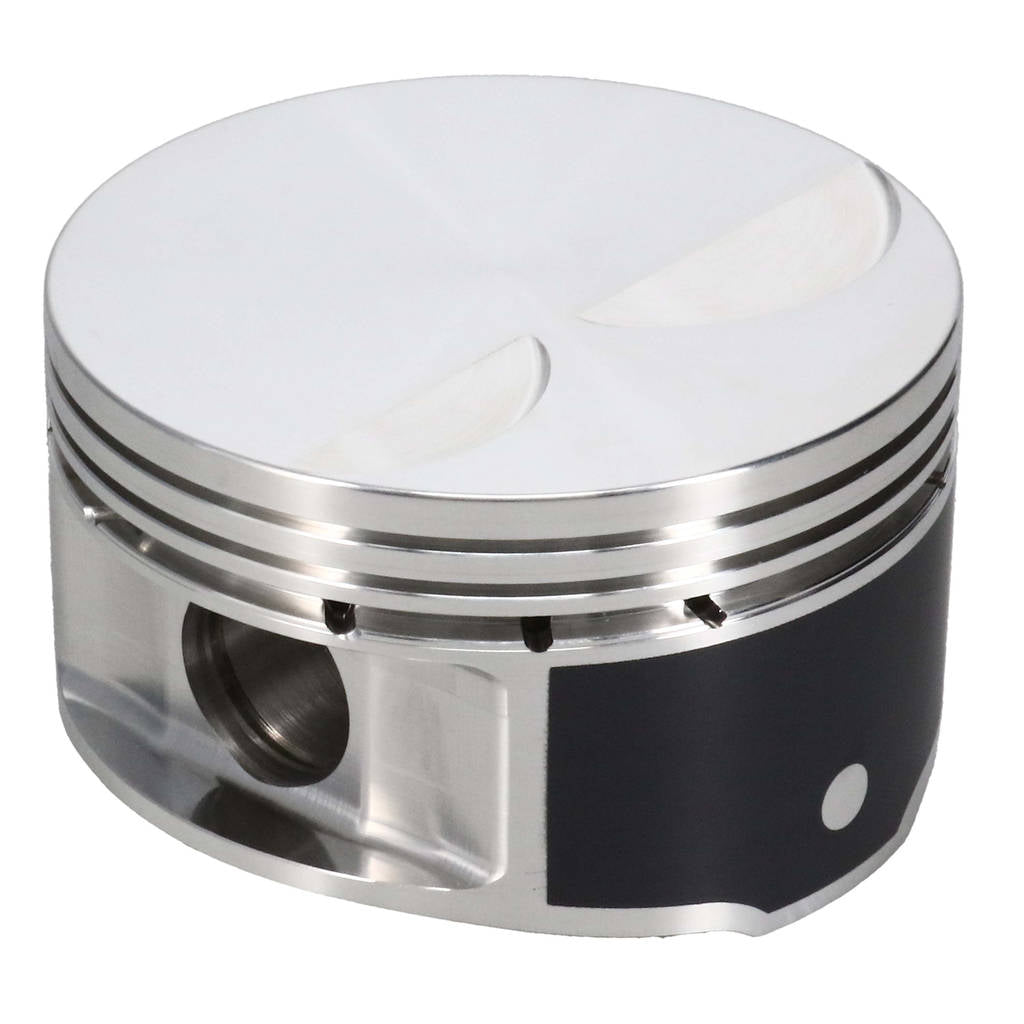

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-7

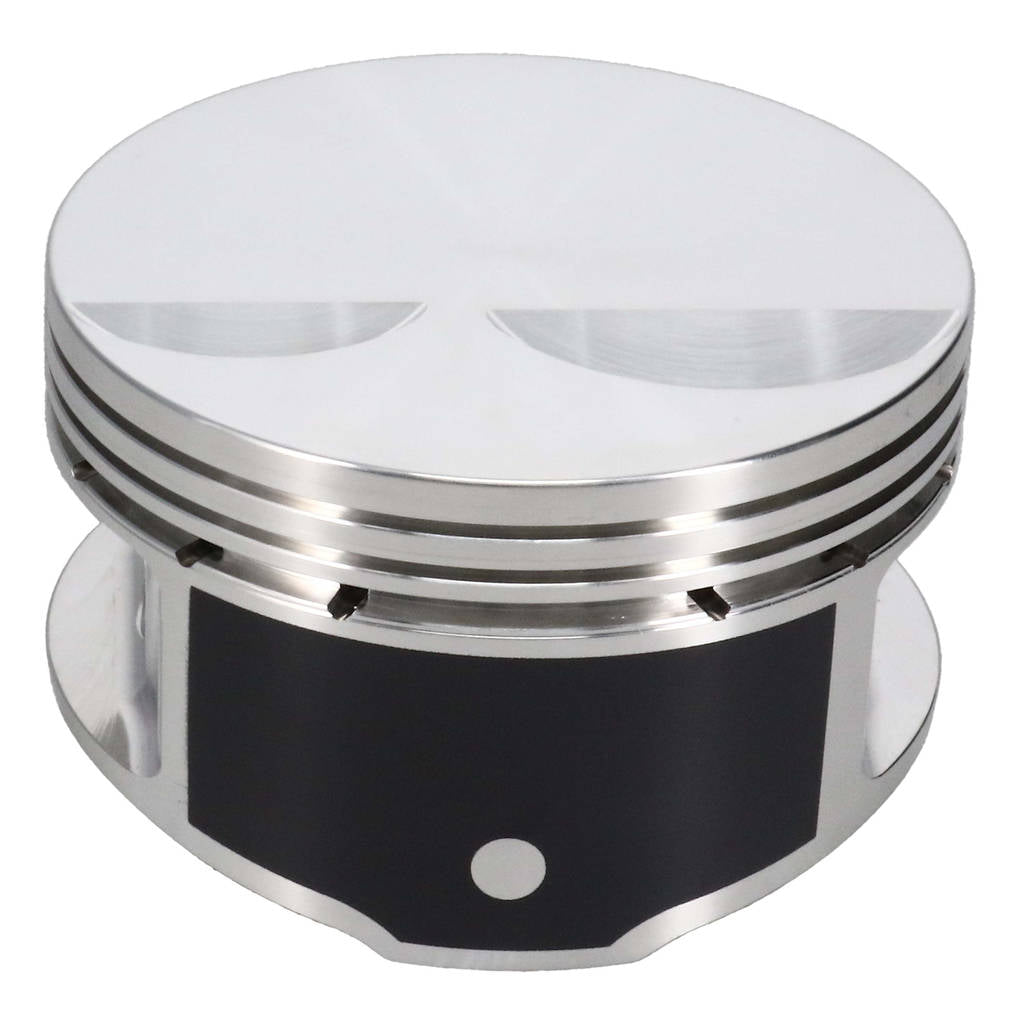

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-8

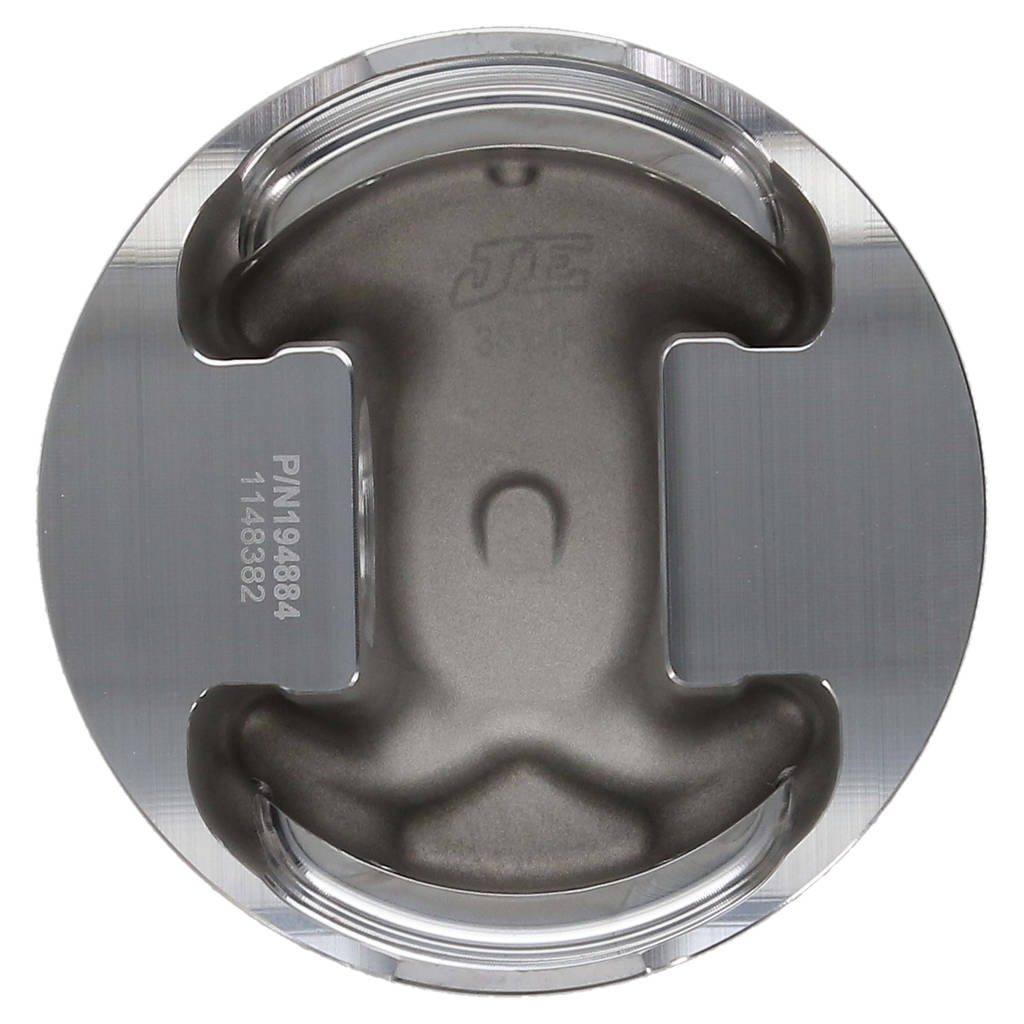

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-9

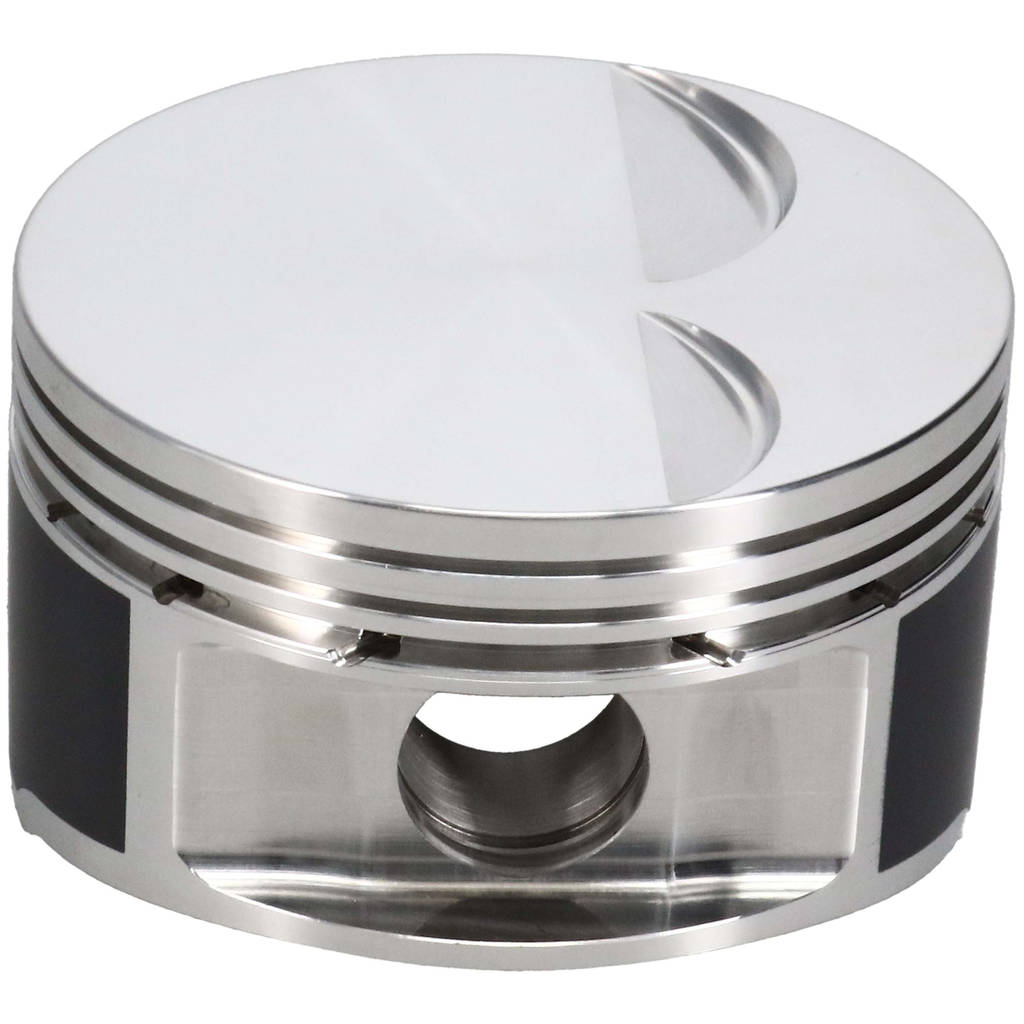

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine Photo-10

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine

€1.077,71

VAT included. Shipping calculated at checkout

JE PISTONS P/N: 194884 GTIN: 193564219718
Quantity:

This item is considered special order and is not available for immediate pickup or dispatch. Price and ETA may vary. Please note that no returns, cancellations, or refunds allowed on special orders.

Pickup available at Kelberg Warehouse Usually ready in 24 hours

JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine

Kelberg Warehouse

Pickup available, usually ready in 24 hours

Auf der Struth 4
53539 Kelberg
Germany

+491732982897

Description JE 194884 Piston Kit (3.905 in. Bore, 1.340 in. CH, -2.00 CC) for CHEVROLET LS Engine

JE Pistons applies over 75 years of experience to its range of premium forged racing pistons for European, import, and sport compact applications.

Engineered, forged, and machined 100% in the USA, these pistons are Designed for each specific engine and racing application to provide durability and performance.

  • Forged from 4032 aluminum for tensile strength and minimal thermal expansion
  • Proprietary Forged Side Relief design minimizes friction and power loss while reducing skirt width, weight, and Wrist Pin length
  • Application-dependent skirt coating reduces friction, piston skirt and cylinder Wall wear, and operating noise
  • Application-dependent accumulator groove reduces combustion gas pressure and Piston Ring flutter while improving ring seal

Specifications:

  • Piston Series: JE Pistons
  • Cylinder Head: LSX/L92 12 DEG
  • Bore Diameter: 3.905 IN
  • Piston Head Type: Flat
  • Compression Height: 1.340 IN
  • Piston Volume: -2.00 CC
  • Piston Material: 2618
  • Piston Quantity: 8
  • Forging Type: Round
  • Piston Average Weight: 450 GR
  • Ring Set Included: No
  • Top Compression Ring Thickness: 0.0600 IN
  • Second Compression Ring Thickness: 0.0600 IN
  • Oil Ring Thickness: 0.119 IN
  • Wrist Pin Outer Diameter: 0.945 IN
  • Wrist Pin Length: 2.500 IN
  • Wrist Pin Wall Thickness: 0.140 IN
  • Intake Depth: 0.310 IN
  • Intake Diameter: 2.250 IN
  • Intake Angle: 22.5
  • Exhaust Depth: S
  • Exhaust Diameter: 1.870
  • Exhaust Angle: 22.5
  • Top Groove Width: 0.06000 IN
  • 2nd Groove Width: 0.06000 IN
  • Oil Groove Width: 0.11900 IN
